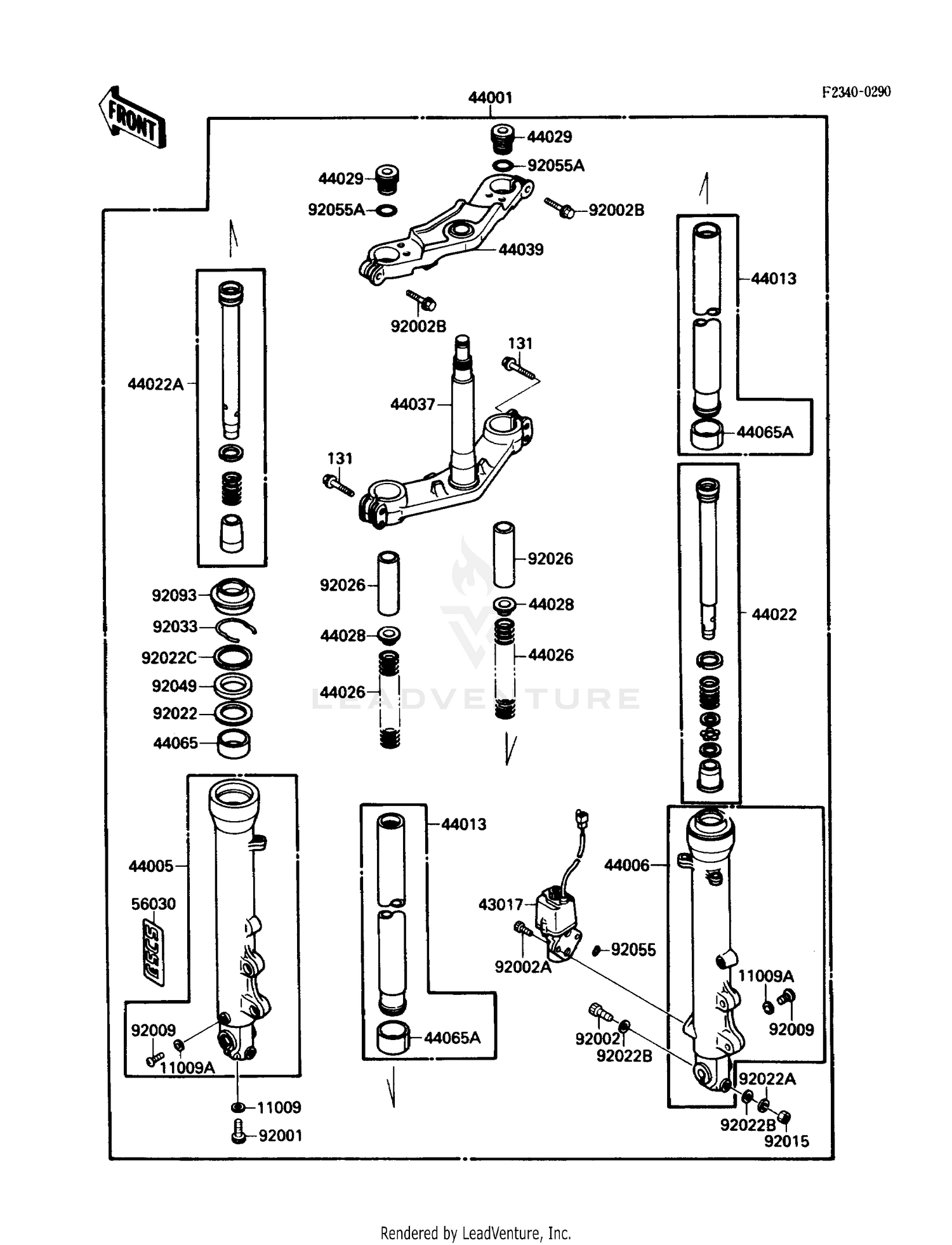

| Ref | Part Number | Description |
|---|
| 11009 |
11009-1127 |
GASKET,FORK CYLINDER BOLT Price: $5.18 |
| 11009A |
44045-002 |
GASKET,FORK DRAIN PLUG Price: $5.18 |
| 43017 |
43017-1067 |
VALVE-COMP-BRAKE Price: $467.14 |
| 44001 |
44001-1653 |
FORK-FRONT Price: $1,680.57 |
| 44005 |
44005-1259 |
PIPE-LEFT FORK OUTER Price: $396.91 |
| 44006 |
44006-1256 |
PIPE-RIGHT FORK OUTER Price: $396.91 |
| 44013 |
44013-1260 |
PIPE-FORK INNER Price: $310.63 |
| 44022 |
44022-1203 |
CYLINDER-FORK,RH Price: $125.23 |
| 44022A |
44022-1207 |
CYLINDER-FORK Price: $152.97 |
| 44026 |
44026-1363 |
SPRING-FRONT FORK Price: $64.63 |
| 44028 |
44028-1003 |
GUIDE-FORK SPRING Price: $11.28 |
| 44029 |
44029-1126 |
SEAT-FORK SPRING Price: $33.15 |
| 44037 |
44037-1213 |
HOLDER-FORK UNDER Price: $308.54 |
| 44039 |
44039-1150 |
HOLDER-FORK UPPER Price: $233.74 |
| 44065 |
44065-1091 |
BUSHING-FRONT FORK,OU This part replaces 44065-1012. Price: $25.96 |
| 44065A |
92028-1126 |
BUSHING,FORK PIPE This part replaces 44065-1057. Price: $49.26 |
| 56030 |
56030-1113 |
LABEL,ESCS This part replaces 56030-1095. Price: $5.75 |
| 92001 |
92001-1309 |
BOLT,FORK CYLINDER Price: $7.62 |
| 92002 |
92002-1163 |
BOLT,8X60 Price: $9.03 |
| 92002A |
92002-1166 |
BOLT,SOCKET,6X16 Price: $7.21 |
| 92002B |
92002-1476 |
BOLT,FLANGED,8X40 Price: $11.51 |
| 92009 |
220AA0406 |
SCREW-PAN CROS,4X6 This part replaces 92009-1324. Price: $1.67 |
| 92015 |
92015-1400 |
NUT,8MM Price: $5.46 |
| 92022 |
92022-1262 |
WASHER,FORK OUTER PIPE Price: $8.60 |
| 92022A |
92022-1552 |
WASHER,SPRING,8MM Price: $2.78 |
| 92022B |
92022-1554 |
WASHER,PLAIN,8MM Price: $4.86 |
| 92022C |
92022-1599 |
WASHER,FORK OUTER PIPE,UPP Price: $8.35 |
| 92026 |
92026-1258 |
SPACER,L=40 Price: $11.51 |
| 92033 |
92033-1047 |
RING-SNAP,FORK Price: $6.46 |
| 92049 |
92049-1178 |
SEAL-OIL,FORK Price: $29.51 |
| 92055 |
670B2014 |
O RING,14MM This part replaces 92055-1379. Price: $1.19 |
| 92055A |
92055-1380 |
RING-O,FORK TOP Price: $4.97 |
| 92093 |
92093-1162 |
SEAL,FORK Price: $30.01 |
