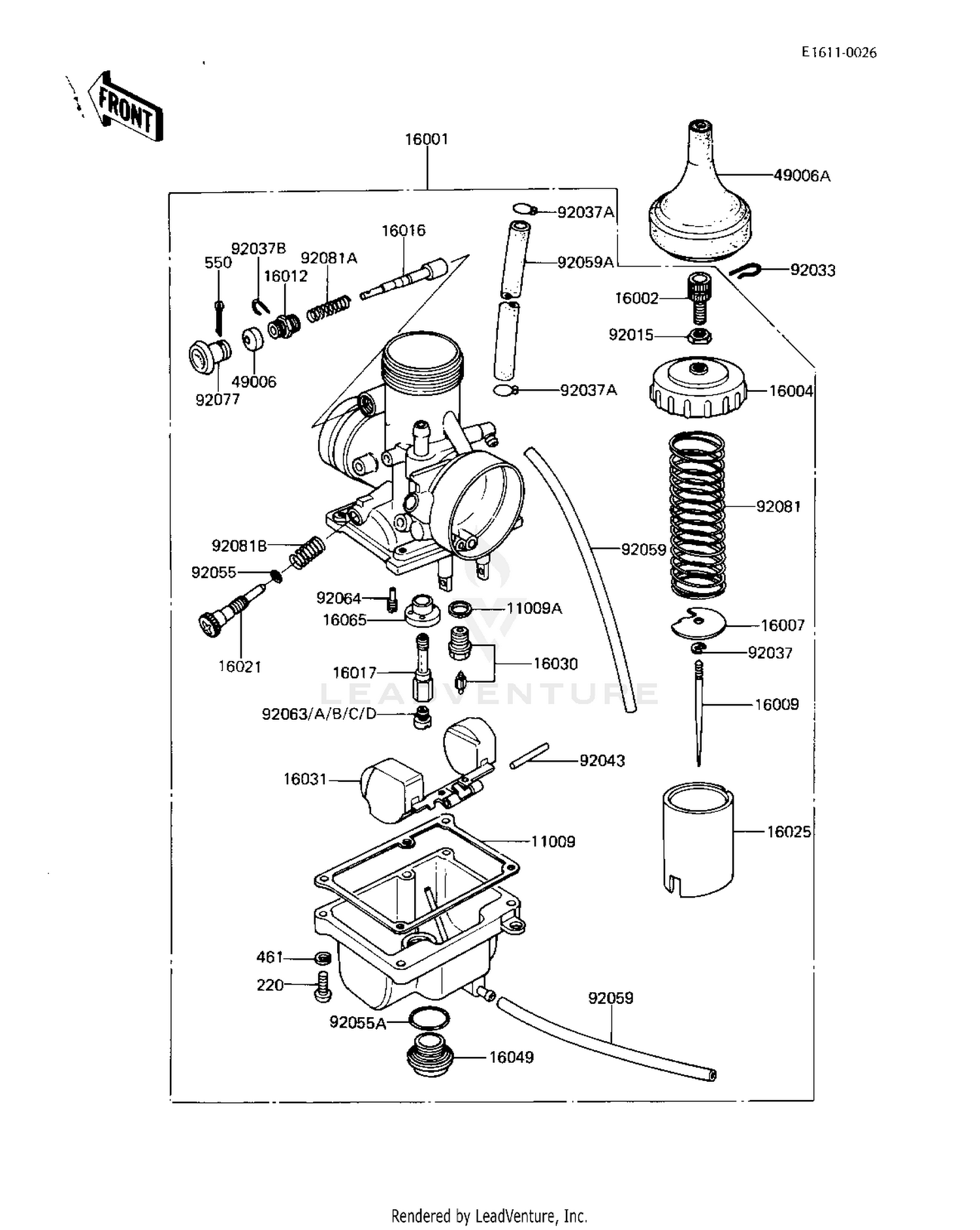

| Ref | Part Number | Description |
|---|
| 220 |
220AA0416 |
SCREW-PAN-CROS This part replaces 220B0416. Price: $1.78 |
| 461 |
461F0400 |
WASHER SPRING 4MM Price: $0.47 |
| 11009 |
11009-1147 |
GASKET,FLOAT CHAMBER Price: $10.19 |
| 11009A |
16029-004 |
GASKET,FLOAT VALVE SEAT Price: $3.89 |
| 16001 |
16001-1461 |
CARBURETOR Price: $134.97 |
| 16002 |
16002-011 |
ADJUSTER-CABLE Price: $13.97 |
| 16004 |
16004-025 |
CAP-CHAMBER Price: $33.28 |
| 16007 |
16007-023 |
SEAT-SPRING,THROTTLE VALVE Price: $10.19 |
| 16009 |
16009-1057 |
JET NEEDLE,5EJ25 Price: $51.24 |
| 16012 |
16012-021 |
CAP,STARTER PLUNGER Price: $15.94 |
| 16016 |
16016-1004 |
PLUNGER ASSY,STARTER Price: $58.54 |
| 16017 |
16017-1054 |
NEEDLE JET,0-4 Price: $32.32 |
| 16021 |
16021-1042 |
SCREW-THROTTLE STOP Price: $14.21 |
| 16025 |
16025-1028 |
VALVE,THROTTLE,C.A1.5 Price: $137.62 |
| 16030 |
16030-1004 |
FLOAT VALVE ASSY,2.6 Price: $50.64 |
| 16031 |
16031-1005 |
FLOAT Price: $53.59 |
| 16049 |
16049-1001 |
COVER-MAIN JET Price: $26.99 |
| 16065 |
16065-1020 |
HOLDER,JET NEEDLE Price: $18.54 |
| 49006 |
16036-012 |
CAP,STARTER PLUNGER Price: $11.46 |
| 49006A |
49006-1024 |
BOOT,CARBURETOR Price: $7.21 |
| 92015 |
16003-006 |
NUT,ADJUST LOCK Price: $7.34 |
| 92033 |
92036-018 |
RING-SNAP Price: $3.89 |
| 92037 |
16008-010 |
CIRCLIP Price: $9.21 |
| 92037A |
92037-072 |
CLAMP-PIPE Price: $7.22 |
| 92037B |
92037-1077 |
CIRCLIP Price: $5.73 |
| 92043 |
16032-008 |
PIN,FLOAT This part replaces 16032-003. Price: $6.57 |
| 92055 |
92055-044 |
RING-O Price: $10.38 |
| 92055A |
92055-1061 |
RING-O,MAIN JET COVER Price: $8.58 |
| 92059 |
92059-1755 |
TUBE,3X5X300 Price: $9.24 |
| 92059A |
92059-1023 |
HOSE,FUEL TAP DIAPHRA Price: $16.60 |
| 92063 |
92063-1103 |
JET-MAIN,#A130 This part replaces 92063-057. Price: $14.10 |
| 92063A |
92063-103 |
JET-MAIN NO 132.5R Price: $9.15 |
| 92063B |
92063-104 |
MAIN JET NO 135R Price: $16.36 |
| 92063C |
92063-1087 |
MAIN JET,#A137.5 Price: $22.19 |
| 92063D |
92063-116 |
MAIN JET,#140A Price: $16.36 |
| 92064 |
92064-1038 |
JET-PILOT,#25 Price: $19.96 |
| 92077 |
92077-1009 |
KNOB,STARTER PLUNGER Price: $8.72 |
| 92081 |
16006-023 |
SPRING,THROTTLE VALVE Price: $15.02 |
| 92081A |
16013-011 |
SPRING,STARTER PLUNGR Price: $8.11 |
| 92081B |
92081-1152 |
SPRING,THROTTLE ADJUST Price: $6.16 |
