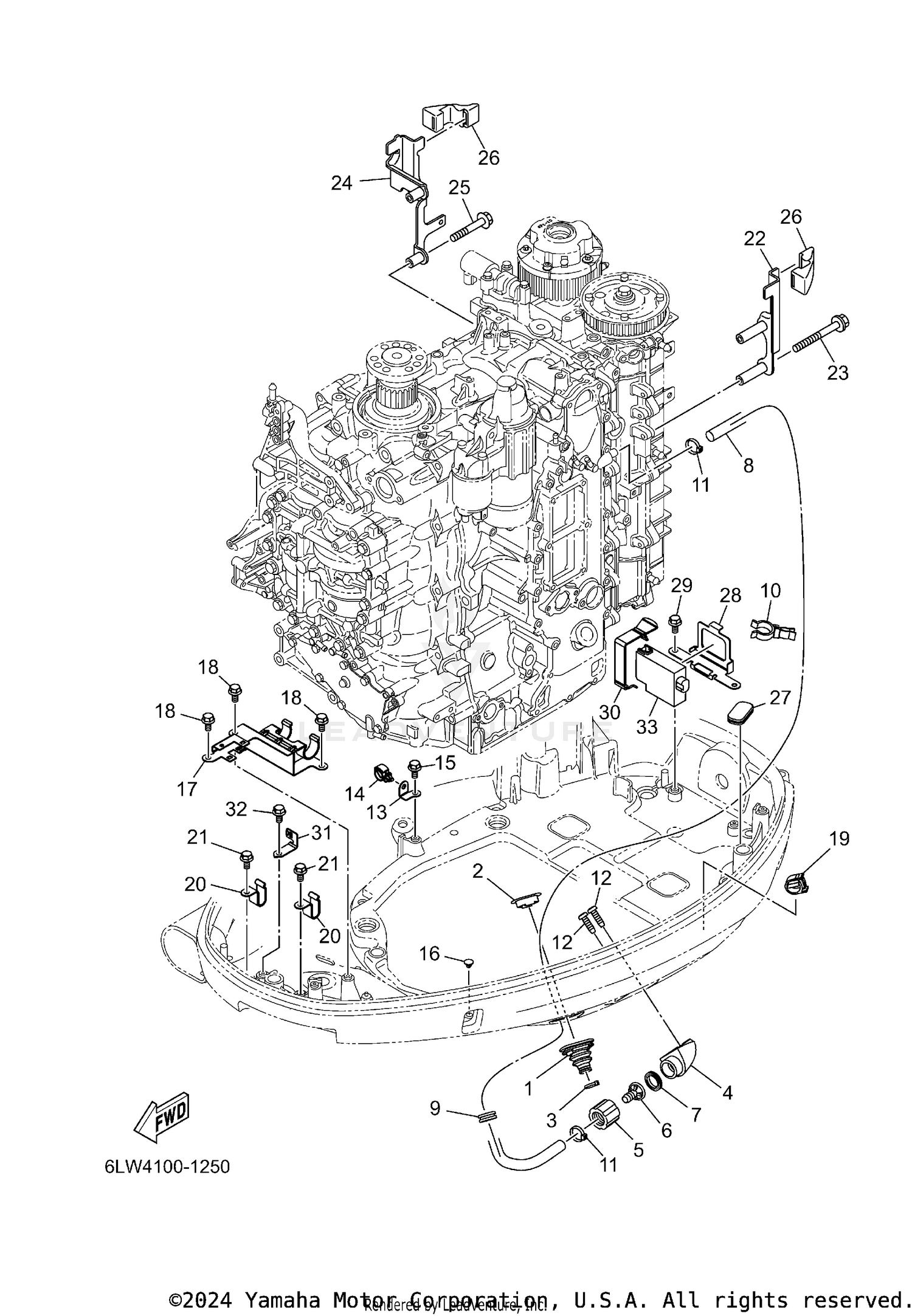

| Ref | Part Number | Description |
|---|
| 1 |
6BG-42724-01-00 |
GROMMET Price: $10.10 |
| 2 |
6BG-42384-00-00 |
SEAL, CAP Price: $6.60 |
| 3 |
90465-10098-00 |
CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 4 |
6AW-12572-00-00 |
ADAPTER Price: $15.55 |
| 5 |
6R3-12581-10-00 |
JOINT, HOSE 1 Price: Call Us |
| 6 |
6AW-12582-00-00 |
JOINT, HOSE 2 Price: $5.95 |
| 7 |
6R3-12583-10-00 |
GASKET, HOSE JOINT Price: $3.55 |
| 8 |
6LH-42541-00-00 |
PIPE 1 Price: $27.10 |
| 9 |
90480-19368-00 |
GROMMET This part replaces 90480-19031-00. Price: $4.75 |
| 10 |
90464-21256-00 |
CLAMP Price: $4.08 |
| 11 |
90465-10098-00 |
CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 12 |
97780-60520-00 |
SCREW, TAPPING Price: $4.49 |
| 13 |
6BG-42743-00-00 |
BRACKET Price: $7.60 |
| 14 |
90464-13249-00 |
CLAMP Price: $3.55 |
| 15 |
95D95-06012-00 |
BOLT, FLANGE DEEP Price: $0.95 |
| 16 |
90269-07003-00 |
RIVET Price: $0.85 |
| 17 |
6LW-8366G-00-00 |
BRACKET 3 Price: $50.90 |
| 18 |
95D95-06012-00 |
BOLT, FLANGE DEEP Price: $0.95 |
| 19 |
90464-18004-00 |
CLAMP Price: $4.40 |
| 20 |
90462-12013-00 |
CLAMP Price: $5.05 |
| 21 |
95D95-06012-00 |
BOLT, FLANGE DEEP Price: $0.95 |
| 22 |
6DA-11998-00-00 |
BRACKET 1 Price: $55.35 |
| 23 |
95D95-06065-00 |
BOLT, FLANGE DEEP Price: $1.40 |
| 24 |
6DA-11999-00-00 |
BRACKET 2 Price: $77.70 |
| 25 |
95D95-06040-00 |
BOLT, FLANGE DEEP Price: $1.10 |
| 26 |
6CB-42662-02-00 |
DAMPER Price: $6.40 |
| 27 |
6H4-42726-01-00 |
GROMMET Price: $10.65 |
| 28 |
6LW-42766-00-00 |
BRACKET 2 Price: $13.75 |
| 29 |
95D95-06012-00 |
BOLT, FLANGE DEEP Price: $0.95 |
| 30 |
6GR-82131-01-00 |
BAND, BATTERY Price: $8.70 |
| 31 |
63P-8366P-01-00 |
BRACKET 4 Price: $8.10 |
| 32 |
95D95-06012-00 |
BOLT, FLANGE DEEP Price: $0.95 |
