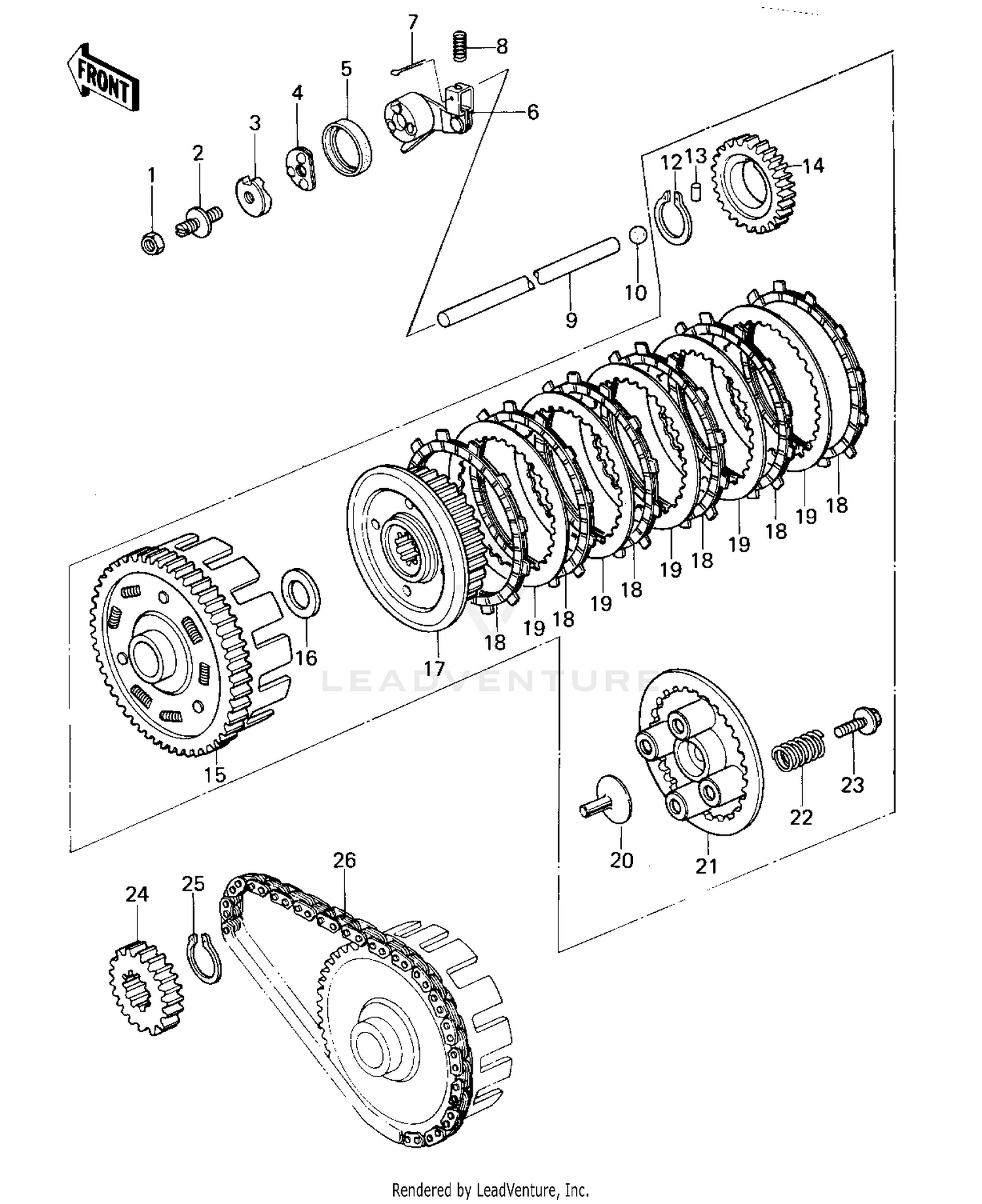

| Ref | Part Number | Description |
|---|
| 1 |
318AA0800 |
NUT-HEX-SMALL,8MM This part replaces 318B0800. Price: $0.59 |
| 2 |
92009-1009 |
SCREW,SLOTTED,8M/M Price: $4.99 |
| 3 |
13119-1003 |
CAM,RELEASE,CLUTCH Price: $16.96 |
| 4 |
14020-1091 |
RETAINER,CLUTCH RELEA This part replaces 92045-1001. Price: $11.60 |
| 5 |
92049-1003 |
OIL SEAL,CLUTCH RELES Price: $10.89 |
| 6 |
13102-1004 |
RELEASE, CLUTCH Price: $84.82 |
| 7 |
550AA1615 |
PIN-COTTER,1.6X15 This part replaces 550D1615. Price: $2.51 |
| 8 |
92081-1058 |
SPRING,CLUTCH RETURN Price: $9.25 |
| 9 |
13116-1017 |
ROD,PUSH,CLUTCH Price: $47.00 |
| 11 |
13081-1019 |
CLUTCH-ASSY Price: $480.49 |
| 12 |
480J3800 |
CIRCLIP, 38MM Price: $5.44 |
| 13 |
610A0606 |
PIN, DOWELL, 6X6 Price: $2.60 |
| 14 |
59051-1001 |
GEAR,OIL PUMP,34T Price: $49.87 |
| 15 |
13095-1008 |
HOUSING,CLUTCH Price: $310.84 |
| 16 |
92022-288 |
WASHER,CLUTCH THRUST Price: $12.83 |
| 17 |
13087-040 |
HUB,CLUTCH Price: $79.77 |
| 18 |
13088-1001 |
PLATE,FRICTION Price: $29.47 |
| 19 |
13089-026 |
PLATE-CLUTCH,T=2.0 Price: $12.80 |
| 20 |
13116-029 |
PUSHER,CLTCH SPRG PLT Price: $38.23 |
| 21 |
13187-1003 |
PLATE,CLUTCH SPRING Price: $51.10 |
| 22 |
92081-1033 |
SPRING,CLUTCH Price: $7.38 |
| 23 |
92001-1066 |
BOLT,FLANGED,6X18 Price: $6.22 |
| 24 |
13121-030 |
SPROCKET,PRIMARY Price: $58.06 |
| 25 |
480J3000 |
CIRCLIP-TYPE-C,30MM Price: $6.22 |
