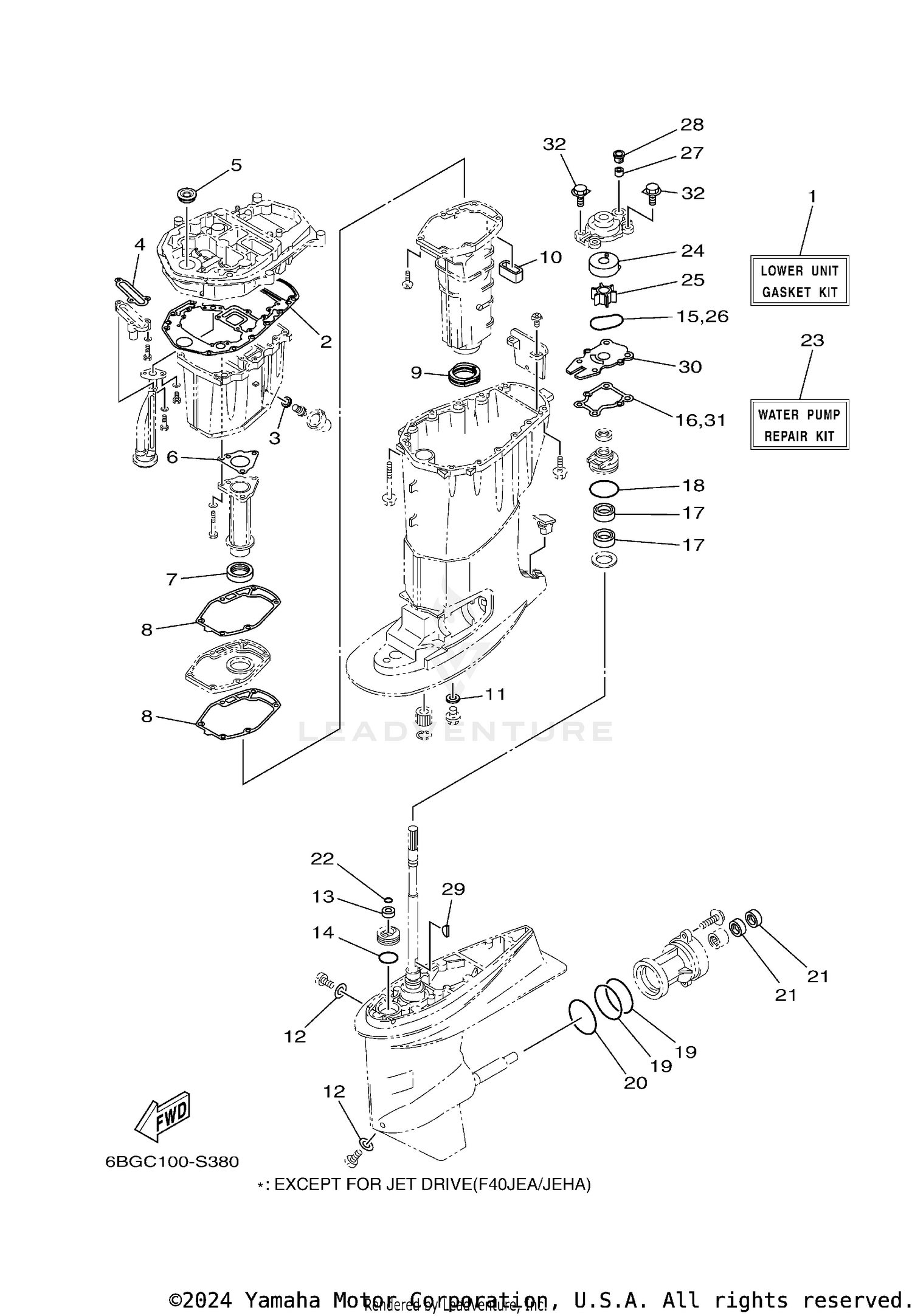

| Ref | Part Number | Description |
|---|
| 1 |
6BG-W0001-22-00 |
LOWER UNIT GASKET KIT Price: $181.15 |
| 2 |
69W-15312-01-00 |
GASKET, OIL PAN This part replaces 69W-15312-00-00. Price: $47.30 |
| 3 |
90430-14M09-00 |
GASKET Price: $2.55 |
| 4 |
62Y-13475-00-00 |
GASKET Price: $6.75 |
| 5 |
93103-16011-00 |
OIL SEAL Price: $23.80 |
| 6 |
64J-41133-10-00 |
GASKET, EXHAUST MANIFOLD 1 Price: $9.10 |
| 7 |
64J-46132-10-00 |
GASKET 1 Price: $64.90 |
| 8 |
6BG-41134-00-00 |
GASKET, EXHAUST MANIFOLD Price: $13.60 |
| 9 |
67C-45123-00-00 |
GASKET, MUFFLER Price: $15.55 |
| 11 |
90430-14M09-00 |
GASKET Price: $2.55 |
| 12 |
90430-08003-00 |
GASKET Price: $1.55 |
| 13 |
93106-09014-00 |
OIL SEAL Price: $8.40 |
| 14 |
93210-33MG4-00 |
O-RING Price: $6.25 |
| 15 |
93210-59MG7-00 |
O-RING Price: $7.70 |
| 16 |
63D-44316-00-00 |
GASKET, WATER PUMP Price: $6.15 |
| 17 |
93101-22M60-00 |
OIL SEAL Price: $7.30 |
| 18 |
93210-48001-00 |
O-RING Price: $6.25 |
| 19 |
93210-74775-00 |
O-RING This part replaces 93210-74MG5-00. Price: $4.75 |
| 20 |
93210-69MG6-00 |
O-RING Price: $7.70 |
| 21 |
93101-22067-00 |
OIL SEAL This part replaces 93101-22M00-00. Price: $7.55 |
| 22 |
93210-07540-00 |
O-RING This part replaces 93210-07003-00. Price: $7.49 |
| 23 |
6BG-W0078-01-00 |
WATER PUMP REPAIR KIT Price: $77.20 |
| 24 |
63D-44322-00-00 |
INSERT, CARTRIDGE Price: $17.15 |
| 25 |
6H4-44352-02-00 |
IMPELLER Price: $34.55 |
| 26 |
93210-59MG7-00 |
O-RING Price: $7.70 |
| 27 |
663-44366-01-00 |
DAMPER, WATER SEAL 2 Price: $6.30 |
| 28 |
63D-44312-00-00 |
COVER, WATER PUMP HOUSING Price: $4.70 |
| 29 |
90280-03M03-00 |
KEY, WOODRUFF Price: $7.60 |
| 30 |
63D-44323-00-00 |
OUTER PLATE, CARTRIDGE Price: $16.40 |
| 31 |
63D-44316-00-00 |
GASKET, WATER PUMP Price: $6.15 |
