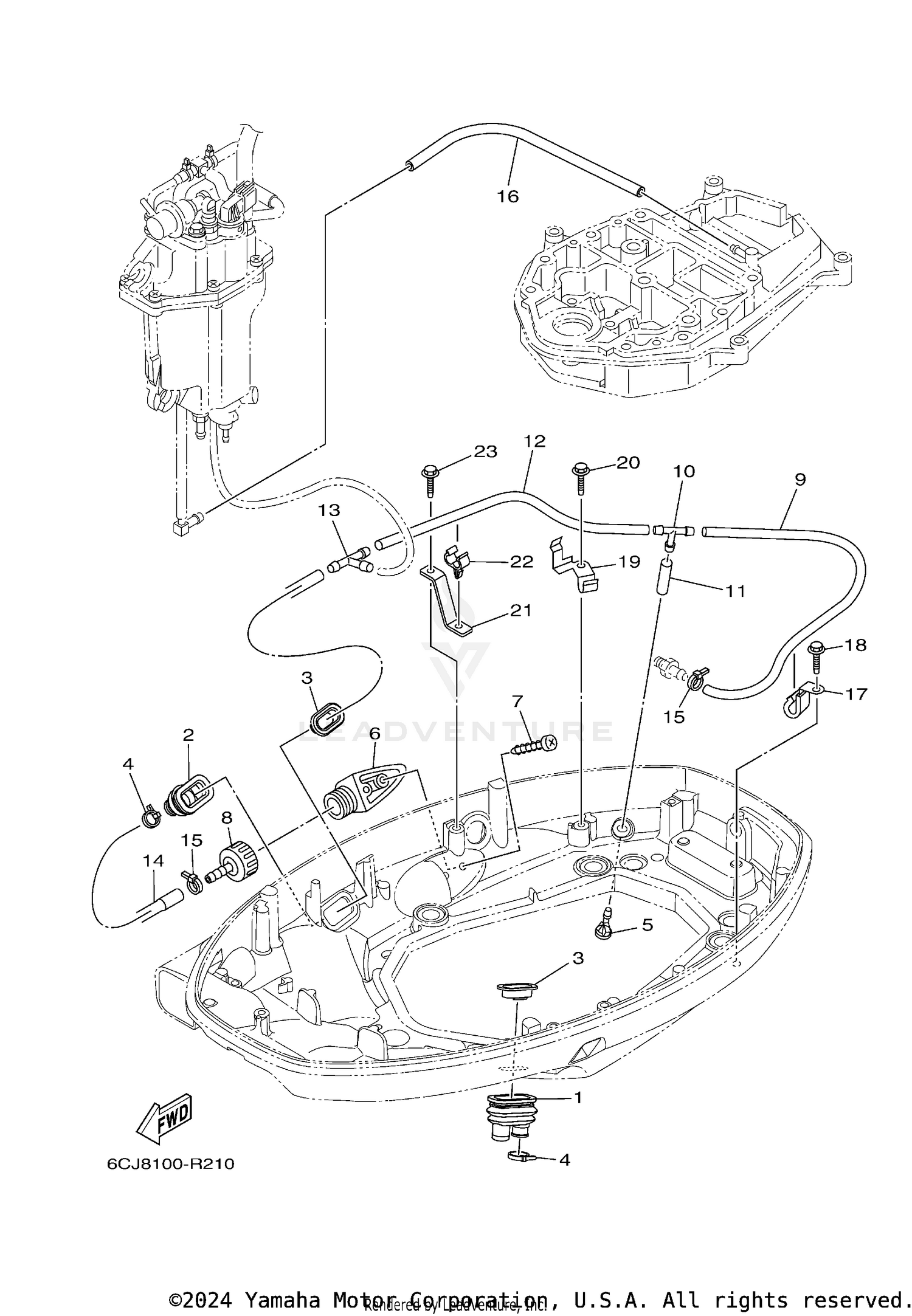

BOTTOM COWLING 2
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6H1-42726-31-00 | GROMMET Price: $3.55 |
| 2 | 6BG-42724-01-00 | GROMMET Price: $10.10 |
| 3 | 6BG-42384-00-00 | SEAL, CAP Price: $6.60 |
| 4 | 90465-10098-00 | CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 5 | 6BL-44391-00-00 | NIPPLE, HOSE Price: $5.05 |
| 6 | 6AW-12572-00-00 | ADAPTER Price: $15.55 |
| 7 | 97780-60520-00 | SCREW, TAPPING Price: $4.49 |
| 8 | 6R3-12580-00-00 | JOINT ASSY Price: $13.00 |
| 9 | 90445-09036-00 | HOSE (L400) Price: $5.55 |
| 10 | 688-24378-00-00 | PIPE, JOINT 3 Price: $16.50 |
| 11 | 5RB-24315-00-00 | PIPE 5 This part replaces 90445-09220-00. Price: $8.49 |
| 12 | 90445-090F6-00 | HOSE This part replaces 90445-096H2-00. Price: $34.99 |
| 13 | 688-24378-00-00 | PIPE, JOINT 3 Price: $16.50 |
| 14 | 6BG-12481-00-00 | PIPE 1 Price: $12.45 |
| 15 | 90465-10098-00 | CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 16 | 5RB-24315-00-00 | PIPE 5 This part replaces 90445-09304-00. Price: $8.49 |
| 17 | 90462-08067-00 | CLAMP Price: $13.75 |
| 18 | 90109-06M86-00 | BOLT Price: $1.81 |
| 19 | 6BG-24136-01-00 | CLAMP 2 Price: $24.05 |
| 20 | 90109-06M86-00 | BOLT Price: $1.81 |
| 21 | 6CJ-24135-00-00 | CLAMP 1 Price: $23.95 |
| 22 | 90464-09130-00 | CLAMP Price: $1.54 |
