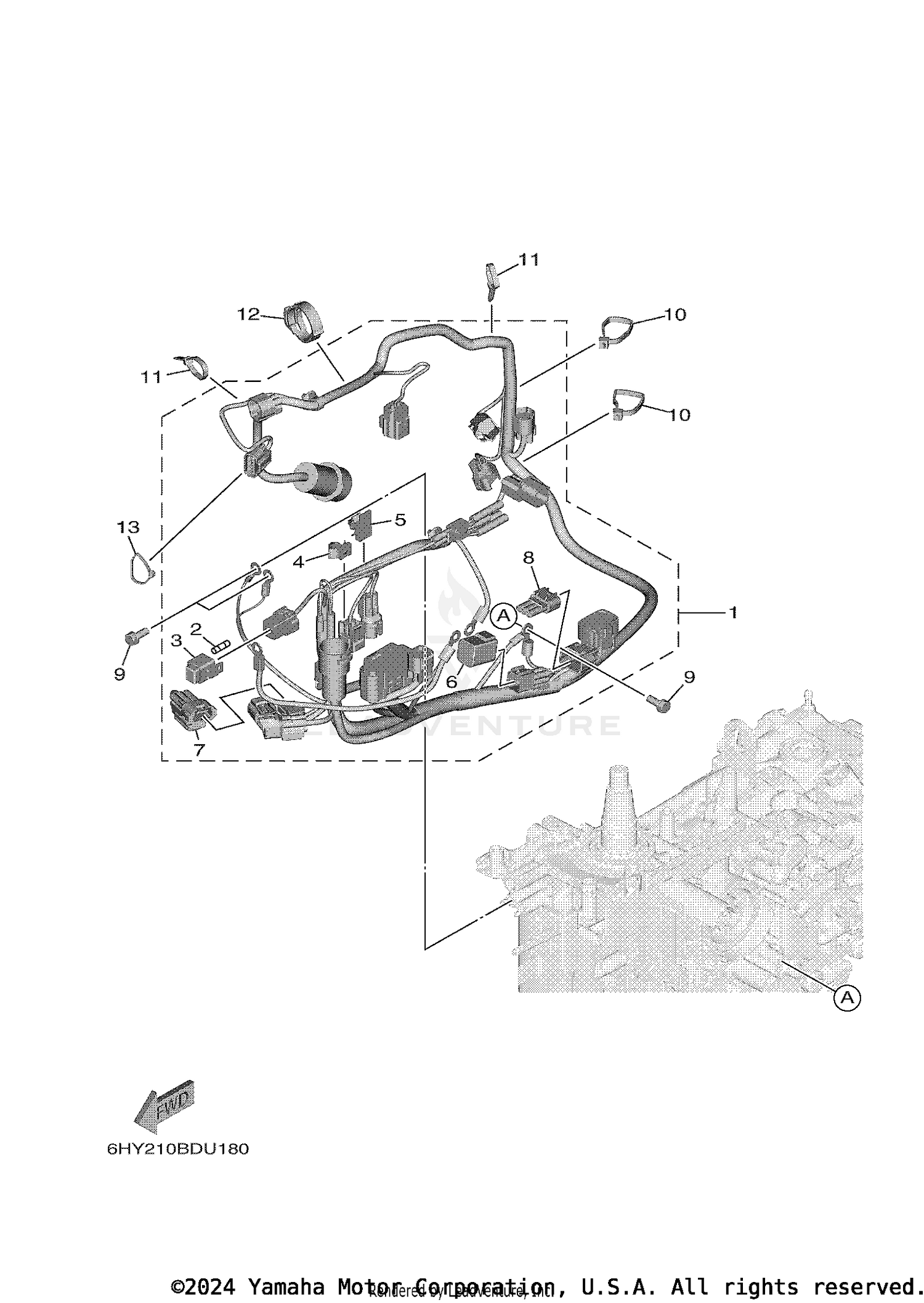

ELECTRICAL 4
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6FM-82590-53-00 | WIRE HARNESS ASSY Price: $290.60 |
| 1 | 6FM-82590-62-00 | WIRE HARNESS ASSY Price: $668.00 |
| 2 | 5JJ-82151-20-00 | FUSE (20A-BL) This part replaces 67F-82151-00-00. Price: $8.49 |
| 3 | 67F-8215B-10-00 | CAP (YELLOW) Price: $14.75 |
| 4 | 90464-09M47-00 | CLAMP Price: $4.30 |
| 5 | 90464-12002-00 | CLAMP Price: $4.75 |
| 6 | 6Y8-82582-11-00 | CAP 1 (4 PIN) Price: $7.00 |
| 8 | 6FM-82582-00-00 | CAP 1 (3P) Price: $8.30 |
| 9 | 97E95-06516-00 | BOLT, HEXAGON W/W Price: $4.20 |
| 10 | 90465-11M52-00 | CLAMP Price: $4.75 |
| 11 | 90465-13M11-00 | CLAMP Price: $8.49 |
| 12 | 90464-28003-00 | CLAMP Price: $4.46 |
