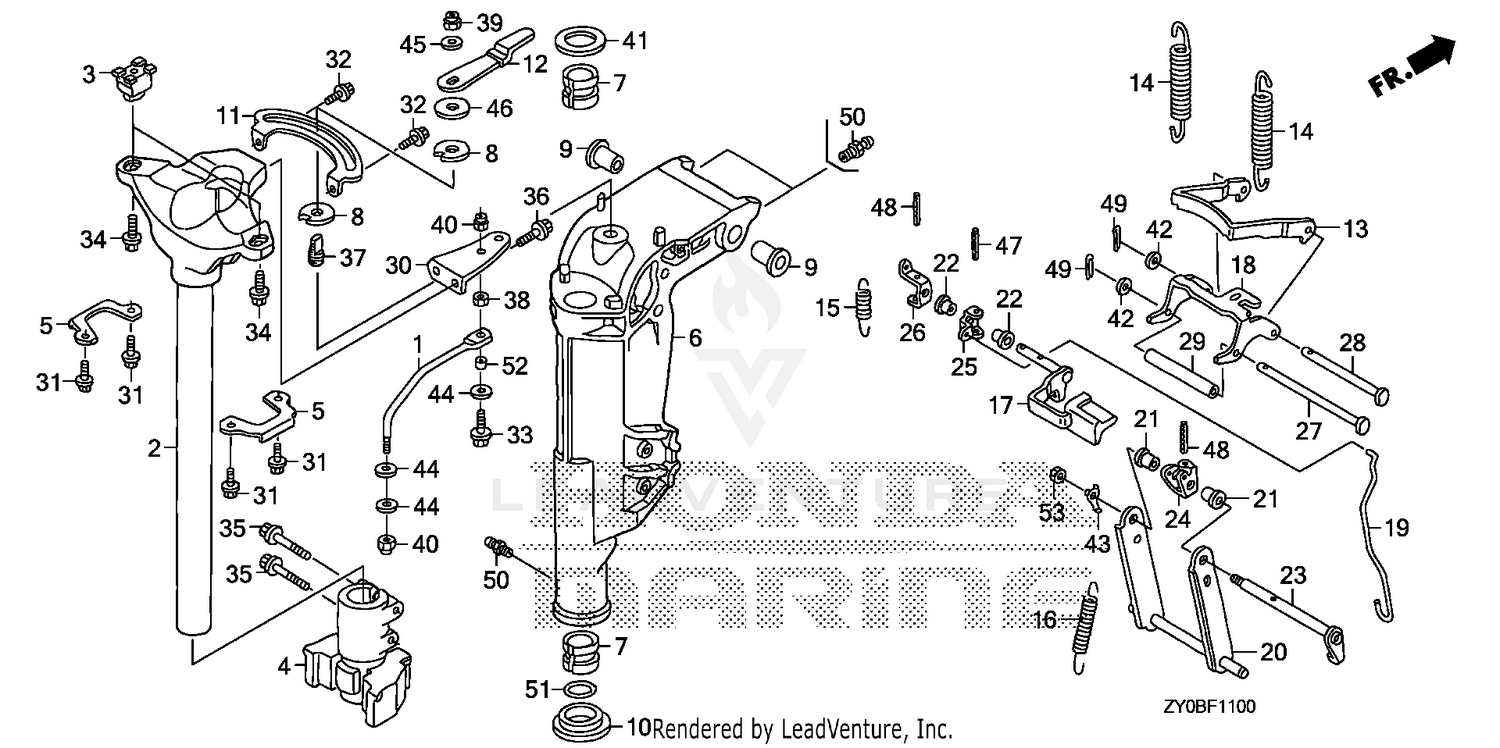

| Ref | Part Number | Description |
|---|
| 2 |
50100-ZW9-010 |
FRAME, MOUNTING (S) Price: $246.84 |
| 3 |
50150-ZY1-000 |
SEE PART DETAILS - PRI; RUBBER, MOUNTING (UPPER) Price: $27.46 |
| 4 |
50152-ZW9-000 |
RUBBER, MOUNTING (LOWER) Price: $110.14 |
| 5 |
50153-ZW9-000 |
COVER, MOUNTING RUBBER (UPPER) Price: $10.02 |
| 6 |
50201-ZW9-C00ZA |
SEE PART DETAILS - PRI; CASE, SWIVEL *NH282MU* (S) (OYSTER SILVER METALLIC-U) Price: $179.38 |
| 7 |
50211-ZW9-000 |
LINER, SWIVEL CASE Price: $5.36 |
| 8 |
50212-ZW9-003 |
SEE PART DETAILS - PRI; BLOCK, FRICTION Price: $14.88 |
| 9 |
50214-ZV4-003 |
BUSH, SWIVEL CASE Price: $8.64 |
| 10 |
50215-ZW9-000 |
COLLAR, SWIVEL CASE Price: $6.52 |
| 11 |
50218-ZW9-010 |
SEE PART DETAILS - PRI; PLATE, FRICTION Price: $12.86 |
| 12 |
50219-ZW9-010 |
SEE PART DETAILS - PRI; LEVER, FRICTION Price: $10.74 |
| 13 |
50512-ZW9-010 |
HOOK, REVERSE LOCK Price: $24.94 |
| 14 |
50514-ZW9-000 |
SPRING, REVERSE LOCK Price: $14.42 |
| 15 |
50515-ZW9-300 |
SPRING, TILT LEVER Price: $5.18 |
| 16 |
50516-ZV4-300 |
SPRING, TILT LINK Price: $6.38 |
| 17 |
50517-ZW9-010 |
SEE PART DETAILS - PRI; LEVER, TILT Price: $42.98 |
| 18 |
50518-ZW9-000 |
ARM, REVERSE LOCK Price: $28.42 |
| 19 |
50519-ZW9-010 |
ROD, RELEASE SWIVEL CASE Price: $8.66 |
| 20 |
50520-ZV4-010 |
SEE PART DETAILS - PRI; ARM, TILT Price: $80.12 |
| 21 |
50521-ZV1-000 |
BUSH, TILT LEVER Price: $8.06 |
| 22 |
50522-ZV4-000 |
BUSH, TILT LEVER Price: $6.86 |
| 23 |
50525-ZV4-010 |
SEE PART DETAILS - PRI; SHAFT, TILT Price: $30.34 |
| 24 |
50526-ZV4-000 |
BRACKET, TILT SHAFT Price: $11.80 |
| 25 |
50527-ZV4-010 |
BRACKET, RELEASE ROD Price: $6.82 |
| 26 |
50528-ZV4-010 |
BRACKET, TILT LEVER Price: $6.82 |
| 27 |
50531-ZV7-000 |
SHAFT, REVERSE LOCK (A) Price: $12.80 |
| 28 |
50532-ZV4-000 |
SHAFT, REVERSE LOCK (B) Price: $9.28 |
| 29 |
50533-ZW9-000 |
COLLAR, REVERSE LOCK Price: $14.16 |
| 31 |
90102-ZW9-000 |
BOLT, FLANGE (6X12) Use from Frame SN 1005249. Price: $2.90 |
| 32 |
90103-ZW9-010 |
BOLT, FLANGE (6X12) Price: $2.80 |
| 34 |
90154-ZW9-000 |
BOLT, FLANGE (10X25) Price: $4.20 |
| 35 |
90159-ZW9-000 |
BOLT, FLANGE (8X45) Price: $5.02 |
| 37 |
90162-ZW9-000 |
BOLT, STUD (8X26) Price: $6.58 |
| 39 |
90305-ZW9-000 |
NUT, SELF-LOCK (8MM) Price: $6.72 |
| 41 |
90454-881-000 |
WASHER, THRUST Price: $3.86 |
| 42 |
90504-921-010 |
WASHER, PLAIN (6MM) Use from Frame SN 4800713. Price: $1.74 |
| 43 |
90505-ZV4-000 |
WASHER, LOCK Price: $4.08 |
| 45 |
90514-921-000 |
WASHER (8MM) Price: $1.36 |
| 46 |
90517-ZW9-000 |
WASHER, NYLON (8MM) Price: $1.94 |
| 47 |
90751-ZV4-C21 |
SEE PART DETAILS - PRI; PIN, SPRING (3.0X22) Price: $3.70 |
| 48 |
90752-ZV4-C21 |
SEE PART DETAILS - PRI; PIN, SPRING (3.0X25) Price: $3.70 |
| 49 |
90759-ZV1-000 |
SEE PART DETAILS - PRI; PIN, SPLIT (2.0) Price: $1.94 |
| 50 |
90951-ZV7-010 |
SEE PART DETAILS - PRI; NIPPLE, GREASE Price: $2.60 |
| 51 |
91361-VD6-003 |
O-RING (34X2.4) Price: $3.16 |
| 800 |
861805547 |
Spring Support Kit This part replaces 503195351. Price: $10.99 |
| 810 |
861805547 |
Spring Support Kit This part replaces 503190754. Price: $10.99 |
| 830 |
205082554 |
Socket Screw M8 X 25 Price: $2.19 |
| 840 |
233281466 |
Elastic Flange Nut M8 Price: $1.09 |
| 3000a |
503193218 |
Bushing Price: $12.58 |
| 3000b |
503191555 |
Swivel Bushing Price: $7.83 |
| 3000c |
503191565 |
LH Cam Adjuster Price: $16.99 |
| 3000d |
503191566 |
RH Cam Adjuster Price: $16.99 |
| 3000e |
293370013 |
E-Circlip Price: $0.67 |
| 3000f |
503194035 |
Radial Joint Price: $72.99 |
| 3000g |
293370114 |
Inner Circlip Price: $4.69 |
| 3000h |
503193699 |
Pivot Arm Price: $134.99 |
| 3000k |
207084056 |
Hex. Screw M8 X 1.25 X 40 Price: $3.29 |
| 3000m |
233281466 |
Elastic Flange Nut M8 Price: $1.09 |
| 3000n |
408200700 |
Grease Fitting Price: $3.59 |
| 3000p |
503192494 |
Washer Price: $3.29 |
| 3000q |
503191556 |
Extended Bushing Price: $7.83 |
| 3010 |
503193003 |
Black, LH Spring Square Price: $92.99 |
| 3020 |
503193002 |
Black, RH Spring Square Price: $92.99 |
| 3070a |
503193548 |
Ball Bearing Price: $17.99 |
| 3070b |
415129780 |
Retaining Ring Price: $16.49 |
| 3120 |
503193441 |
Upper Shaft Price: $39.99 |
| 3130 |
503194970 |
Bushing Price: $15.79 |
| 3140 |
503193439 |
Retaining Ring Price: $16.99 |
| 3170 |
503192496 |
Washer Price: $0.79 |
| 3180 |
250000605 |
Hex. Screw S.Grip M10 X 55 Price: $8.29 |
| 3190 |
503189156 |
Pivot Arm Axle Price: $21.99 |
| 3200 |
503192494 |
Washer Price: $3.29 |
| 3210 |
503192440 |
Bolt M8 X 248mm Price: $31.99 |
| 3220 |
233281466 |
Elastic Flange Nut M8 Price: $1.09 |
| 4000 |
503192900 |
Acceleration Link Rod Price: $28.49 |
| 4030 |
503193993 |
Axle Price: $17.49 |
| 4060 |
503192494 |
Washer Price: $3.29 |
| 4070 |
503193372 |
Screw M8 X 90 Price: $4.49 |
| 4080 |
233281466 |
Elastic Flange Nut M8 Price: $1.09 |
| 4090 |
503193993 |
Axle Price: $17.49 |
| 4100 |
503192494 |
Washer Price: $3.29 |
| 4120 |
503193372 |
Screw M8 X 90 Price: $4.49 |
| 4130 |
233281466 |
Elastic Flange Nut M8 Price: $1.09 |
| 5570 |
503196509 |
Axle Shock Absorber This part replaces 503192606. Price: $12.58 |
| 5580 |
505072663 |
Leg Cushion Price: $9.23 |
| 5590 |
207684044 |
Hex. Flange Screw M8 X 40 Price: $1.49 |
