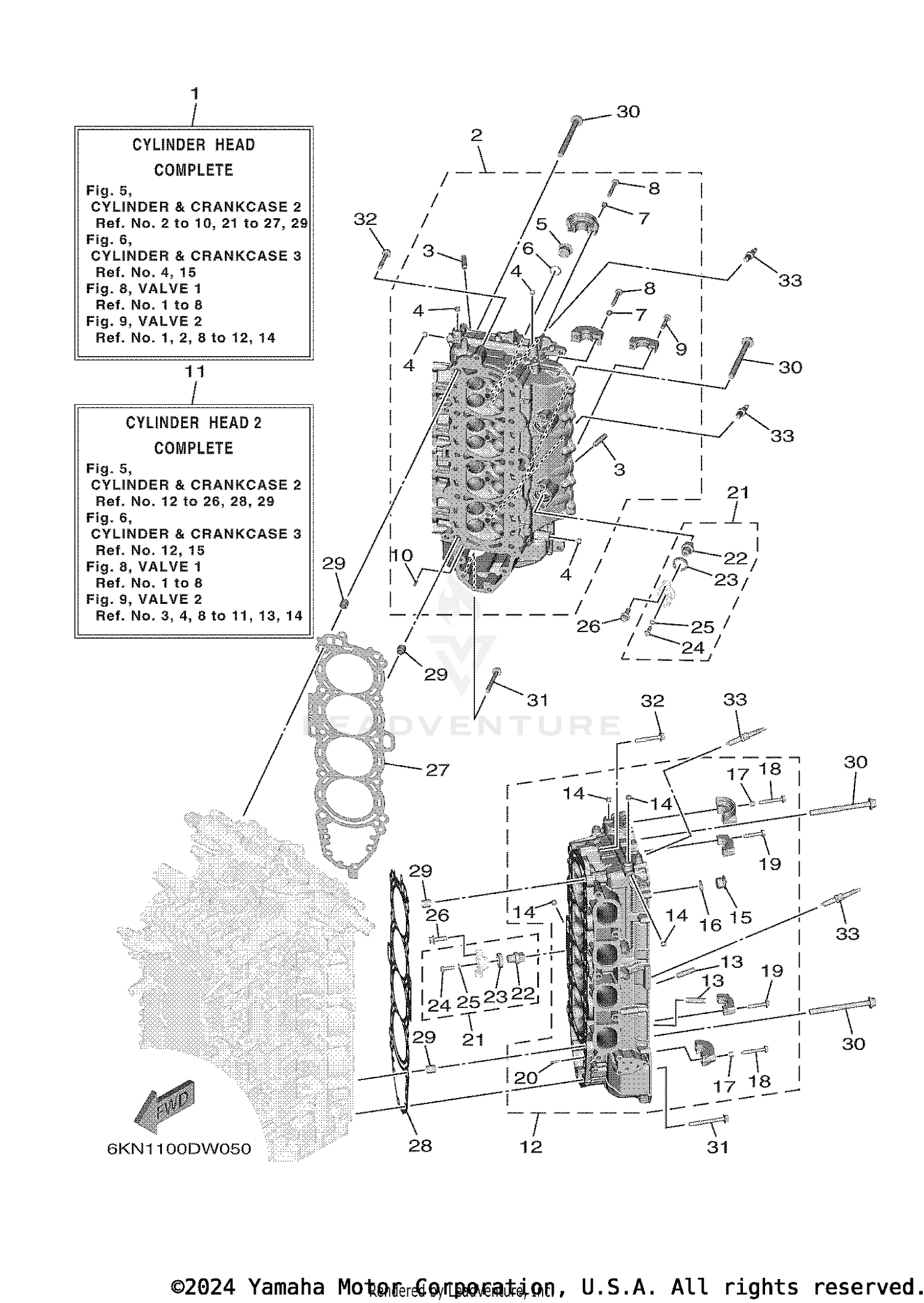

| Ref | Part Number | Description |
|---|
| 1 |
6KN-W009A-01-9S |
CYLINDER HEAD COMPLETE Price: $9,539.70 |
| 2 |
6KN-11110-00-00 |
CYLINDER HEAD ASSY Price: $3,068.75 |
| 3 |
6DA-11133-10-00 |
GUIDE, VALVE 1 Price: $38.45 |
| 4 |
90344-51008-00 |
PLUG, TAPER SCREW This part replaces 90344-51019-00. Price: $3.05 |
| 5 |
90340-97002-00 |
PLUG, STRAIGHT SCREW Price: $7.40 |
| 6 |
93210-18322-00 |
O-RING Price: $5.60 |
| 7 |
91809-08006-00 |
PIN, DOWEL Price: $5.55 |
| 8 |
90119-07235-00 |
BOLT/WASHER-CAM CAPS Price: $3.65 |
| 9 |
90119-07234-00 |
BOLT, WITH WASHER Price: $3.20 |
| 10 |
91690-40018-00 |
PIN, SPRING Price: $3.15 |
| 11 |
6KN-W009C-01-9S |
CYLINDER HEAD 2 COMPLETE Price: $9,536.45 |
| 12 |
6KN-11120-00-00 |
CYLINDER HEAD ASSY Price: $3,464.05 |
| 13 |
6DA-11133-10-00 |
GUIDE, VALVE 1 Price: $38.45 |
| 14 |
90344-51008-00 |
PLUG, TAPER SCREW This part replaces 90344-51019-00. Price: $3.05 |
| 15 |
90340-97002-00 |
PLUG, STRAIGHT SCREW Price: $7.40 |
| 16 |
93210-18322-00 |
O-RING Price: $5.60 |
| 17 |
91809-08006-00 |
PIN, DOWEL Price: $5.55 |
| 18 |
90119-07235-00 |
BOLT/WASHER-CAM CAPS Price: $3.65 |
| 19 |
90119-07234-00 |
BOLT, WITH WASHER Price: $3.20 |
| 20 |
91690-40018-00 |
PIN, SPRING Price: $3.15 |
| 21 |
6ML-11301-00-00 |
ANODE COVER ASSY Price: $56.30 |
| 23 |
67F-11328-01-00 |
GROMMET, ANODE Price: $3.80 |
| 24 |
90105-06M07-00 |
BOLT, FLANGE Price: $2.30 |
| 25 |
90430-06M03-00 |
GASKET Price: $3.65 |
| 26 |
95D95-08025-00 |
BOLT, FLANGE DEEP Price: $1.90 |
| 27 |
6KN-11181-00-00 |
GASKET, CYLINDER HEAD 1 Price: $176.05 |
| 28 |
6KN-11182-00-00 |
GASKET, CYLINDER HEAD 2 Price: $176.05 |
| 29 |
90387-11005-00 |
COLLAR Price: $7.70 |
| 30 |
90149-11001-00 |
SCREW Price: $15.20 |
| 31 |
90105-08220-00 |
BOLT, FLANGE Price: $7.05 |
| 32 |
90105-08175-00 |
BOLT, FLANGE Price: $6.40 |
