| Ref | Part Number | Description |
|---|
| 1 |
503193274 |
Front Arm Ass'y This part replaces 503191707. Price: $222.49 |
| 2 |
503191391 |
Upper Shaft Price: $37.99 |
| 3 |
503189324 |
Bushing Price: $14.15 |
| 4 |
503189564 |
Washer Price: $0.76 |
| 5 |
250000471 |
SCREW-HEX.CAPDIN.931 S.GRIP - Call your local BRP dealership This part replaces 207005546. Price: $6.09 |
| 6 |
503191390 |
Lower Shaft Price: $29.99 |
| 7 |
503190643 |
Axle Bar (Long) Price: $17.49 |
| 8 |
207089044 |
Hex. Screw M8 X 90 Price: $3.59 |
| 9 |
503189157 |
Washer Price: $3.39 |
| 10 |
233281414 |
Hex. Flange Elastic Nut M8 Price: $1.49 |
| 11 |
503191765 |
Link Rod Price: $18.49 |
| 12 |
503191555 |
Swivel Bushing Price: $7.83 |
| 13 |
503192211 |
Rocker Price: $85.99 |
| 14 |
503193037 |
Bushing This part replaces 503191422. Price: $16.18 |
| 15 |
503189282 |
Bushing Price: $4.34 |
| 16 |
207005044 |
Hex. Screw M10 X 1.5 X 50 Price: $3.89 |
| 17 |
233601416 |
Elastic Locking Nut M10 X 1.5 Price: $1.69 |
| 18 |
503193520 |
Rear Shock This part replaces 503192410. Price: $248.99 |
| 19 |
414936000 |
Bushing Price: $13.99 |
| 20 |
207684044 |
Hex. Flange Screw M8 X 40 Price: $1.49 |
| 21 |
233281414 |
Hex. Flange Elastic Nut M8 Price: $1.49 |
| 22 |
503192266 |
Center Shock Price: $164.49 |
| 23 |
505073625 |
Adjustment Cam This part replaces 505070150. Price: $13.49 |
| 24 |
503191872 |
Spring Guide Price: $2.39 |
| 25 |
503191880 |
Black, Spring 242MM Price: $69.99 |
| 26 |
503193663 |
Protector This part replaces 503191126. Price: $38.99 |
| 27 |
706200881 |
Spring Stopper Price: $13.49 |
| 28 |
503189117 |
Urethane Bushing Price: $8.19 |
| 29 |
503189282 |
Bushing Price: $4.34 |
| 30 |
503192377 |
Black RH Square Spring Price: $114.99 |
| 31 |
503192378 |
Black LH Square Spring Price: $114.99 |
| 32 |
503191709 |
Rear Arm Ass'y Price: Call Us |
| 33 |
503191405 |
Upper Shaft Price: $96.99 |
| 34 |
503191738 |
Black, Wheel Ass'y 155 mm Price: $48.49 |
| 35 |
503191099 |
Retaining Ring Price: $8.49 |
| 36 |
503191451 |
Cushion Price: $14.15 |
| 37 |
503190328 |
Washer Price: $12.99 |
| 38 |
861805547 |
Spring Support Kit This part replaces 503191183. Price: $10.99 |
| 39 |
861805547 |
Spring Support Kit This part replaces 503190754. Price: $10.99 |
| 40 |
205082544 |
Socket Head Screw M8 X 25 Price: $1.19 |
| 41 |
233281414 |
Hex. Flange Elastic Nut M8 Price: $1.49 |
| 42 |
205523544 |
Socket Head Screw M12 X 35, Scotch Grip Price: $2.99 |
| 43 |
503189276 |
Washer Price: $3.39 |
| 44 |
503191565 |
LH Cam Adjuster Price: $16.99 |
| 45 |
503191566 |
RH Cam Adjuster Price: $16.99 |
| 46 |
293370013 |
E-Circlip Price: $0.67 |
| 47 |
503195154 |
Pivot Arm This part replaces 503191393. Price: $109.99 |
| 48 |
408200700 |
Grease Fitting Price: $3.59 |
| 49 |
503191396 |
Axle Pivot Price: $81.99 |
| 50 |
503195156 |
Bolt 369MM This part replaces 503191397. Price: $26.99 |
| 51 |
503189157 |
Washer Price: $3.39 |
| 52 |
233281414 |
Hex. Flange Elastic Nut M8 Price: $1.49 |
| 53 |
503192330 |
Lower Shaft Price: $46.99 |

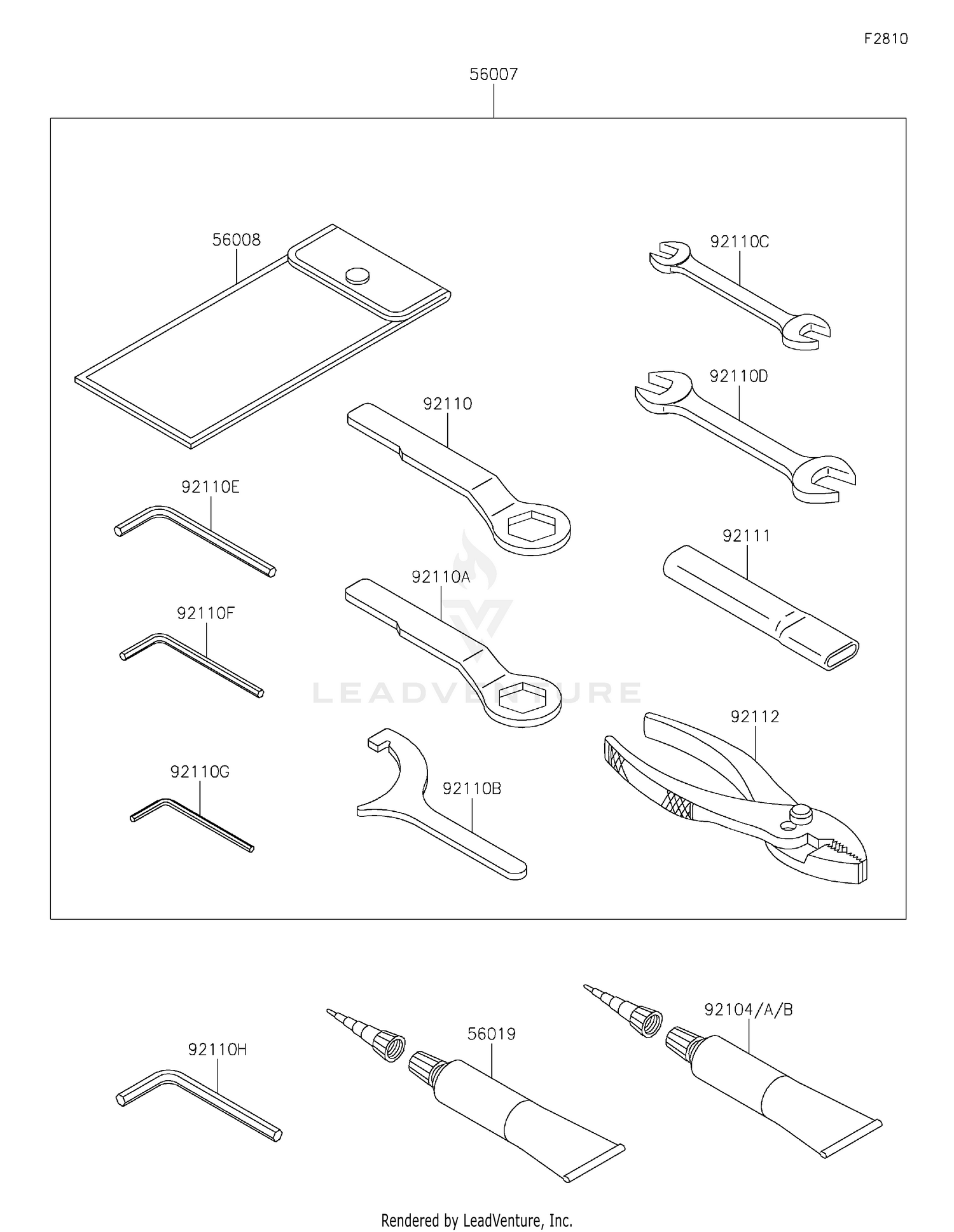

| 56007 |
56007-0129 |
TOOL-KIT Price: $180.41 |
| 56008 |
56008-0036 |
BAG,TOOL Price: $20.92 |
| 56019 |
56019-120 |
GASKET-LIQUID,TB1211,WHITE Price: $80.97 |
| 92104 |
92104-0004 |
GASKET-LIQUID,TB1211F,CLEAR Price: $96.32 |
| 92104A |
92104-1064 |
GASKET-LIQUID,TB1216B,BLACK Price: $98.59 |
| 92104B |
92104-2068 |
GASKET-LIQUID,TB1207B,BLACK Price: $80.94 |
| 92110 |
92110-0064 |
TOOL-WRENCH,BOX END,22MM Price: $22.68 |
| 92110A |
92110-0065 |
TOOL-WRENCH,BOX END,27MM Price: $22.68 |
| 92110B |
92110-0558 |
TOOL-WRENCH,HOOK SPANNER,R37.5 Price: $25.16 |
| 92110C |
92110-0564 |
TOOL-WRENCH,OPEN END,10X12 Price: $21.79 |
| 92110D |
92110-0565 |
TOOL-WRENCH,OPEN END,12X14 Price: $22.93 |
| 92110E |
92110-0566 |
TOOL-WRENCH,ALLEN,5MM Price: $10.90 |
| 92110F |
92110-0567 |
TOOL-WRENCH,ALLEN,4MM Price: $9.73 |
| 92110G |
92110-0577 |
TOOL-WRENCH,ALLEN,3MM Price: $23.23 |
| 92110H |
92110-0587 |
TOOL-WRENCH,ALLEN,6MM Price: $13.21 |
| 92111 |
92111-0008 |
TOOL-BAR,WRENCH Price: $12.14 |
