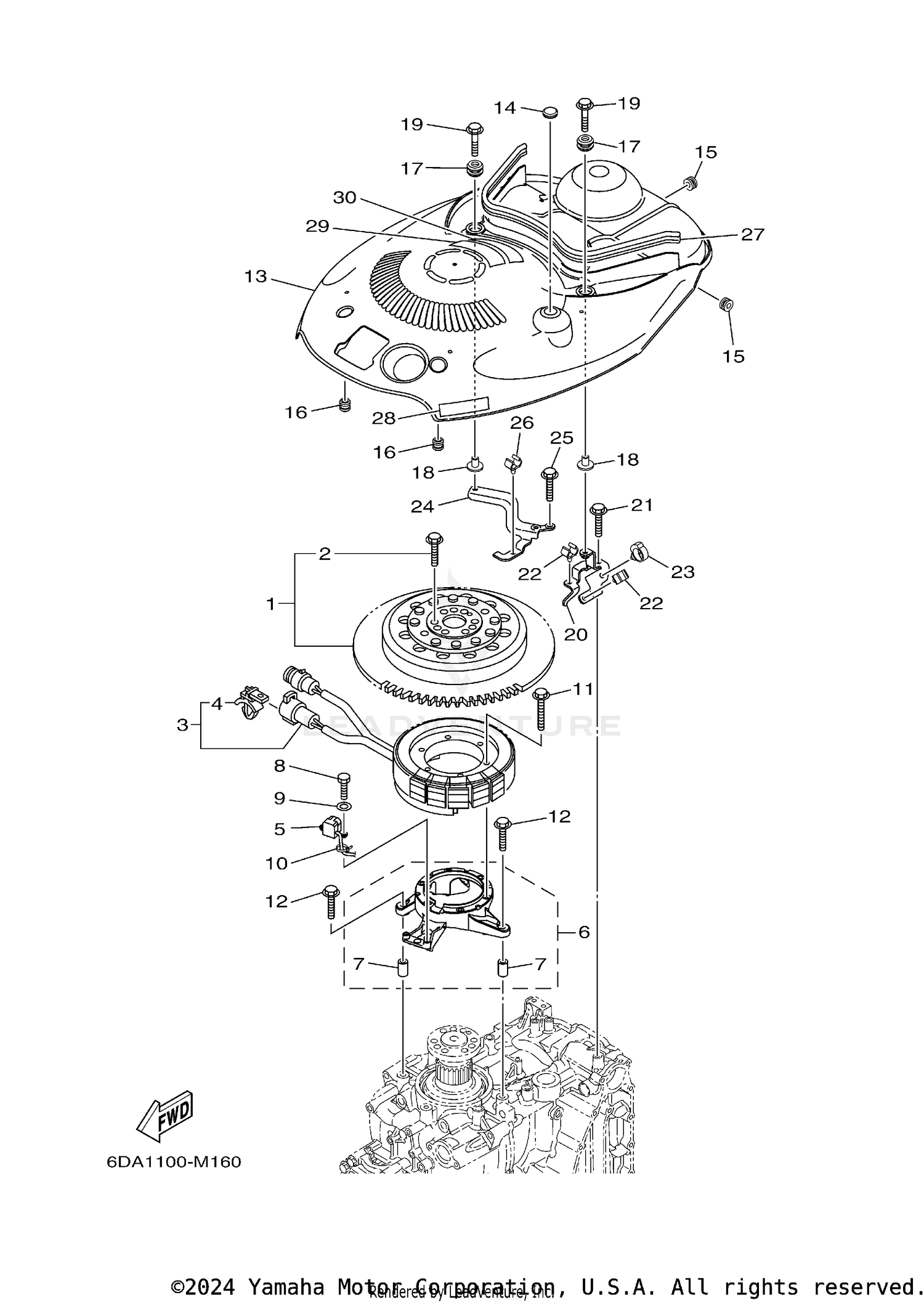

| Ref | Part Number | Description |
|---|
| 1 |
6DA-W8145-00-00 |
ROTOR ASSY WITH BOLTS Price: $701.60 |
| 2 |
6EK-W9010-00-00 |
BOLT SET This part replaces 6AW-W9011-00-00. Price: $79.90 |
| 3 |
6DA-81410-00-00 |
STATOR ASSY Price: $619.80 |
| 4 |
90464-12002-00 |
CLAMP Price: $4.75 |
| 5 |
6CB-85580-01-00 |
COIL, PULSER This part replaces 6CB-85580-00-00. Price: $98.10 |
| 6 |
6DA-85561-00-00 |
BASE, MAGNETO Price: $84.75 |
| 7 |
99590-08012-00 |
PIN, DOWEL Price: $3.85 |
| 8 |
97095-05020-00 |
BOLT Price: $2.10 |
| 9 |
92990-05600-00 |
WASHER, PLATE This part replaces 92995-05600-00. Price: $0.80 |
| 10 |
90465-13M97-00 |
CLAMP Price: $3.45 |
| 11 |
95022-06035-00 |
BOLT, FLANGE Price: $3.85 |
| 12 |
95D95-06030-00 |
BOLT, FLANGE DEEP This part replaces 95895-06030-00. Price: $5.35 |
| 13 |
6DA-81337-01-00 |
COVER, FLYWHEEL This part replaces 6DA-81337-00-00. Price: $89.30 |
| 14 |
90480-16025-00 |
GROMMET Price: $1.90 |
| 15 |
90480-12X00-00 |
GROMMET This part replaces 90480-12314-00. Price: $1.25 |
| 16 |
6A0-82317-01-00 |
DAMPER, IGNITION C This part replaces 6A0-82317-00-00. Price: $7.10 |
| 17 |
6BG-42748-01-00 |
GROMMET This part replaces 6BG-42748-00-00. Price: $6.60 |
| 18 |
90387-06M69-00 |
COLLAR Price: $9.65 |
| 19 |
90119-06295-00 |
BOLT, WITH WASHER This part replaces 90119-06M61-00. Price: $7.99 |
| 20 |
6DA-8132G-01-00 |
PLATE This part replaces 6DA-8132G-00-00. Price: $38.40 |
| 21 |
95D95-06016-00 |
BOLT, FLANGE DEEP This part replaces 95895-06016-00. Price: $0.95 |
| 22 |
90464-09130-00 |
CLAMP Price: $1.54 |
| 23 |
90464-20181-00 |
CLAMP Price: $4.72 |
| 24 |
6DA-82398-01-00 |
PLATE 3 This part replaces 6DA-82398-00-00. Price: $60.70 |
| 25 |
95D95-06016-00 |
BOLT, FLANGE DEEP This part replaces 95895-06016-00. Price: $0.95 |
| 26 |
90464-09130-00 |
CLAMP Price: $1.54 |
| 27 |
6DA-42617-00-00 |
DAMPER, FORM Price: $31.20 |
| 28 |
63P-13437-52-00 |
MARK, CAUTION Price: $7.20 |
| 29 |
6EE-81994-40-00 |
LABEL, SAFETY Price: $17.10 |
