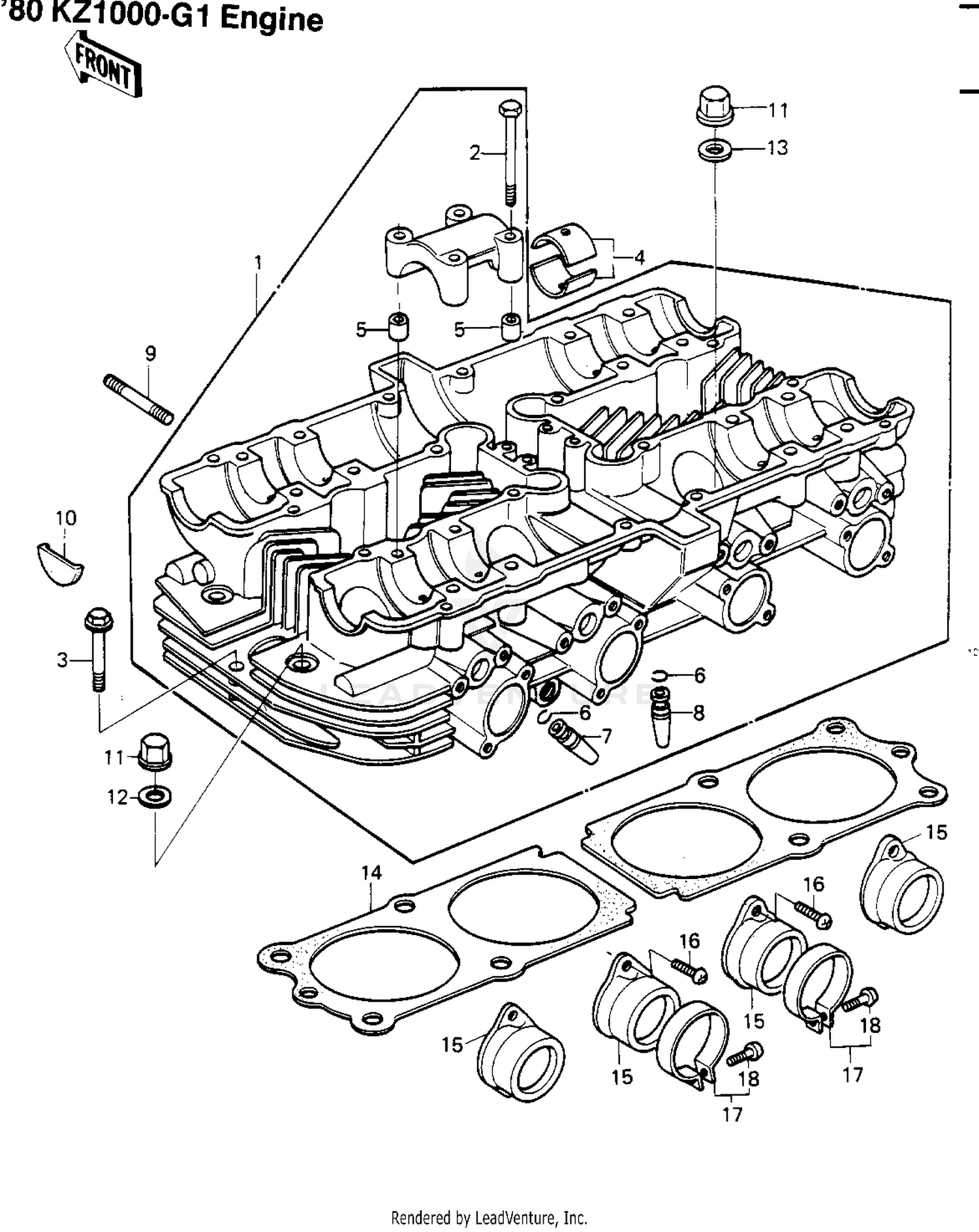

| Ref | Part Number | Description |
|---|
| 1 |
11002-1044 |
HEAD ASSY,CYLINDER Price: $1,368.50 |
| 2 |
92002-1881 |
BOLT,6X43 Price: $7.24 |
| 3 |
92003-092 |
BOLT,HEX HEAD,6X45 Price: $7.58 |
| 4 |
13034-030 |
BUSHING,CAMSHAFT Price: $22.16 |
| 5 |
92042-007 |
PIN,DOWEL,6.3X8X14 Price: $5.70 |
| 6 |
92036-023 |
RING-SNAP,VALVE GUIDE Price: $0.48 |
| 7 |
12013-009 |
GUIDE-VALVE,INTAKE Price: $27.29 |
| 8 |
49002-1002 |
GUIDE-VALVE,EXHAUST Price: $24.01 |
| 9 |
92004-1069 |
STUD,8X30 Price: $7.51 |
| 10 |
92066-0946 |
PLUG,CAMSHAFT,14X7 This part replaces 92066-017. Price: $25.35 |
| 11 |
92015-076 |
NUT,CYLINDER HEAD Price: $13.08 |
| 12 |
92022-215 |
WASHER,PLAIN,10MM Price: $9.64 |
| 13 |
411AA1000 |
WASHER-PLAIN,10MM This part replaces 411B1000. Price: $0.96 |
| 14 |
11004-1258 |
GASKET-HEAD,CYLINDER This part replaces 11004-076. Price: $167.57 |
| 15 |
16065-1031 |
HOLDER,THROTTLE Price: $69.42 |
| 16 |
220B0618 |
SCREW-PAN-CROS,6X18 Price: $3.35 |
| 17 |
92037-077 |
CLAMP,HOLDER Price: $12.00 |
