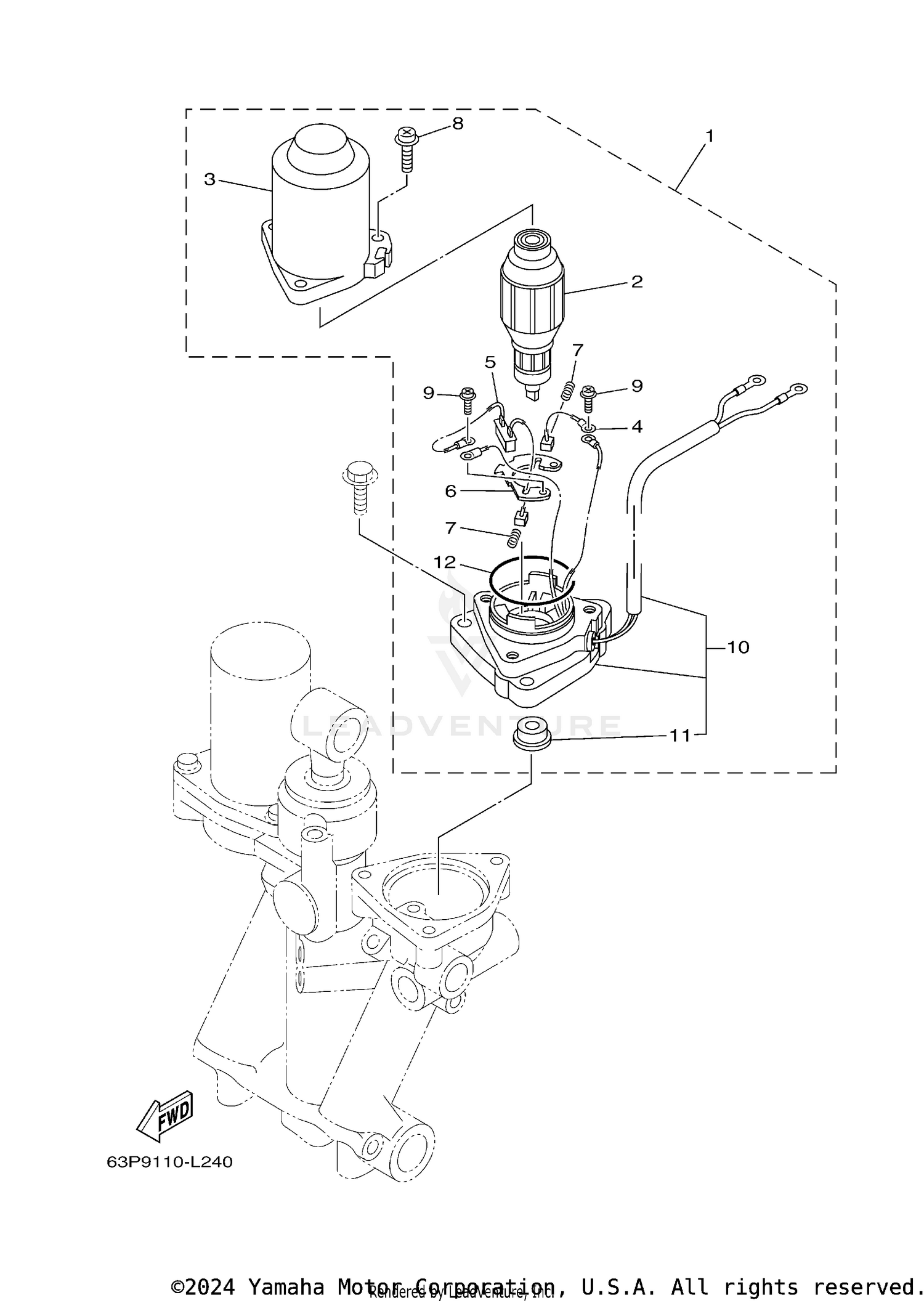

POWER TRIM TILT ASSY 2
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6KW-43880-02-00 | MOTOR ASSY This part replaces 63P-43880-10-00. Price: $1,321.50 |
| 2 | 63P-43805-10-00 | ARMATURE ASSY Price: $113.85 |
| 3 | 63P-43804-10-00 | STATOR ASSY Price: $139.75 |
| 4 | 63P-43892-10-00 | BRUSH 2 Price: $7.70 |
| 5 | 63P-82181-10-00 | CIRCUIT BREAKER COMP. Price: $162.50 |
| 6 | 63P-4380F-10-00 | PLATE, BRUSH HOLDER Price: $8.95 |
| 7 | 62X-4386K-00-00 | SPRING, BRUSH Price: $6.40 |
| 8 | 63P-43879-10-00 | SCREW, WITH WASHER Price: $2.55 |
| 9 | 97602-04316-00 | SCREW, PAN HEAD WITH WASHER Price: $2.05 |
| 10 | 63P-43881-11-00 | FRAME, END This part replaces 63P-43881-10-00. Price: $180.95 |
| 11 | 93102-08414-00 | OIL SEAL Price: $17.60 |
