| Ref | Part Number | Description |
|---|
| 2 |
515176088 |
Start/RER Button Price: $21.99 |
| 3 |
515175926 |
Switch Housing Plate Price: $21.99 |
| 4 |
250000263 |
Torx Screw #8-18 Price: $1.09 |
| 6 |
515175232 |
Male Terminal Price: $1.59 |
| 7 |
515177310 |
Emergency Stop Switch Support This part replaces 515176418. Price: $9.39 |
| 8 |
250000263 |
Torx Screw #8-18 Price: $1.09 |
| 10 |
515175232 |
Male Terminal Price: $1.59 |
| 11 |
515175273 |
MALE TERMINAL - Call your local BRP dealership Price: $8.69 |
| 12 |
515175231 |
Female Terminal Price: $4.49 |
| 13 |
515175352 |
MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership Price: $14.49 |
| 14 |
515175819 |
Female Terminal Housing, 8 Circuits Price: $7.79 |
| 16 |
515175808 |
FEMALE TERMINAL - Call your local BRP dealership Price: $7.49 |
| 17 |
515175809 |
FEMELLE LOCK, 8 CIRCUITS - Call your local BRP dealership Price: $9.99 |
| 18 |
515175807 |
FEMALE TERMINAL HOUSING 8 CIRCUITS BLACK - Call your local BRP dealership Price: $2.89 |
| 19 |
515175810 |
FEMALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership Price: $10.99 |
| 20 |
219704427 |
LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership Price: $40.99 |
| 21 |
515175543 |
Female Terminal Housing, 6 Circuits Price: $9.29 |
| 22 |
515175941 |
Female Terminal Price: $2.79 |
| 23 |
515175817 |
Male Terminal Housing, 8 Circuits Price: $8.99 |
| 24 |
515175662 |
Male Terminal Housing, 6 Circuits Price: $8.99 |
| 25 |
219704427 |
LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership Price: $40.99 |
| 26 |
XXX |
Not Available As Spare Parts Price: Call Us |
| 27 |
XXX |
Not Available As Spare Parts Price: Call Us |
| 28 |
XXX |
Not Available As Spare Parts Price: Call Us |
| 29 |
XXX |
Not Available As Spare Parts Price: Call Us |
| 30 |
219704453 |
Was 293550004 Dielectric Grease, 150 g Price: $38.99 |
| 31 |
293750002 |
Tie Wrap 142 mm Price: $1.25 |
| 31 |
293750008 |
Tie Wrap 368 mm Price: $1.04 |
| 31 |
414115200 |
Tie-Rap 180 mm Price: $0.11 |

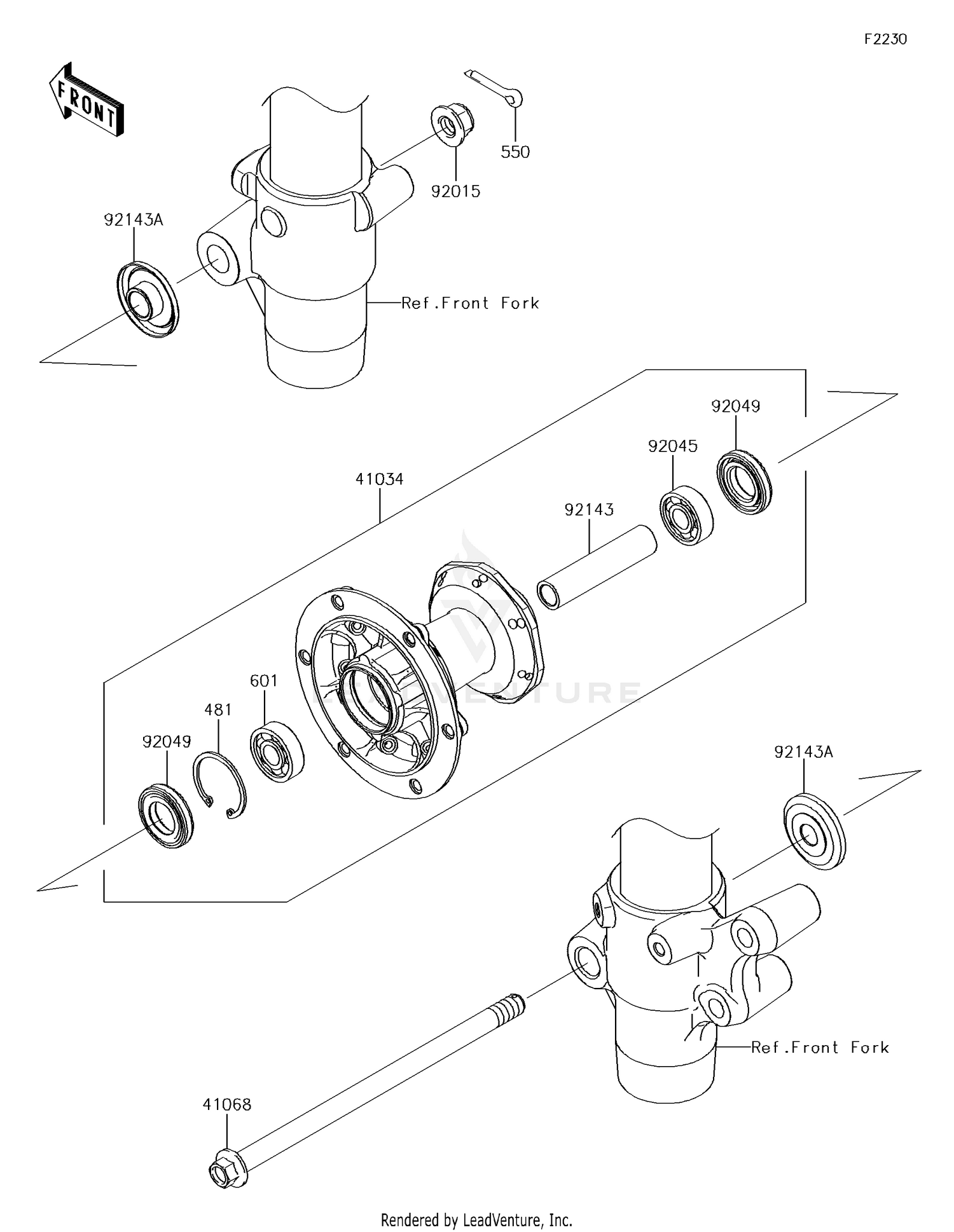

| 481 |
481J3700 |
CIRCLIP-TYPE-C,37MM Price: $3.04 |
| 550 |
550AA2520 |
PIN-COTTER,2.5X20 Price: $1.36 |
| 601 |
601B6301UU |
BEARING-BALL,#6301UUC3 Price: $25.54 |
| 41034 |
41034-1310 |
DRUM-ASSY,FRONT BRAKE Price: $218.95 |
| 41068 |
41068-1333 |
AXLE,FR Price: $29.72 |
| 92015 |
92015-1433 |
NUT,LOCK,FLANGED,12MM Price: $8.86 |
| 92045 |
92045-1062 |
BEARING-BALL,TMB201LLUC3/2A Price: $26.08 |
| 92049 |
92049-1257 |
SEAL-OIL,TC20376.5 Price: $9.28 |
| 92143 |
92143-1935 |
COLLAR,FR BRAKE DRUM,L=76 Price: $7.83 |
