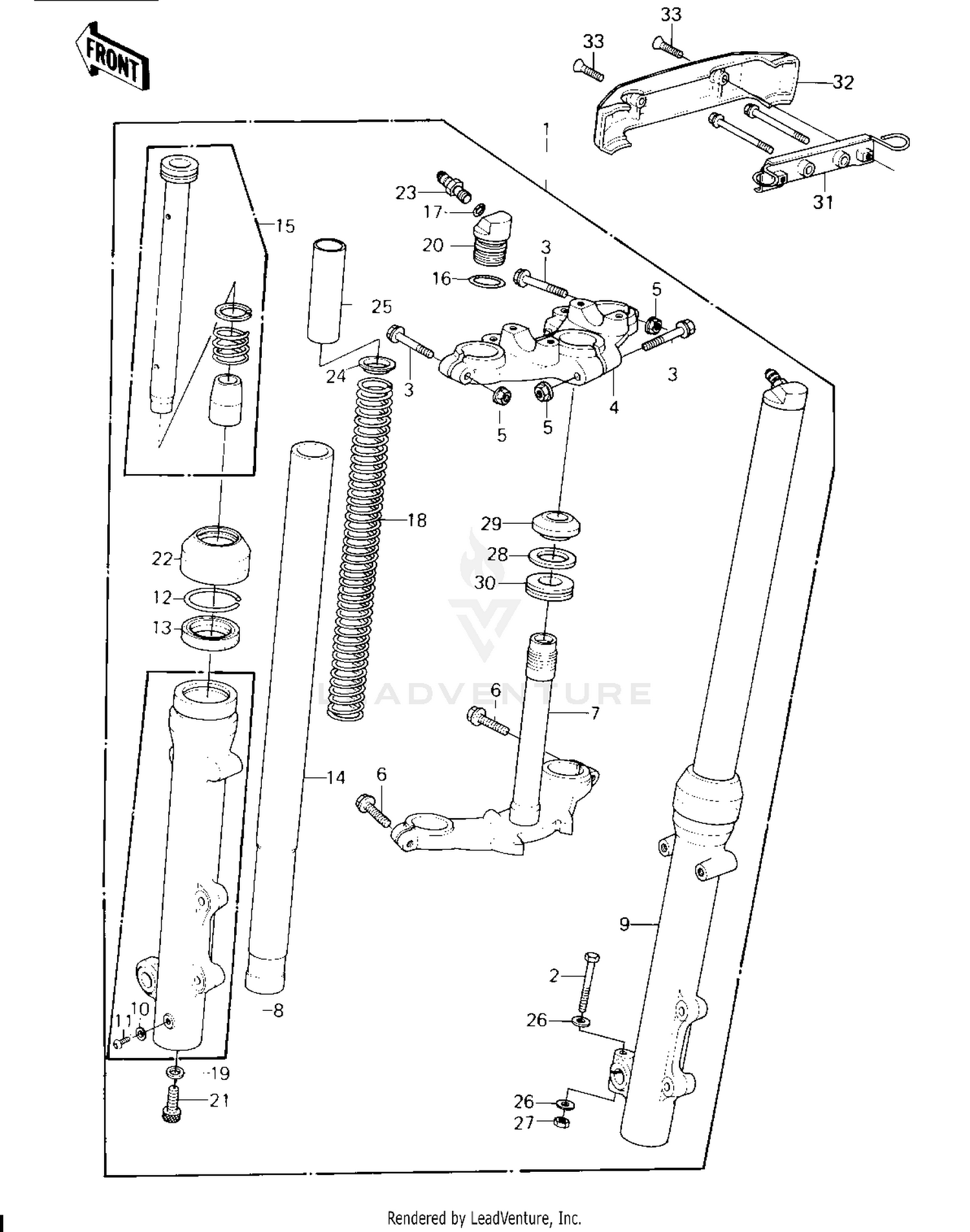

| Ref | Part Number | Description |
|---|
| 1 |
44001-1385 |
FORK-FRONT Price: $1,206.65 |
| 2 |
115G0855 |
BOLT-SMALL-UPSET,8X55 This part replaces 114G0855. Price: $6.13 |
| 3 |
130BA0855 |
BOLT-FLANGED,8X55 This part replaces 130G0855. Price: $2.25 |
| 4 |
44039-1032 |
HEAD,STEERING STEM Price: $186.78 |
| 5 |
92015-1022 |
NUT-8MM Price: $0.48 |
| 6 |
92151-1171 |
BOLT This part replaces 131G1040. Price: $9.73 |
| 7 |
44037-1050 |
STEM,STEERING Price: $412.16 |
| 8 |
39093-1027 |
TUBE,FORK OUTER,L.H. Price: $346.03 |
| 9 |
39093-1028 |
TUBE,FORK OUTER,R.H. Price: $435.05 |
| 10 |
44045-002 |
GASKET,FORK DRAIN PLUG Price: $5.18 |
| 11 |
220AA0408 |
SCREW-PAN-CROS,4X8 This part replaces 220B0408. Price: $0.68 |
| 12 |
92033-1100 |
RING-SNAP,FORK OIL Price: $14.94 |
| 13 |
92049-1193 |
SEAL-OIL,FORK This part replaces 92049-1101. Price: $28.82 |
| 14 |
39093-1029 |
TUBE,FORK INNER Price: $303.15 |
| 15 |
44023-1007 |
CYLINDER-FORK Price: $70.00 |
| 16 |
92055-1012 |
O RING,FORK TOP Price: $8.50 |
| 18 |
44026-1066 |
SPRING,FORK Price: $62.61 |
| 19 |
44045-057 |
GASKET,FORK CYLINDER Price: $4.86 |
| 20 |
44029-1005 |
CAP,FORK TOP Price: $48.79 |
| 21 |
44041-040 |
BOLT,SOCKET,FORK CYLINDER Price: $6.57 |
| 22 |
92093-1037 |
DUST SHIELD,FORK Price: $25.31 |
| 23 |
16126-1003 |
VALVE ASSY,AIR Price: $41.71 |
| 24 |
44028-033 |
GUIDE,FORK SPRING Price: $8.73 |
| 25 |
92026-1012 |
SPACER,FORK SPRING Price: $6.83 |
| 26 |
410AA0800 |
WASHER-PLAIN-SMALL,8MM This part replaces 410B0800. Price: $0.96 |
| 27 |
92015-1124 |
NUT,LOCK,8MM Price: $5.42 |
| 28 |
92022-231 |
WASHER,30.5X50X0.6 Price: $4.69 |
| 29 |
92048-0033 |
RACE,STEERING STEM BEARING This part replaces 92047-012. Price: $14.60 |
| 30 |
92056-003 |
SEAL-OIL,STEERING STEM Price: $8.86 |
| 31 |
11034-1765 |
BRACKET,FR FORK COVER Price: $22.58 |
| 32 |
44033-1053 |
COVER,FORK Price: $49.78 |
