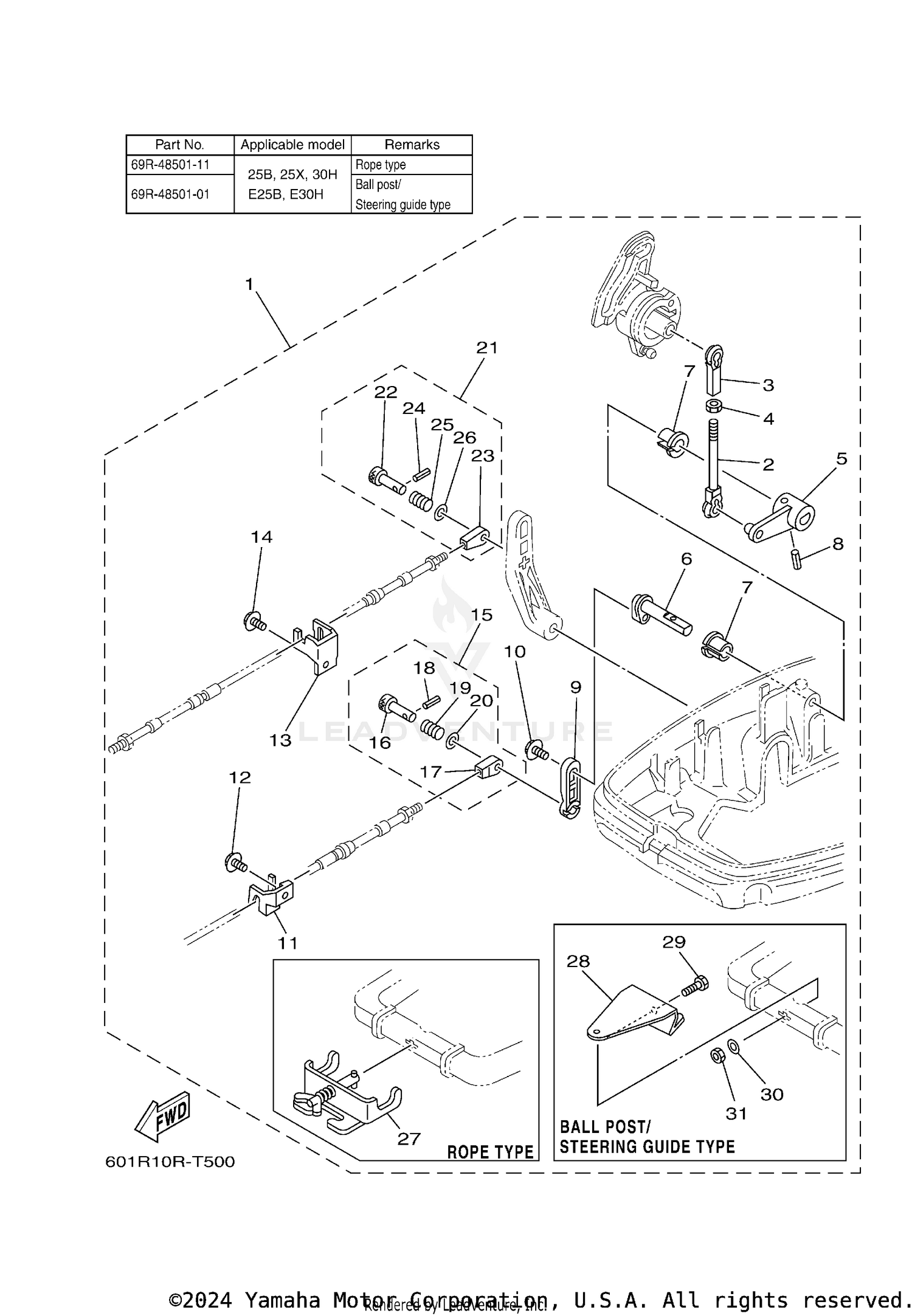

| Ref | Part Number | Description |
|---|
| 2 |
682-41238-01-00 |
JOINT, LINK Price: $9.35 |
| 3 |
682-41237-00-00 |
JOINT, LINK 2 Price: $13.00 |
| 4 |
95380-05600-00 |
NUT Price: $9.49 |
| 7 |
90386-10009-00 |
BUSHING Price: $13.49 |
| 8 |
91690-40018-00 |
PIN, SPRING Price: $3.15 |
| 9 |
648-48534-50-8D |
THROTTLE LEVER CONTROL Price: $19.55 |
| 10 |
97E95-06512-00 |
BOLT, HEXAGON W/W This part replaces 97595-06512-00. Price: $2.05 |
| 11 |
689-48532-52-00 |
BRACKET, REMOTE CONTROL 2 This part replaces 689-48532-51-00. Price: $32.30 |
| 12 |
97E95-06516-00 |
BOLT, HEXAGON W/W Price: $4.20 |
| 13 |
689-48531-52-00 |
BRACKET, REMOTE CONTROL 1 This part replaces 689-48531-51-00. Price: $16.50 |
| 14 |
97E95-06516-00 |
BOLT, HEXAGON W/W Price: $4.20 |
| 15 |
648-48340-50-00 |
CABLE END ASSY Price: $33.70 |
| 16 |
617-48361-91-00 |
HOOK, CABLE Price: $19.05 |
| 17 |
617-48346-90-00 |
CABLE END, REMOTE CONTROL Price: $14.15 |
| 18 |
91690-30012-00 |
PIN, SPRING Price: $5.55 |
| 19 |
90501-10264-00 |
SPRING, COMPRESSION Price: $8.10 |
| 20 |
92990-08600-00 |
WASHER, PLATE Price: $2.70 |
| 21 |
648-48330-50-00 |
CABLE END ASSY Price: $35.10 |
| 22 |
617-48331-91-00 |
HOOK, CABLE Price: $21.80 |
| 23 |
648-48346-50-00 |
CABLE END, REMOTE CONTROL Price: $13.35 |
| 24 |
91690-30012-00 |
PIN, SPRING Price: $5.55 |
| 25 |
90501-10071-00 |
SPRING, COMPRESSION Price: $7.70 |
| 26 |
92990-08600-00 |
WASHER, PLATE Price: $2.70 |
| 28 |
689-48511-02-00 |
HOOK, STEERING Price: $37.55 |
| 29 |
97D75-10040-00 |
BOLT, HEXAGON DEEP R Price: $4.55 |
| 30 |
92990-10600-00 |
WASHER, PLATE This part replaces 92995-10600-00. Price: $3.00 |
