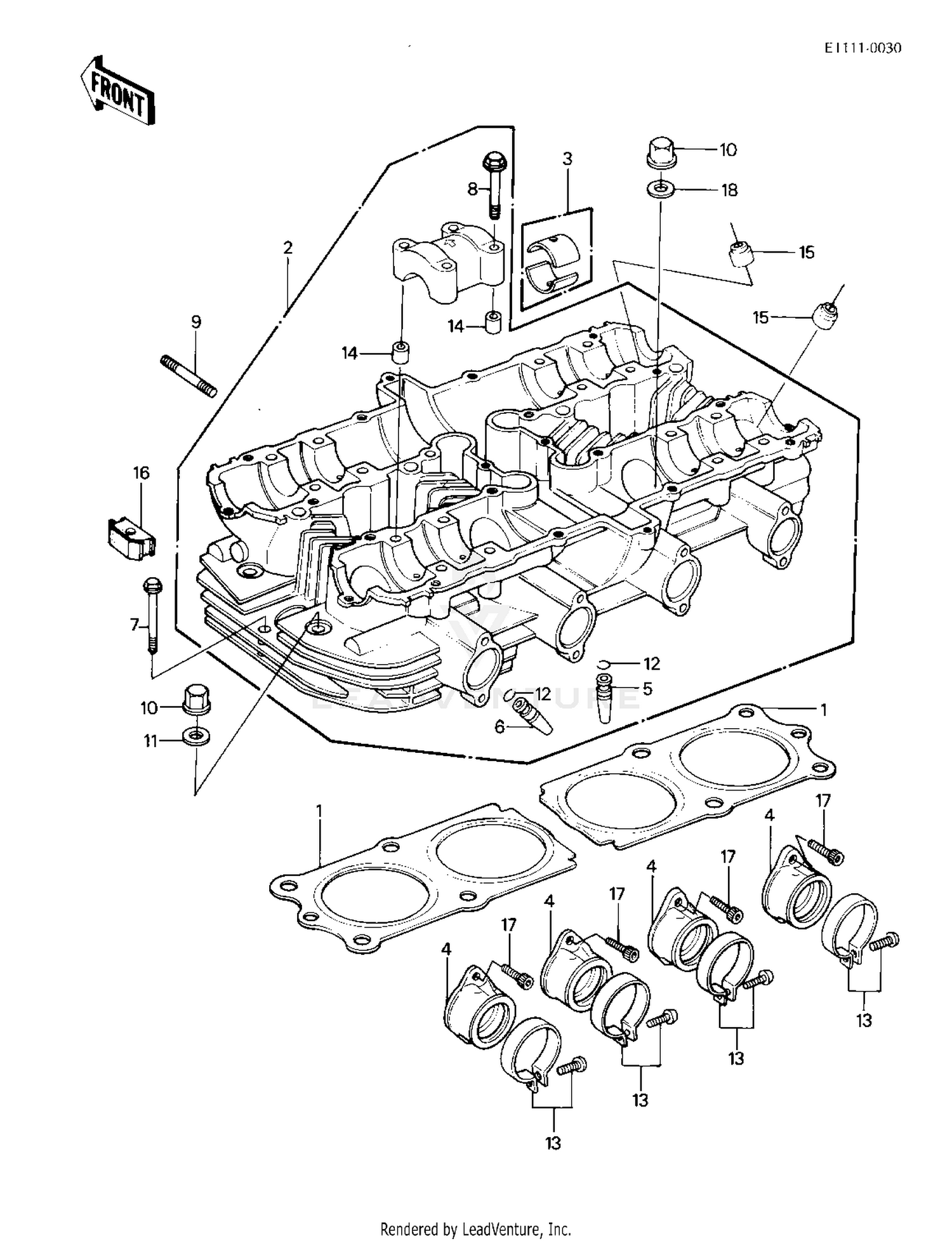

CYLINDER HEAD
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 11004-1222 | GASKET-HEAD Price: $106.79 |
| 3 | 13034-030 | BUSHING,CAMSHAFT Price: $22.16 |
| 5 | 12013-009 | GUIDE-VALVE,INTAKE Price: $27.29 |
| 6 | 49002-1002 | GUIDE-VALVE,EXHAUST Price: $24.01 |
| 7 | 92003-092 | BOLT,HEX HEAD,6X45 Price: $7.58 |
| 10 | 92015-076 | NUT,CYLINDER HEAD Price: $13.08 |
| 11 | 92022-1005 | WASHER,10.5X22X1.6 Price: $5.01 |
| 12 | 92036-023 | RING-SNAP,VALVE GUIDE Price: $0.48 |
| 14 | 92042-007 | PIN,DOWEL,6.3X8X14 Price: $5.70 |
| 15 | 92049-016 | SEAL-OIL,RV37129.5 Price: $18.35 |
