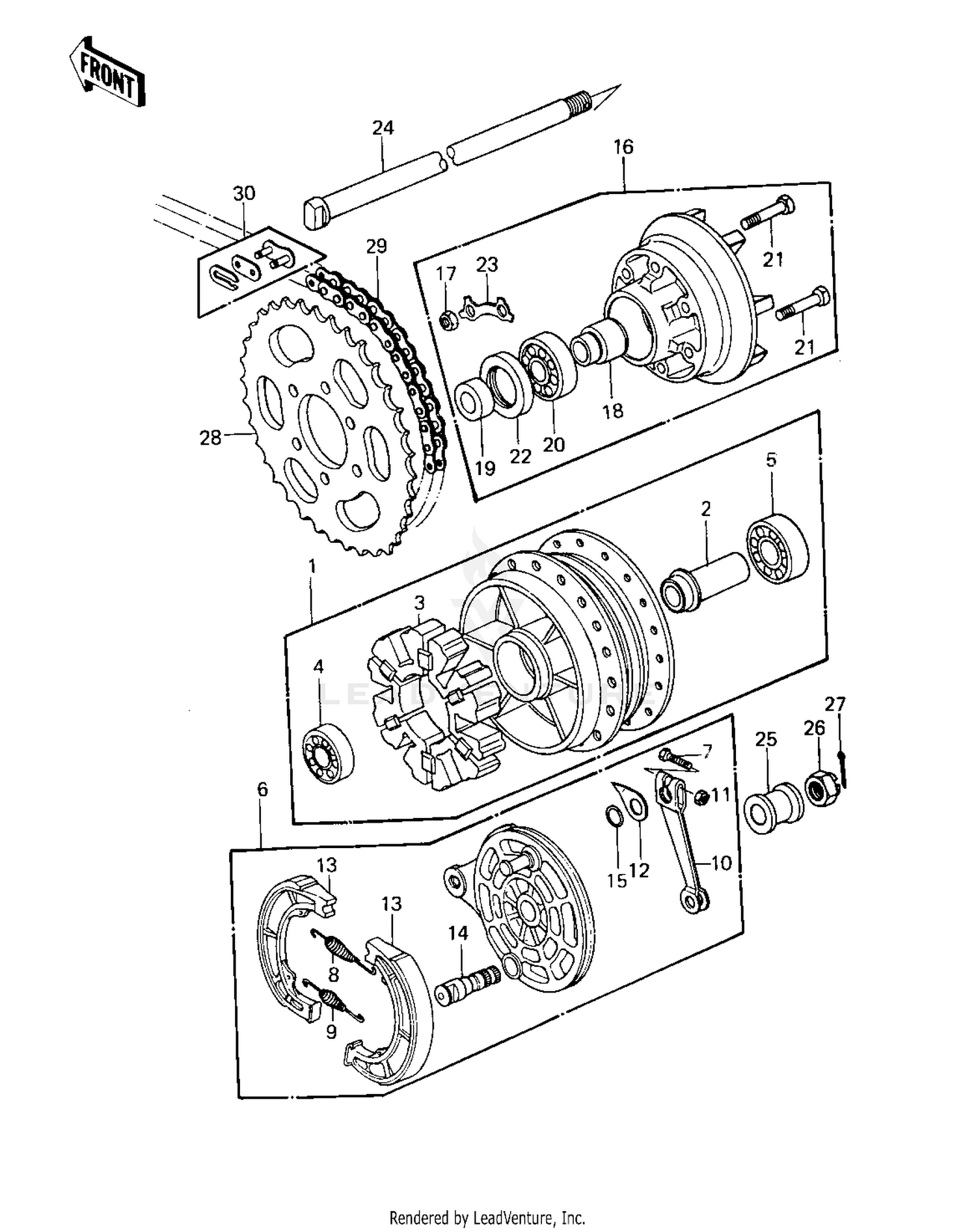

| Ref | Part Number | Description |
|---|
| 1 |
42005-057 |
DRUM ASSY,REAR Price: $440.72 |
| 2 |
92027-1508 |
COLLAR,RR HUB,L=57 This part replaces 42010-037. Price: $10.03 |
| 3 |
92161-1327 |
DAMPER,REAR HUB SHOCK This part replaces 42014-030. Price: $7.68 |
| 4 |
601B6202 |
BEARING-BALL,#6202C3 Price: $8.64 |
| 5 |
601B6302Z |
BEARING BALL #6302Z Price: $27.38 |
| 6 |
41035-1358 |
PANEL-ASSY-BRAKE,RR This part replaces 41035-1090. Price: $281.24 |
| 7 |
112BA0630 |
BOLT-UPSET This part replaces 112G0630. Price: $1.38 |
| 8 |
92081-1766 |
SPRING,BRAKE SHOE Price: $8.03 |
| 9 |
92081-1550 |
SPRING,BRAKE SHOE Price: $9.49 |
| 10 |
41053-002 |
LEVER,FRONT BRAKE CAM Price: $11.89 |
| 11 |
41072-007 |
NUT,6MM Price: $3.92 |
| 12 |
41085-013 |
INDICATOR,FR BK SHOE Price: $14.51 |
| 13 |
41048-1076 |
SHOE-BRAKE This part replaces 42019-010. Price: $38.07 |
| 14 |
42026-026 |
CAM SHAFT,REAR BRAKE Price: $24.05 |
| 16 |
42033-1029 |
COUPLING-ASSY,RR HUB Price: $144.69 |
| 17 |
317AA0800 |
NUT-HEX-SMALL,8MM This part replaces 311B0800. Price: $0.68 |
| 18 |
42036-031 |
SLEEVE,REAR HUB COUPR Price: $30.23 |
| 19 |
42037-029 |
COLLAR,15X26X12.5 Price: $13.43 |
| 20 |
601B6004 |
BEARING BALL #6004 Price: $12.47 |
| 21 |
92001-021 |
BOLT REAR SPROCKET Price: $5.59 |
| 22 |
92050-060 |
SEAL-OIL,26X42X8 Price: $18.15 |
| 23 |
92088-019 |
WASHER,SPROCKET LOCK Price: $6.22 |
| 24 |
42031-059 |
AXLE,REAR Price: $60.38 |
| 25 |
92143-1153 |
COLLAR This part replaces 42032-076. Price: $15.87 |
| 26 |
92015-1765 |
NUT,CASTLE,14MM This part replaces 42045-020. Price: $9.91 |
| 27 |
550AA3025 |
PIN-COTTER,3.0X25 This part replaces 550D3025. Price: $0.62 |
| 28 |
42041-1042 |
REAR.SPROCKET 37T Price: $78.91 |
