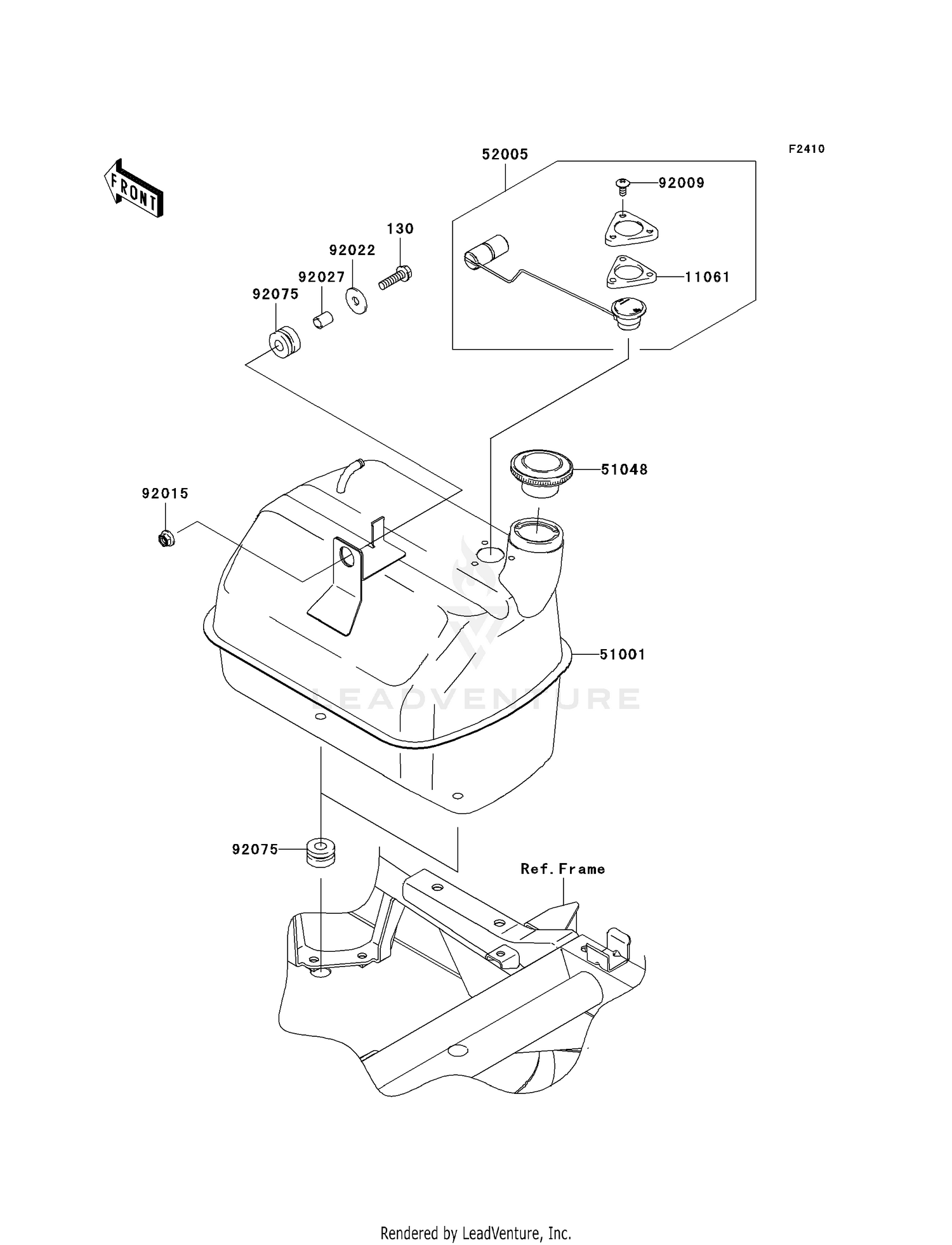

FUEL TANK (CN,US)
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 130 | 130AA0830 | BOLT-FLANGED,8X30 Price: $0.75 |
| 11061 | 11061-0120 | GASKET,FUEL GAUGE Price: $16.46 |
| 51001 | 51001-0093 | TANK-COMP-FUEL Price: $392.71 |
| 51048 | 51048-0005 | CAP-ASSY-TANK,FUEL Price: $60.42 |
| 52005 | 52005-0730 | GAUGE,FUEL This part replaces 52005-0012. Price: $43.13 |
| 92009 | 92009-1541 | SCREW Price: $4.43 |
| 92015 | 92015-1397 | NUT,LOCK,FLANGED,8MM Price: $4.31 |
| 92022 | 92022-1632 | WASHER,9X28X2.3 Price: $4.39 |
| 92027 | 92027-1081 | COLLAR Price: $9.59 |
