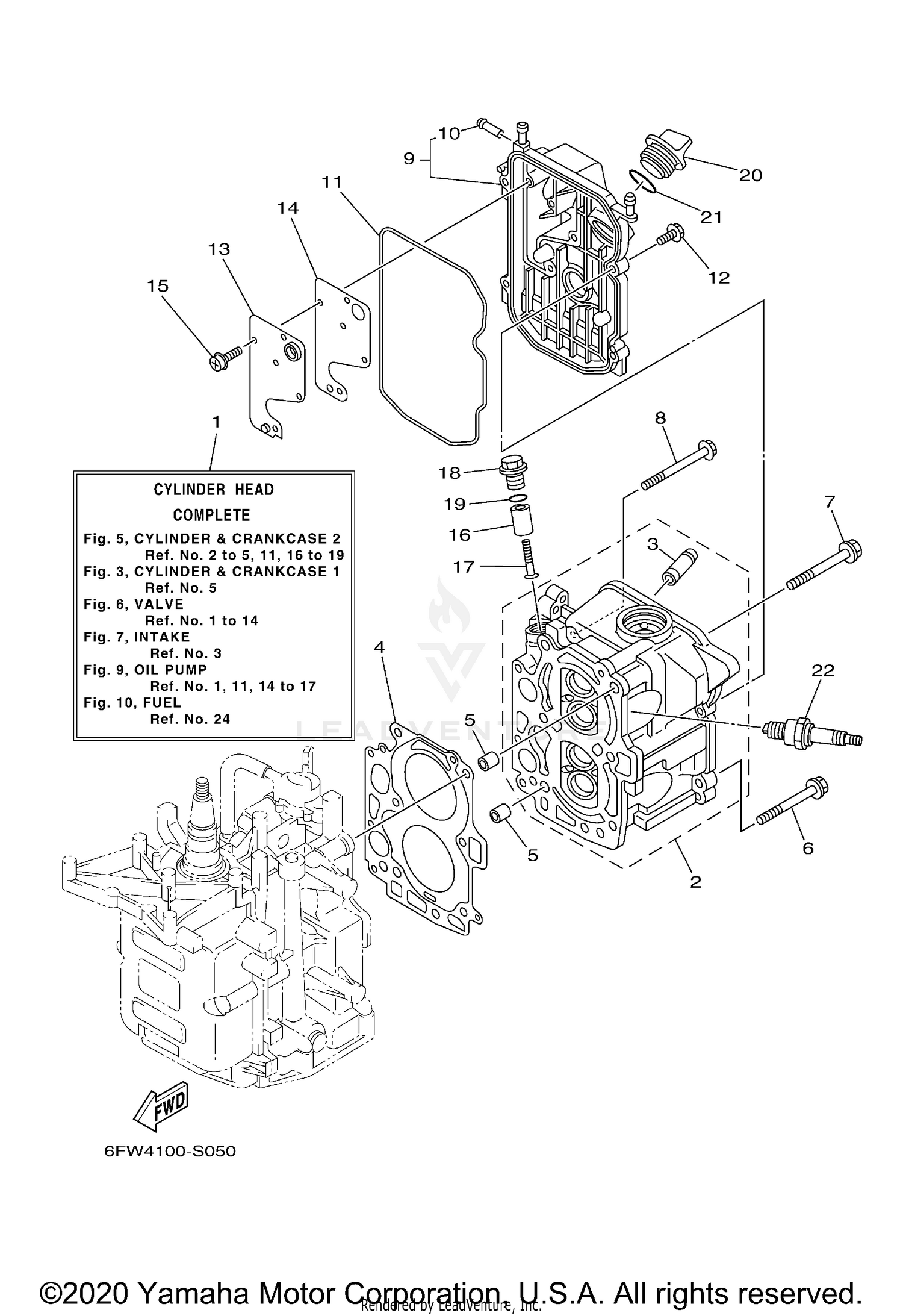

| Ref | Part Number | Description |
|---|
| 1 |
6AU-W009A-02-1S |
CYLINDER HEAD COMPLE Price: $1,845.45 |
| 2 |
6AU-11111-00-1S |
HEAD, CYLINDER 1 Price: $556.20 |
| 3 |
6AU-11133-10-00 |
GUIDE, VALVE 1 Price: $39.75 |
| 4 |
68T-11181-00-00 |
GASKET, CYLINDER HEAD 1 Price: $39.40 |
| 5 |
99530-10114-00 |
PIN, DOWEL Price: $2.65 |
| 6 |
90105-08M36-00 |
BOLT, WASHER BASED Price: $7.49 |
| 7 |
90105-08M78-00 |
BOLT, FLANGE Price: $3.95 |
| 8 |
90119-06049-00 |
BOLT, WITH WASHER Price: $7.90 |
| 9 |
68T-11191-00-1S |
COVER, CYLINDER HEAD 1 Price: $115.30 |
| 10 |
652-24461-00-00 |
PIPE, JOINT 4 This part replaces 650-24378-00-00. Price: $5.80 |
| 11 |
68T-11356-00-00 |
SEAL, CYLINDER 2 Price: $17.70 |
| 12 |
97E95-06520-00 |
BOLT, HEXAGON W/W Price: $3.05 |
| 13 |
68T-11168-00-00 |
COVER, BREATHER Price: $5.95 |
| 14 |
68T-11169-A0-00 |
GASKET, BREATHER COVER Price: $5.65 |
| 15 |
97607-04210-00 |
SCREW, WITH WASHER Price: $3.20 |
| 16 |
6G8-11325-00-00 |
ANODE Price: $3.60 |
| 17 |
98980-05025-00 |
SCREW, BIND Price: $1.40 |
| 18 |
6G8-11197-B0-00 |
PLUG, BLIND This part replaces 6G8-11197-A0-00. Price: $15.99 |
| 19 |
93210-13M63-00 |
O-RING Price: $4.75 |
| 20 |
6G8-15363-00-00 |
PLUG, OIL Price: $13.50 |
| 21 |
93210-24235-00 |
O-RING This part replaces 93210-24M79-00. Price: $8.49 |
