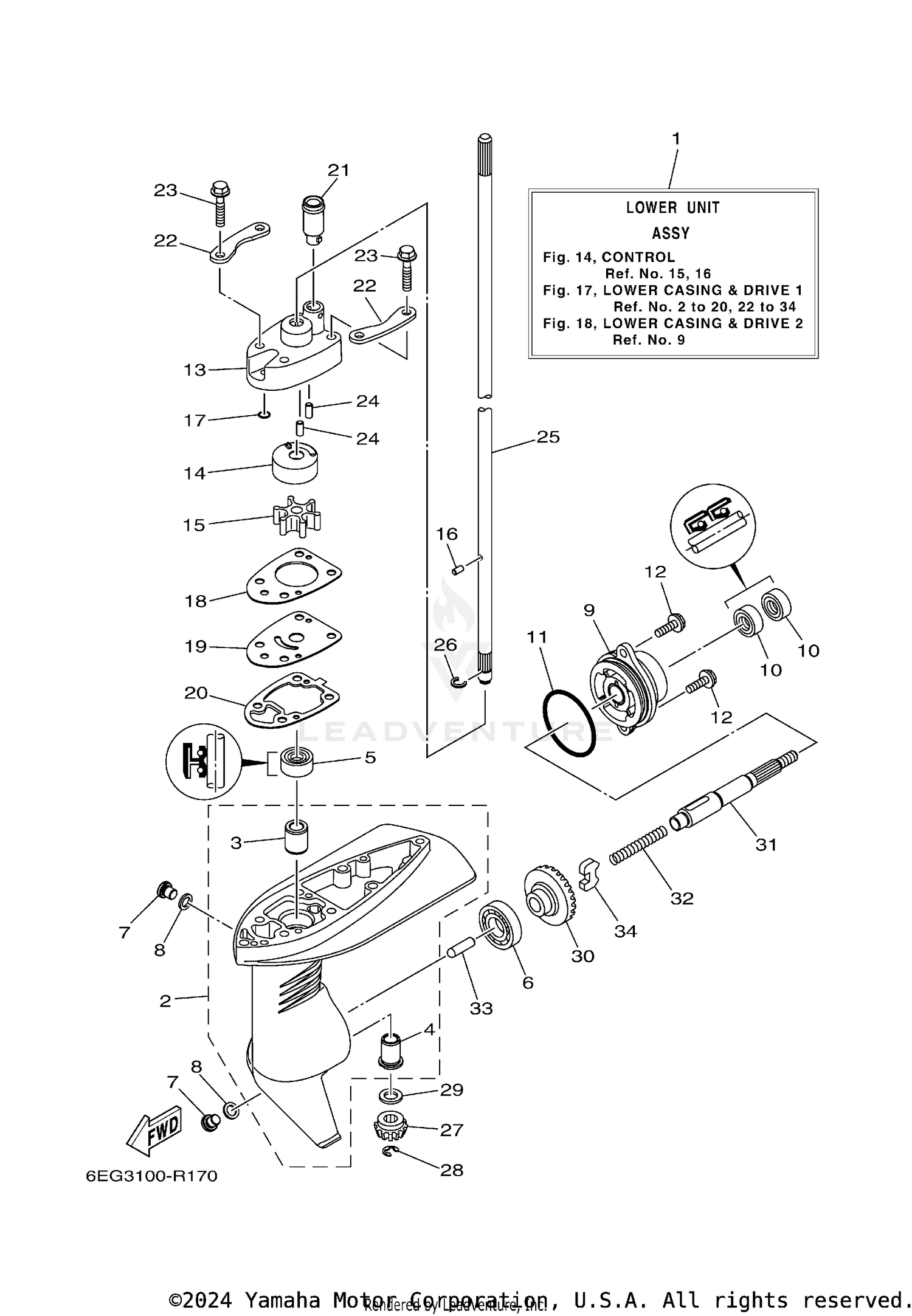

| Ref | Part Number | Description |
|---|
| 2 |
6EG-G5311-00-8D |
CASING, LOWER Price: $259.20 |
| 3 |
6L5-45316-09-00 |
BUSHING, DRIVE SHAFT Price: $31.80 |
| 4 |
6L5-45317-09-00 |
BUSHING, DRIVE SHAFT Price: $30.10 |
| 5 |
93103-09M41-00 |
OIL SEAL This part replaces 93103-09800-00. Price: $11.90 |
| 6 |
93316-003Y0-00 |
BEARING Price: $22.80 |
| 7 |
90340-08002-00 |
PLUG, STRAIGHT SCREW Price: $12.75 |
| 8 |
90430-08003-00 |
GASKET Price: $1.55 |
| 9 |
6EG-G5361-00-8D |
CAP, LOWER CASING Price: $51.80 |
| 10 |
93101-13M12-00 |
OIL SEAL This part replaces 93101-13800-00. Price: $8.10 |
| 11 |
93210-48214-00 |
O-RING This part replaces 93210-48800-00. Price: $11.10 |
| 12 |
97E95-06516-00 |
BOLT, HEXAGON W/W Price: $4.20 |
| 13 |
6EG-44311-00-00 |
HOUSING, WATER PUMP This part replaces 6EG-G4311-00-00. Price: $23.35 |
| 14 |
6EG-G4322-00-00 |
INSERT, CARTRIDGE Price: $13.10 |
| 15 |
6L5-44352-00-00 |
IMPELLER Price: $23.25 |
| 16 |
93604-07M13-00 |
PIN, DOWEL Price: $6.40 |
| 17 |
93210-05001-00 |
O-RING Price: $3.55 |
| 19 |
6EG-G4323-00-00 |
OUTER PLATE, CARTRIDGE Price: $8.05 |
| 21 |
6EE-G4366-00-00 |
DAMPER, WATER SEAL 2 Price: $3.55 |
| 22 |
6EG-G4328-00-00 |
PLATE Price: $3.65 |
| 23 |
97E95-06535-00 |
BOLT, HEXAGON W/W Price: $1.10 |
| 24 |
93604-10M03-00 |
PIN, DOWEL This part replaces 93604-12M07-00. Price: $5.20 |
| 26 |
90467-07M12-00 |
CLIP Price: $2.85 |
| 27 |
6L5-45551-00-00 |
PINION (13T) Price: $62.75 |
| 28 |
99001-06600-00 |
CIRCLIP Price: $1.10 |
| 29 |
6EG-G5533-00-00 |
SHIM Price: $2.30 |
| 30 |
6L5-45560-00-00 |
GEAR 1 (27T) Price: $124.75 |
| 31 |
6EG-45611-00-00 |
SHAFT, PROPELLER This part replaces 6EG-G5611-00-00. Price: $90.30 |
| 32 |
90501-10064-00 |
SPRING, COMPRESSION Price: $10.10 |
| 33 |
6EG-G5635-00-00 |
PLUNGER, SHIFT Price: $9.10 |
