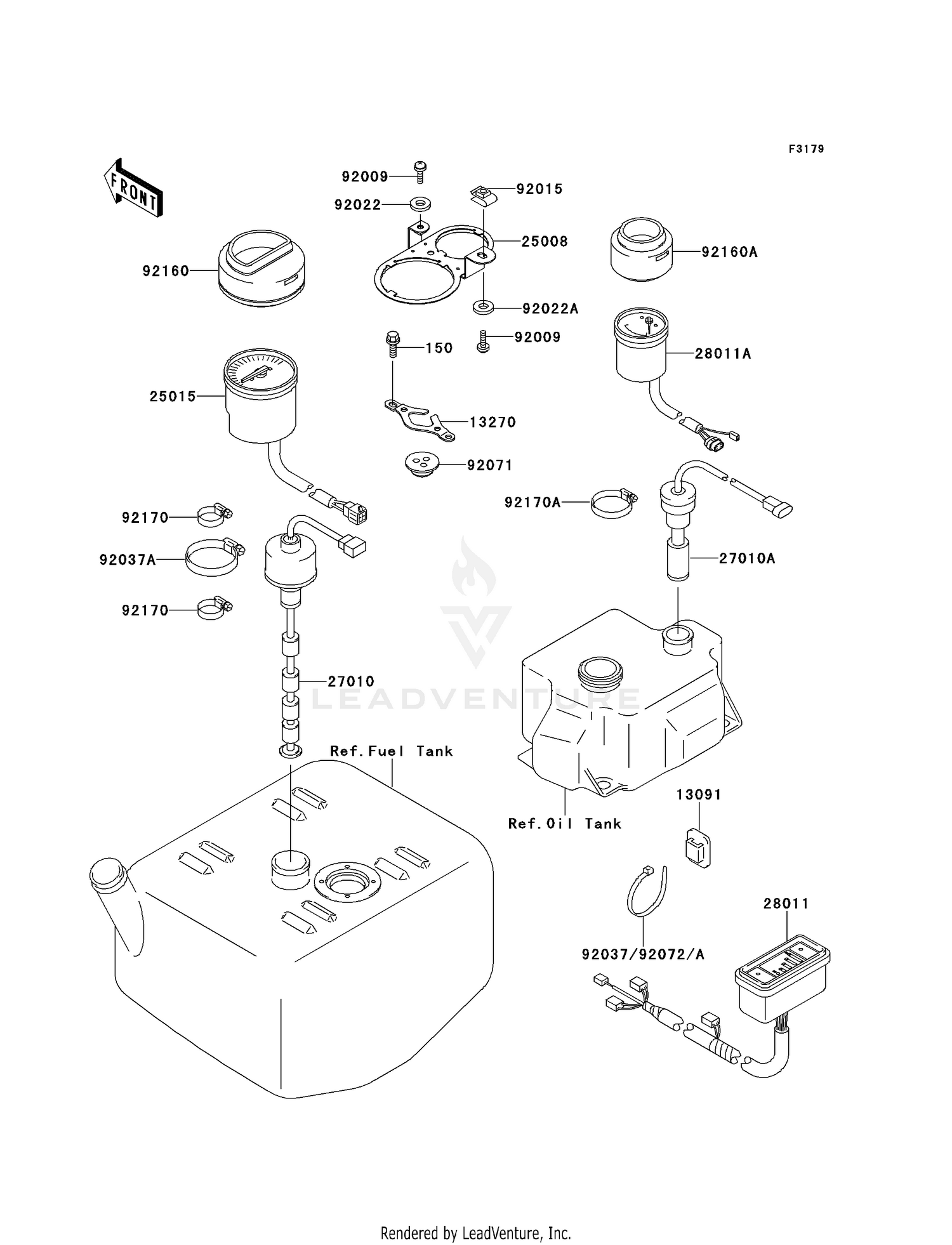

| Ref | Part Number | Description |
|---|
| 150 |
150R0614 |
BOLT-WS,6X14 Price: $5.96 |
| 13091 |
13091-3764 |
HOLDER Price: $5.17 |
| 13270 |
13270-3737 |
PLATE,GROMMET Price: $12.83 |
| 25008 |
25008-3707 |
BRACKET-METER,TACHO&T Price: $35.00 |
| 25015 |
25015-3702 |
TACHOMETER,X1000R/MIN Price: $403.09 |
| 27010 |
27010-3727 |
SWITCH,FUEL LEVEL Price: $267.52 |
| 27010A |
27010-3781 |
SWITCH,OIL LEVEL This part replaces 27010-3729. Price: $168.64 |
| 28011 |
28011-3702 |
METER,FUEL Price: $491.73 |
| 28011A |
28011-3717 |
METER,TRIM Price: $361.36 |
| 92009 |
92009-3805 |
SCREW,6X18 Price: $4.71 |
| 92015 |
92015-3763 |
NUT Price: $10.27 |
| 92022 |
92022-1143 |
WASHER,6.5X16X1 Price: $3.92 |
| 92022A |
92022-3710 |
WASHER,6.5X20X1.5 Price: $3.65 |
| 92037 |
92037-1173 |
CLAMP Price: $3.49 |
| 92037A |
92037-3009 |
CLAMP Price: $3.70 |
| 92071 |
92071-3797 |
GROMMET Price: $21.55 |
| 92072 |
92072-3509 |
BAND,L=292.1 Price: $2.12 |
| 92072A |
92072-3867 |
BAND,L=203.2 This part replaces 92072-3778. Price: $1.91 |
| 92160 |
92160-3829 |
DAMPER,TACHOMETER Price: $33.23 |
| 92160A |
92160-3830 |
DAMPER,TRIM METER Price: $26.85 |
| 92170 |
92173-1401 |
CLAMP This part replaces 92170-3718. Price: $13.67 |
