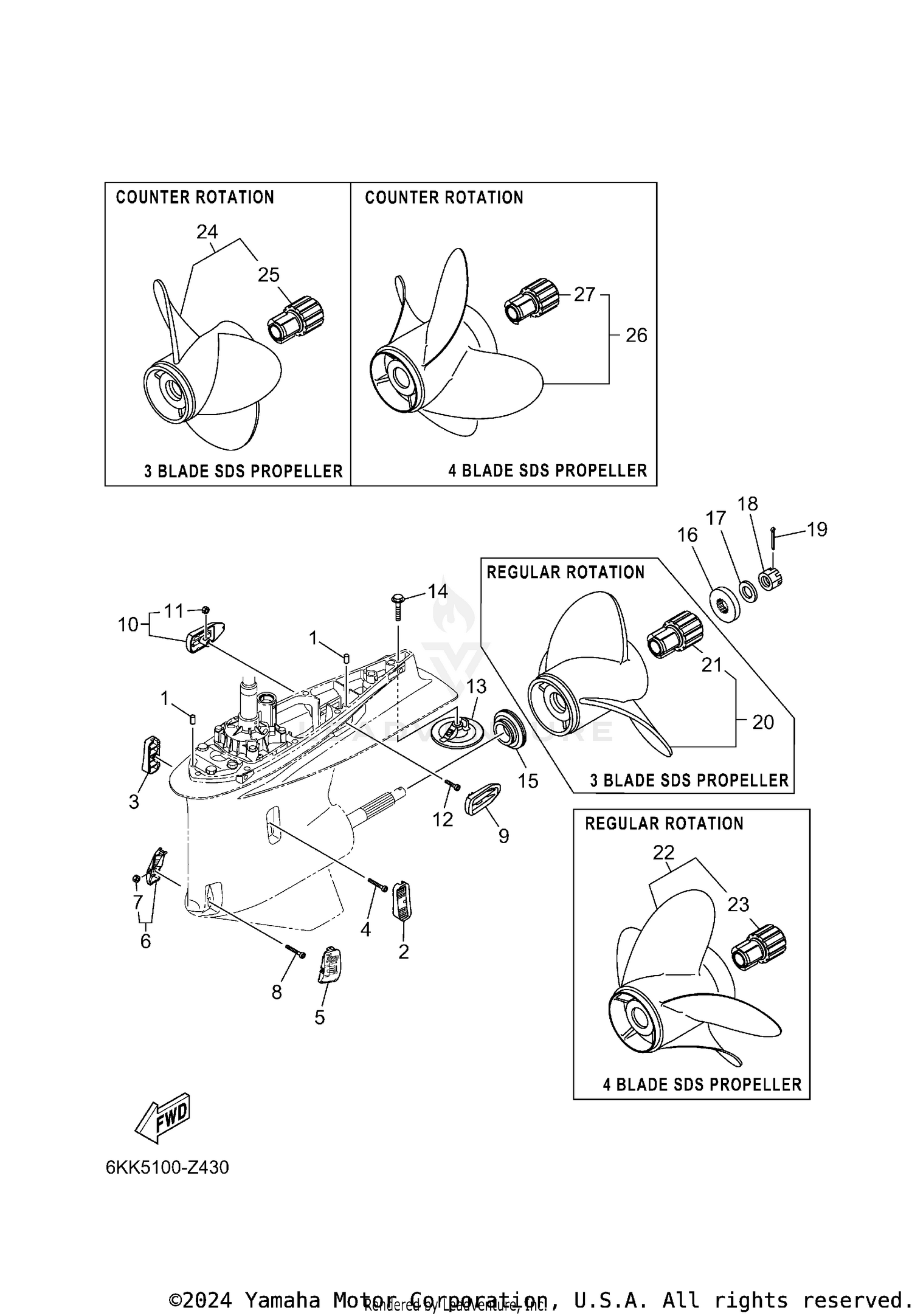

| Ref | Part Number | Description |
|---|
| 1 |
93608-16M16-00 |
PIN, DOWEL Price: $2.85 |
| 2 |
6KA-45214-00-00 |
COVER, WATER INLET 1 Price: $12.85 |
| 3 |
6KA-45215-00-00 |
COVER, WATER INLET 2 Price: $21.35 |
| 4 |
90110-05039-00 |
BOLT, HEXAGON SOCKET HEAD Price: $3.55 |
| 5 |
6CE-45224-00-00 |
COVER, WATER INLET 3 Price: $16.75 |
| 6 |
6CE-45225-00-00 |
COVER, WATER INLET 4 Price: $16.75 |
| 7 |
90185-05904-00 |
NUT, SELF-LOCKING This part replaces 90185-05002-00. Price: $2.25 |
| 8 |
90110-05039-00 |
BOLT, HEXAGON SOCKET HEAD Price: $3.55 |
| 9 |
6KA-45254-00-00 |
COVER, OUTLET 1 Price: $17.70 |
| 10 |
6KA-45255-00-00 |
COVER, OUTLET 2 Price: $17.70 |
| 11 |
90185-05904-00 |
NUT, SELF-LOCKING This part replaces 90185-05002-00. Price: $2.25 |
| 12 |
91380-05020-00 |
BOLT Price: $2.50 |
| 13 |
6CE-45373-00-00 |
ANODE Price: $42.35 |
| 14 |
90105-10M00-00 |
BOLT, WASHER BASED Price: $5.20 |
| 15 |
69J-45987-00-00 |
SPACER 1 Price: $160.95 |
| 16 |
688-45997-01-00 |
SPACER 2 Price: $47.75 |
| 17 |
92990-18200-00 |
WASHER 1 Price: $2.55 |
| 18 |
90171-18M04-00 |
NUT, CASTLE Price: $20.20 |
| 19 |
91490-40030-00 |
PIN. COTTER Price: $4.50 |
| 21 |
6CE-45C81-10-00 |
DAMPER RUBBER, PROPELLER 1 Price: $94.00 |
| 23 |
6CE-45C81-10-00 |
DAMPER RUBBER, PROPELLER 1 Price: $94.00 |
| 25 |
6CE-45C81-10-00 |
DAMPER RUBBER, PROPELLER 1 Price: $94.00 |
