| Ref | Part Number | Description |
|---|
| 2 |
507032476 |
Lever With Parking Lock Price: $104.99 |
| 3 |
507032478 |
Master Cylinder Reservoir Ass'y Price: $109.99 |
| 4 |
415129356 |
Screw M4 X 20 Price: $2.29 |
| 5 |
415030000 |
Pin Ass'y Price: $19.99 |
| 6 |
507032479 |
Microswitch Price: $104.99 |
| 7 |
515175232 |
Male Terminal Price: $1.59 |
| 8 |
719000049 |
Clamps Price: $14.83 |
| 9 |
250000447 |
Hex. Flange Screw M6 X 25 Price: $2.19 |
| 10 |
507032551 |
Banjo Bolt Price: $5.61 |
| 11 |
705601628 |
Copper Washer This part replaces 705600310. Price: $4.59 |
| 13 |
507032473 |
Brake Pads Kit Price: $52.99 |
| 14 |
507032722 |
Brake Spring Kit This part replaces 507032474. Price: $38.99 |
| 15 |
507032475 |
Bleeder Price: $19.99 |
| 16 |
414989700 |
BOOT-QTS 20 - Call your local BRP dealership Price: $22.49 |
| 17 |
250000764 |
Hex. Button Head Screw M8 X 1.25 X 35 This part replaces 250000301. Price: $2.09 |
| 18 |
507032551 |
Banjo Bolt Price: $5.61 |
| 19 |
705601628 |
Copper Washer This part replaces 705600310. Price: $4.59 |
| 20 |
507032513 |
Disk Price: $243.99 |
| 21 |
Not |
Available As Spare Part - Loctite 8151 (Antiseize) |
| 22 |
293300134 |
O-Ring Price: $2.39 |
| 23 |
507032525 |
Disk Protector Price: $65.99 |
| 23a |
518328661 |
Counter Plate Price: $19.99 |
| 24 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 Price: $1.49 |
| 25 |
507032548 |
Hose, Steel Braided Price: $47.49 |
| 26 |
293650256 |
Clamp This part replaces 715900250. Price: $5.59 |
| 27 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 Price: $1.49 |

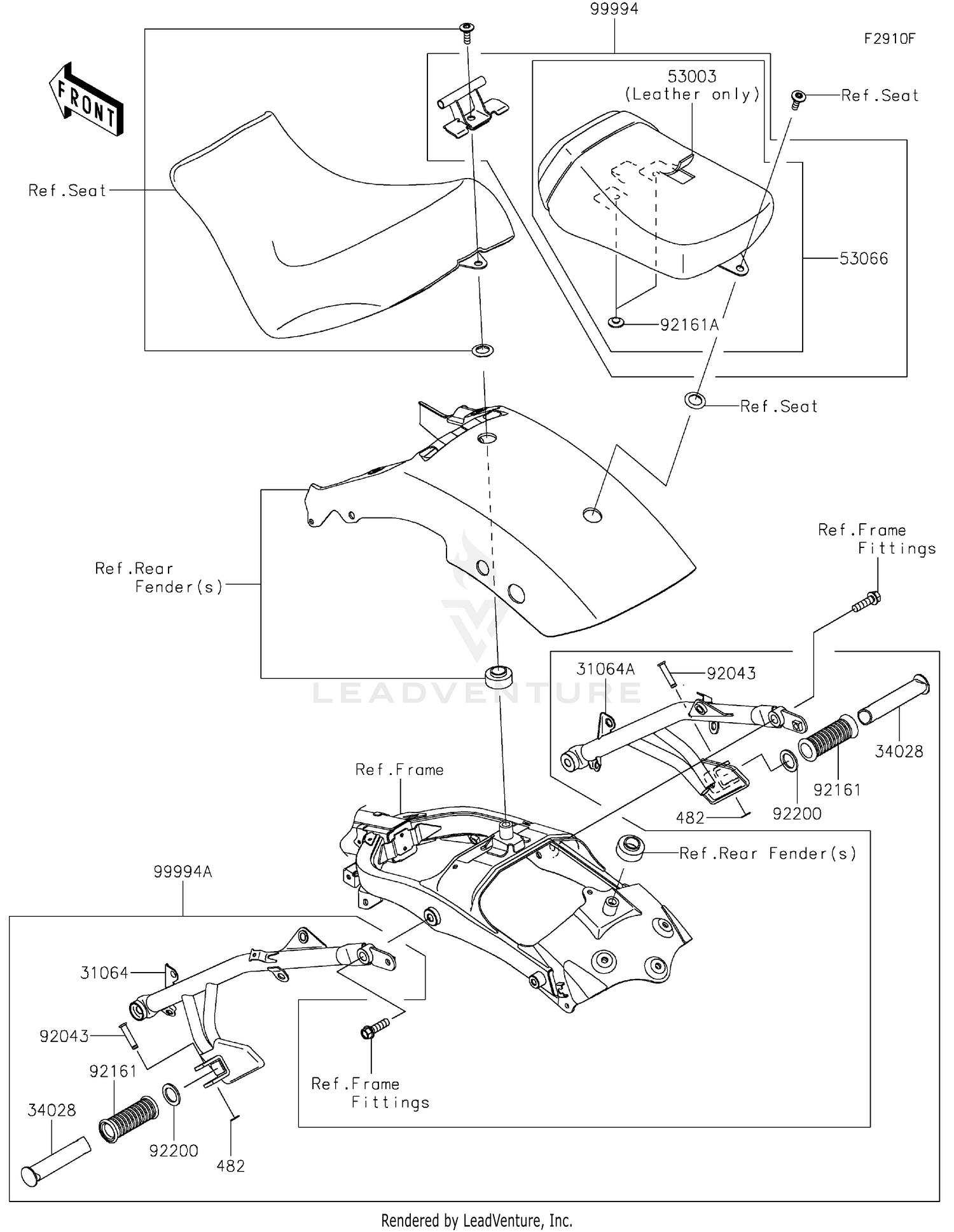

| 482 |
482EA7000 |
CIRCLIP-TYPE-E Price: $3.92 |
| 31064 |
31064-0650-18R |
PIPE-COMP,RR,LH,F.S.BLACK Price: $179.20 |
| 31064A |
31064-0651-18R |
PIPE-COMP,RR,RH,F.S.BLACK Price: $179.20 |
| 34028 |
34028-0344 |
STEP,RR Price: $23.45 |
| 53003 |
53003-0568-MA |
LEATHER,RR SEAT,BLACK This part replaces 53003-0388-MA. Price: $101.04 |
| 53066 |
53066-0735-12Y |
SEAT-ASSY,RR,BLACK+BL This part replaces 53066-0446-12Y. Price: $220.18 |
| 92043 |
92043-1339 |
PIN,8X36.5 Price: $7.84 |
| 92161 |
92161-0232 |
DAMPER,STEP Price: $16.53 |
| 92161A |
92161-1685 |
DAMPER,8X22X10 Price: $0.88 |
| 92200 |
92200-1482 |
WASHER,22.5X33X2.3 Price: $2.75 |
| 99994 |
99994-1558 |
KIT-ACCESSORY,PASSENGER SEAT This part replaces 99994-0569. Price: $193.89 |
