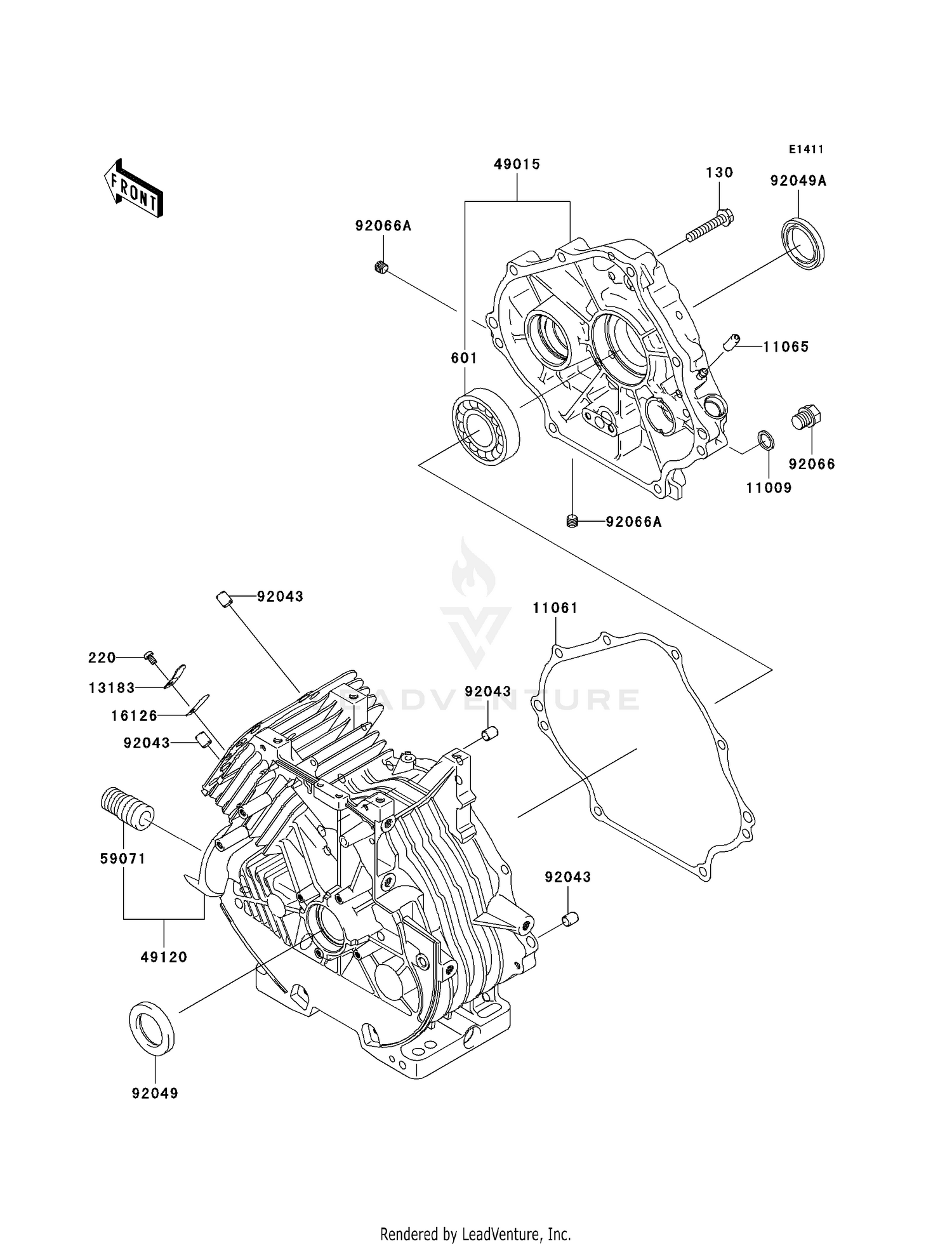

CRANKCASE
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 130 | 130BA0845 | BOLT-FLANGED,8X45 Price: $1.61 |
| 220 | 220AA0508 | SCREW-PAN-CROS,5X8 Price: $0.47 |
| 601 | 601A6207 | BEARING-BALL Price: $19.53 |
| 11009 | 11009-2175 | GASKET Price: $1.14 |
| 11061 | 99996-6128 | KIT,GASKET&BOLTS This part replaces 11061-7028. Price: $23.99 |
| 11065 | 11065-7005 | CAP Price: $1.15 |
| 13183 | 13183-2120 | PLATE Price: $0.43 |
| 16126 | 16126-2146 | VALVE Price: $0.62 |
| 49015 | 49015-7050 | COVER-CRANKCASE Price: $118.69 |
| 49120 | 49120-6208 | CRANKCASE-COMP This part replaces 49120-6162. Price: $410.41 |
| 59071 | 59071-2079 | JOINT Price: $6.36 |
| 92043 | 92043-7001 | PIN Price: $0.62 |
| 92049 | 92049-7010 | SEAL-OIL,SD 35X48X8 R HS Price: $3.08 |
| 92049A | 92049-7018 | SEAL-OIL Price: $3.93 |
| 92066 | 92066-2253 | PLUG,14X12 Price: $1.82 |
