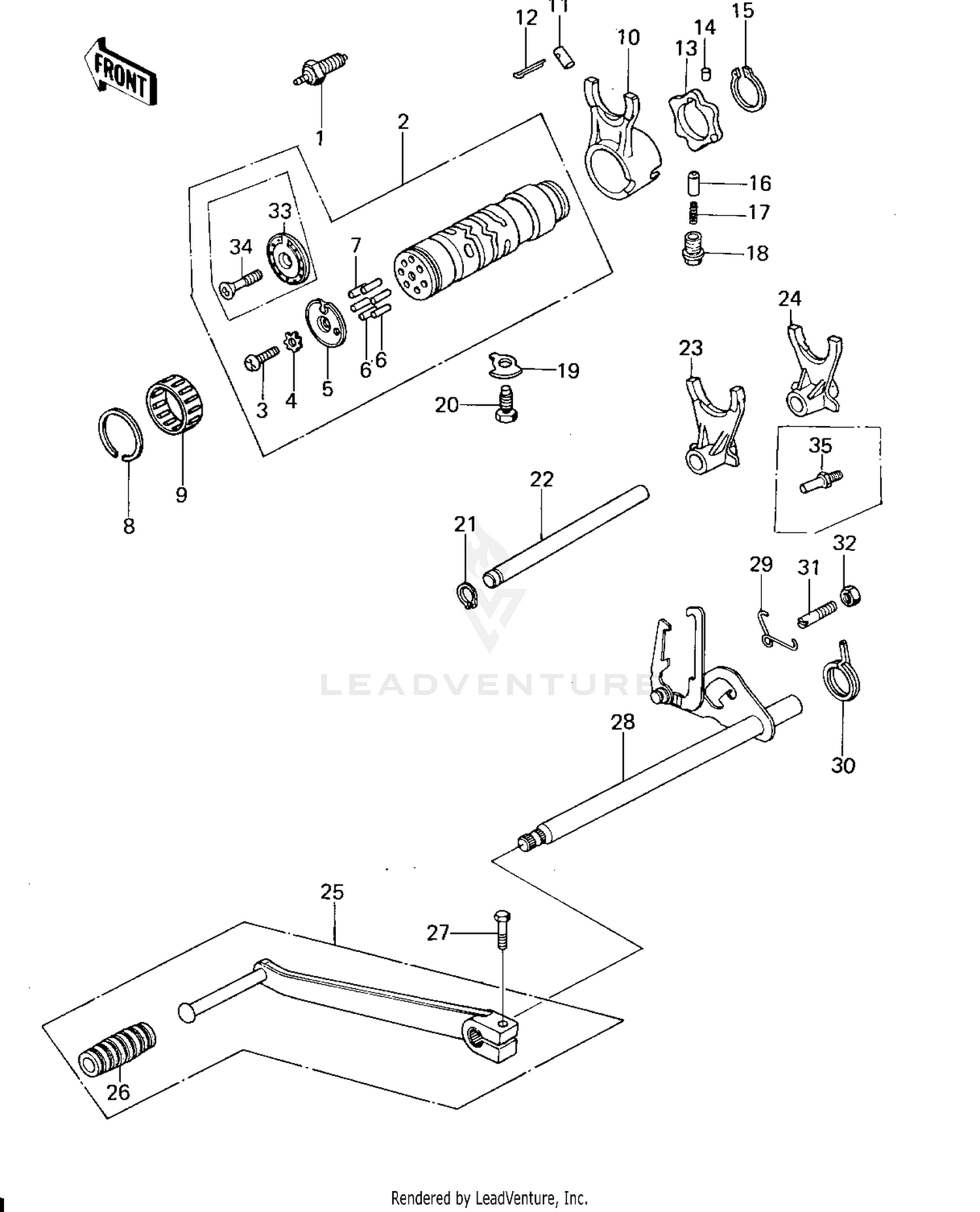

| Ref | Part Number | Description |
|---|
| 1 |
13151-5002 |
SWITCH,NEUTRAL Price: $21.17 |
| 2 |
13239-1005 |
DRUM ASSY,SHIFT Price: $102.43 |
| 6 |
92042-030 |
PIN,DOWEL,4X13.8 Price: $3.92 |
| 7 |
92042-014 |
PIN,DOWEL,4X15.8 Price: $0.43 |
| 8 |
92033-035 |
CIRCLIP,37MM Price: $7.55 |
| 9 |
92046-051 |
BRG,NEDL,37BTM4312 Price: $25.09 |
| 11 |
92042-021 |
DOWEL PIN,8X18 Price: $11.51 |
| 12 |
550AA3020 |
PIN-COTTER,3.0X20 This part replaces 550D3020. Price: $1.78 |
| 13 |
13145-1058 |
CAM-CHANGE DRUM Price: $22.72 |
| 14 |
610A0406 |
ROLLER,4X6 Price: $4.31 |
| 15 |
480J3000 |
CIRCLIP-TYPE-C,30MM Price: $6.22 |
| 16 |
92043-076 |
PIN Price: $11.71 |
| 17 |
92081-112 |
SPRING Price: $6.16 |
| 18 |
92001-131 |
BOLT,10MM Price: $19.90 |
| 19 |
92024-074 |
WASHER,LOCK,10MM Price: $4.38 |
| 20 |
92001-174 |
BOLT,HEX HEAD,10X26 Price: $8.19 |
| 21 |
480J1200 |
CIRCLIP-TYPE-C,12MM Price: $0.62 |
| 22 |
49047-5003 |
ROD-SHIFT Price: $24.34 |
| 25 |
13242-022 |
PEDAL ASSY,GEAR SHIFT Price: $107.84 |
| 26 |
92161-2382 |
DAMPER,CHANGE PEDAL This part replaces 92160-1036. Price: $5.05 |
| 27 |
112BA0620 |
BOLT-UPSET This part replaces 112G0620. Price: $2.28 |
| 28 |
13161-042 |
LEVER ASSY,GEAR SFT Price: $123.33 |
| 29 |
92083-018 |
SPRING,KICK PAWL Price: $9.80 |
| 30 |
92083-028 |
SPRING,CHG PEDL RTRN Price: $15.20 |
