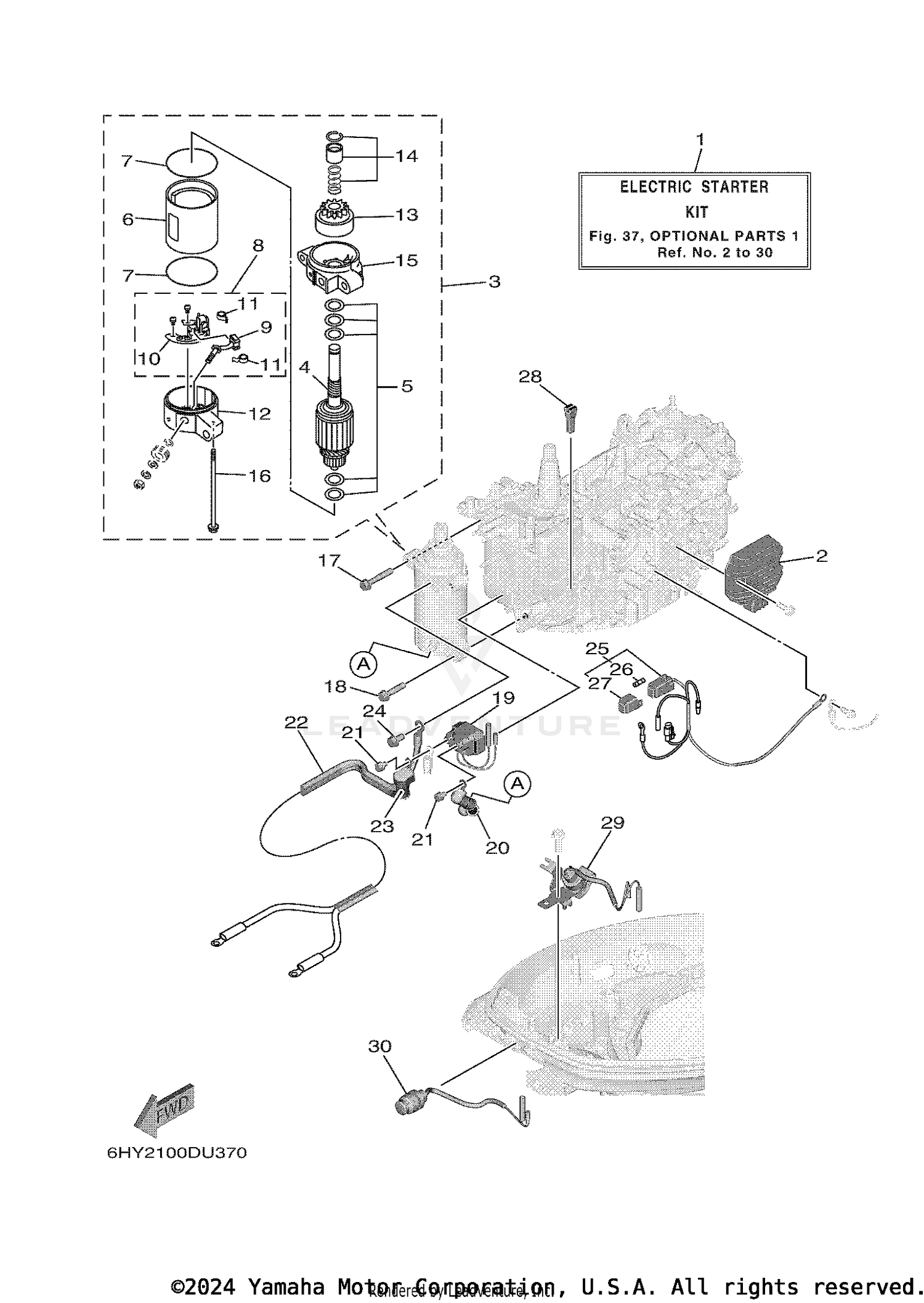

| Ref | Part Number | Description |
|---|
| 1 |
6FM-W8180-05-00 |
ELECTRIC STARTER KIT This part replaces 6FM-W8180-03-00. Price: $1,085.50 |
| 2 |
6FM-81960-10-00 |
RECTIFIER & REGULATOR ASSY Price: $244.00 |
| 3 |
6AH-81800-10-00 |
STARTING MOTOR ASSY This part replaces 6AH-81800-01-00. Price: $919.60 |
| 4 |
689-81850-12-00 |
ARMATURE ASSY Price: $271.45 |
| 5 |
689-81809-11-00 |
WASHER KIT Price: $12.55 |
| 6 |
689-81810-11-00 |
STATOR ASSY Price: $244.75 |
| 7 |
689-81847-11-00 |
O-RING Price: $13.25 |
| 8 |
689-81840-11-00 |
BRUSH HOLDER ASSY Price: $51.50 |
| 9 |
689-81811-11-00 |
BRUSH 1 Price: $21.15 |
| 10 |
689-81812-11-00 |
BRUSH 2 Price: $15.65 |
| 11 |
689-81813-10-00 |
SPRING, BRUSH Price: $14.75 |
| 12 |
6AH-81820-01-00 |
REAR BRACKET ASSY Price: $173.05 |
| 13 |
689-81807-13-00 |
GEAR ASSY, STARTING MOTOR This part replaces 689-81807-12-00. Price: $249.05 |
| 14 |
68T-81857-00-00 |
PINION STOPPER SET Price: $59.65 |
| 15 |
6AH-81830-00-00 |
FRONT BRACKET ASSY Price: $143.40 |
| 16 |
689-81826-10-00 |
BOLT Price: $8.49 |
| 17 |
97513-08545-00 |
BOLT, WITH WASHER Price: $2.99 |
| 18 |
97513-08535-00 |
BOLT, WITH WASHER Price: $1.99 |
| 19 |
6FM-81940-00-00 |
STARTER RELAY ASSY Price: $111.75 |
| 20 |
6AH-82117-01-00 |
WIRE, LEAD Price: $27.30 |
| 21 |
97E95-06610-00 |
BOLT, HEXAGON W/W Price: $1.00 |
| 22 |
6FM-82105-01-00 |
BATTERY CABLE (L: Price: $168.35 |
| 23 |
6P2-82119-00-00 |
COVER, LEAD WIRE Price: $12.55 |
| 24 |
97E95-08516-00 |
BOLT, HEXAGON W/W Price: $1.35 |
| 25 |
6FM-81971-00-00 |
WIRE, LEAD Price: $89.40 |
| 26 |
5JJ-82151-20-00 |
FUSE (20A-BL) This part replaces 67F-82151-00-00. Price: $8.49 |
| 27 |
67F-8215B-10-00 |
CAP (YELLOW) Price: $14.75 |
| 28 |
67F-2812A-00-00 |
PULLER, FUSE Price: $5.55 |
| 29 |
6FM-82540-00-00 |
NEUTRAL SWITCH ASSY Price: $135.75 |
