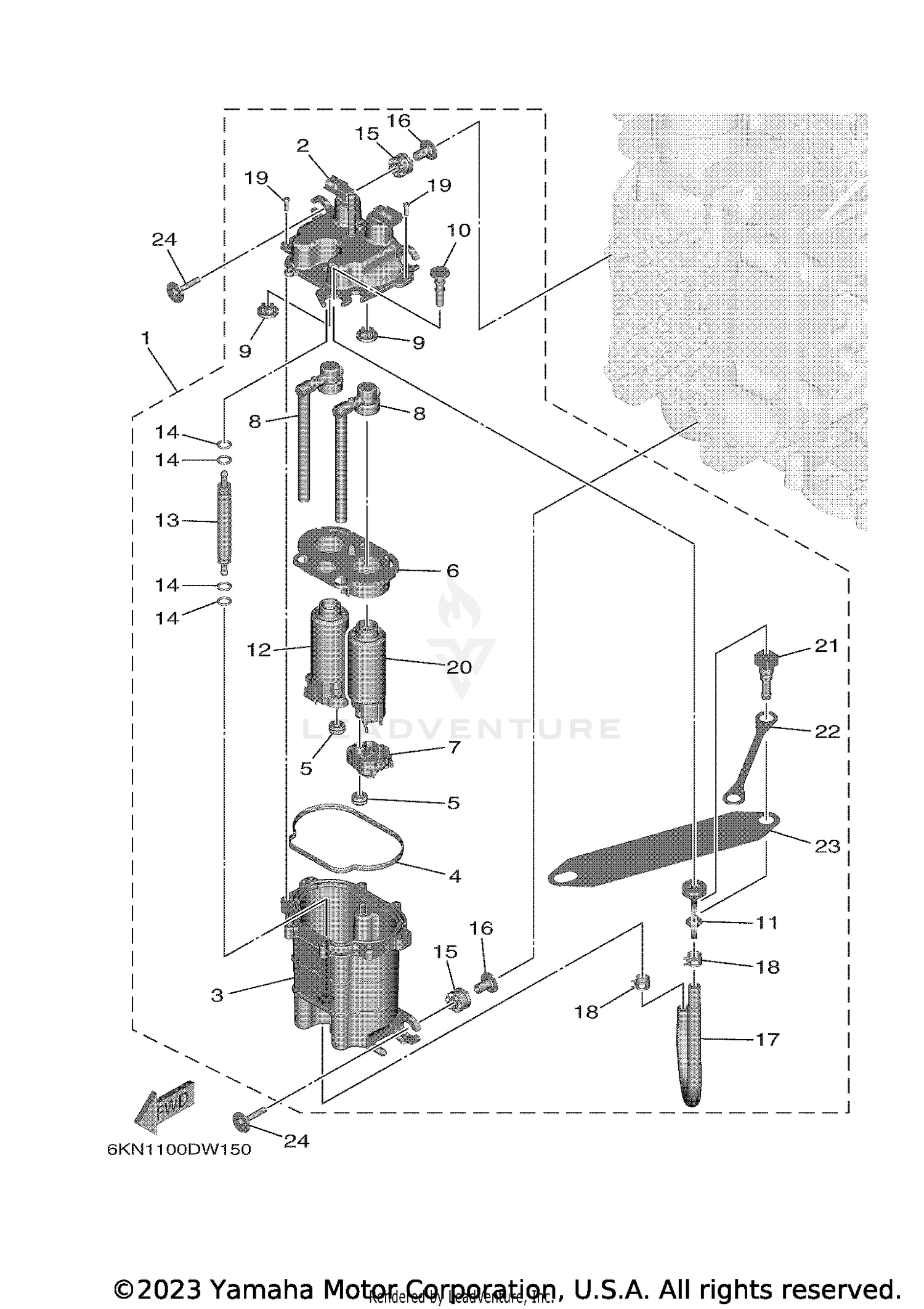

VAPOR SEPARATOR
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6GR-24220-03-00 | FUEL TANK COMP. 2 Price: $1,348.30 |
| 2 | 6GR-24223-00-00 | COVER, FUEL TANK ASS Price: $297.55 |
| 4 | 6GR-24218-00-00 | GASKET Price: $103.90 |
| 5 | 6GR-13781-00-00 | DAMPER, PUMP Price: $56.35 |
| 6 | 6GR-2441R-00-00 | PLATE, BAFFLE 1 Price: $21.25 |
| 7 | 6GR-244A1-00-00 | CASE, PUMP 1 Price: $5.50 |
| 8 | 6GR-13938-00-00 | PIPE Price: $61.25 |
| 9 | 6GR-13593-00-00 | DAMPER Price: $43.90 |
| 10 | 6GR-24196-00-00 | PLUG, DRAIN Price: $43.90 |
| 11 | 6GR-2419A-00-00 | HOLDER Price: $24.45 |
| 12 | 6GR-24430-00-00 | FUEL PUMP ASSY Price: $353.45 |
| 13 | 6GR-21841-00-00 | COOLER Price: $52.65 |
| 14 | 6FM-14562-00-00 | O-RING Price: $11.35 |
| 15 | 6CB-13593-00-00 | DAMPER Price: $32.40 |
| 16 | 6GR-13716-00-00 | COLLAR Price: $7.05 |
| 17 | 6GR-14197-00-00 | PIPE Price: $170.55 |
| 18 | 68V-13577-01-00 | CLIP Price: $15.55 |
| 19 | 6GR-14567-00-00 | SCREW Price: $3.80 |
| 20 | 6GR-24420-10-00 | FUEL PUMP ASSY Price: $396.30 |
| 21 | 6AW-24300-11-00 | FUEL PIPE JOINT Price: $29.35 |
| 22 | 6GR-24113-00-00 | PLATE, CONNECTING Price: $3.65 |
| 23 | 6GR-2415H-00-00 | LABEL, WARNING Price: $35.45 |
