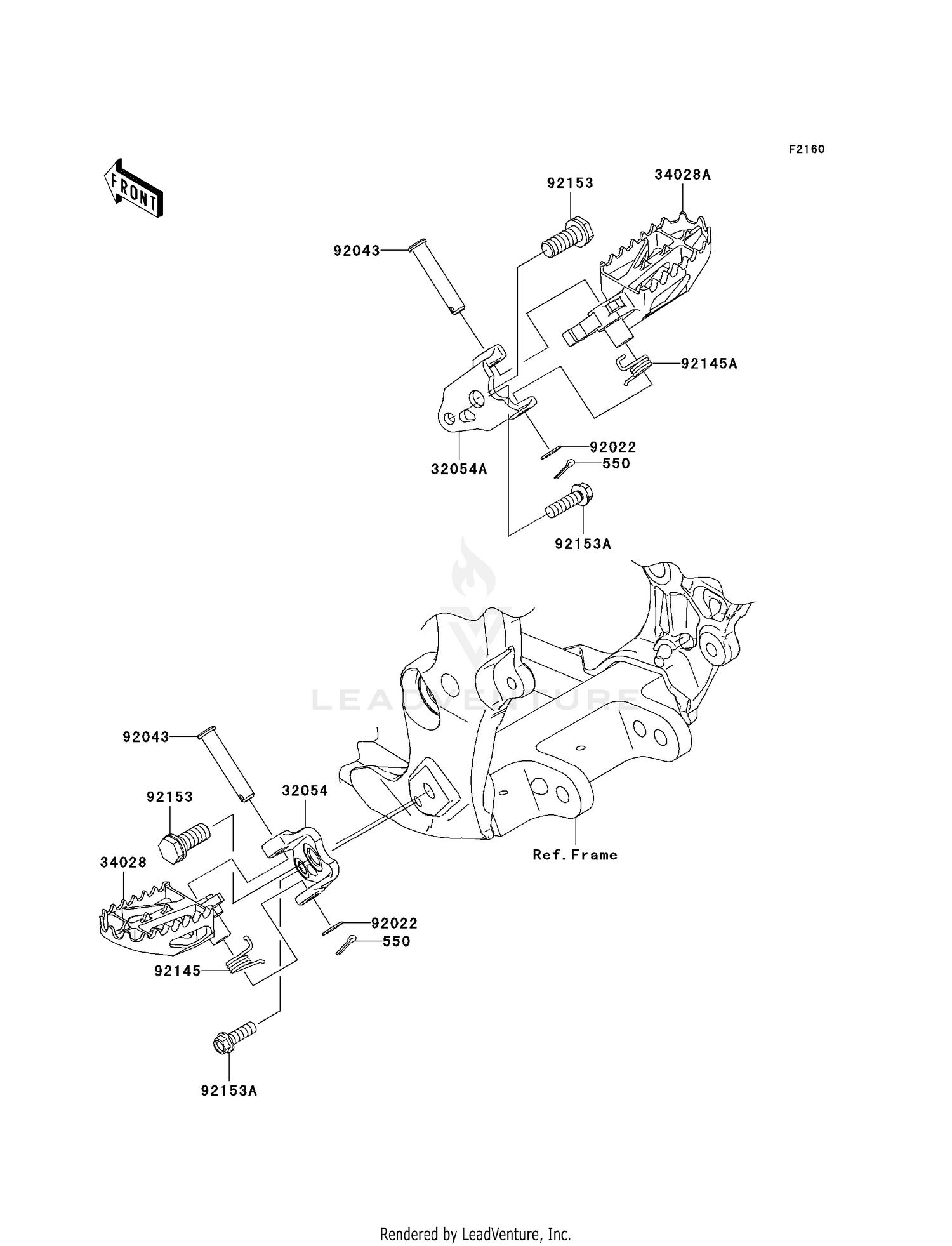

FOOTRESTS
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 550 | 550S3020 | PIN-COTTER,3.0X20 Price: $3.63 |
| 32054 | 32054-0018 | BRACKET-STEP,LH Price: $213.11 |
| 32054A | 32054-0019 | BRACKET-STEP,RH Price: $213.11 |
| 34028 | 34028-0026 | STEP,LH Price: $221.08 |
| 34028A | 34028-0027 | STEP,RH Price: $221.08 |
| 92022 | 92022-1829 | WASHER,10.2X16X1 Price: $4.31 |
| 92043 | 92043-0090 | PIN,10X53 Price: $13.60 |
| 92145 | 92145-0307 | SPRING,STEP,LH Price: $5.89 |
| 92145A | 92145-0308 | SPRING,STEP,RH Price: $5.89 |
| 92153 | 92153-0653 | BOLT,FLANGED,12X23 Price: $7.75 |
