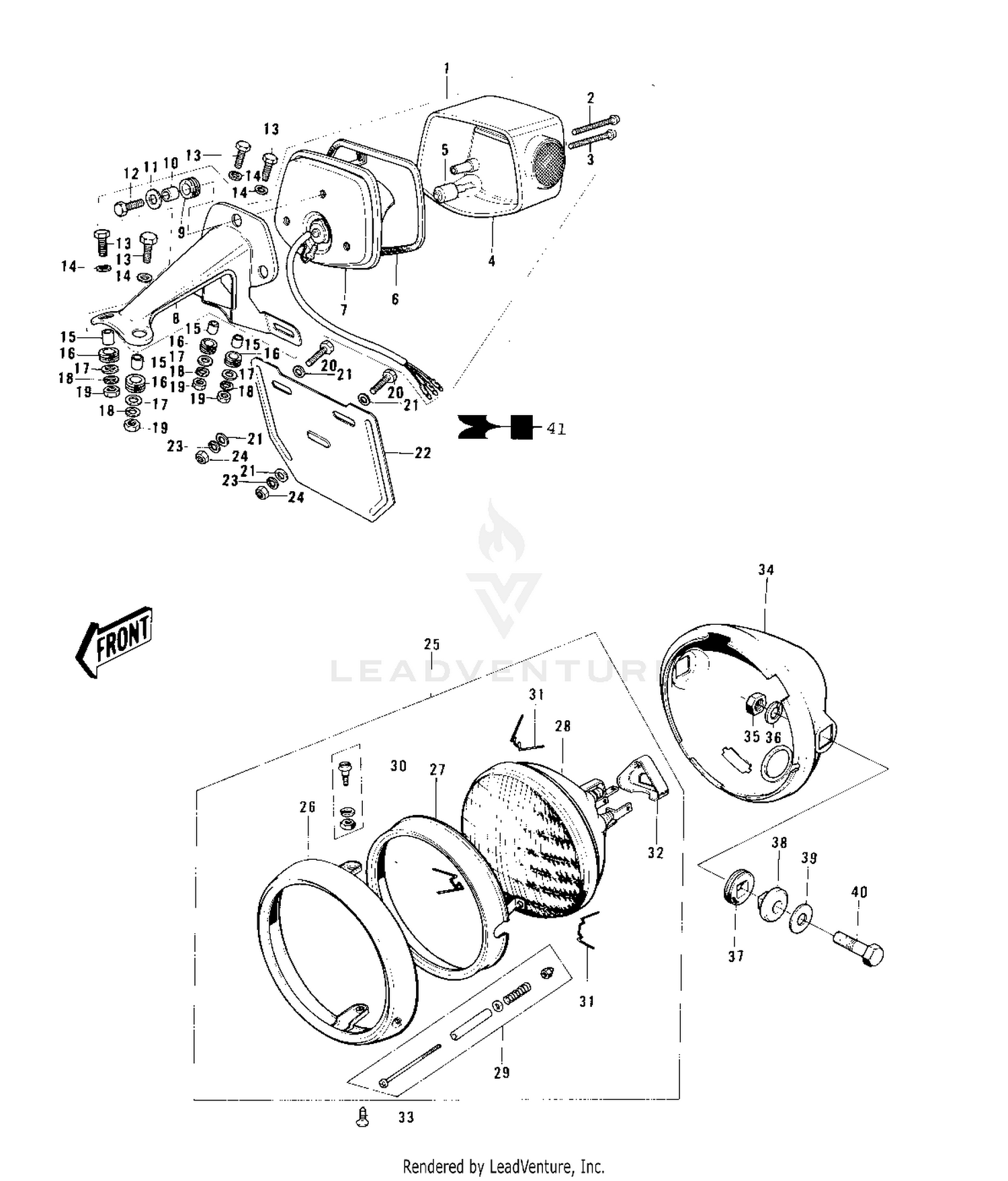

| Ref | Part Number | Description |
|---|
| 2 |
220R0455 |
SCREW Price: $5.03 |
| 3 |
220E0450 |
SCREW PAN HEAD 4X50 Price: $6.15 |
| 4 |
23026-028 |
LENS,TAIL LAMP Price: $56.62 |
| 5 |
92069-074 |
BULB,60-32/3CP Price: $5.75 |
| 6 |
23028-019 |
GASKET,TAIL LAMP LENS Price: $9.80 |
| 7 |
23027-1018 |
BODY COMP TAIL LAMP Price: $71.88 |
| 9 |
92075-076 |
DAMPER RUBBER Price: $4.78 |
| 10 |
92027-129 |
COLLAR,6.8X10X8.5 Price: $5.00 |
| 11 |
92200-0283 |
WASHER,6.5X20X1.6 This part replaces 92022-125. Price: $1.40 |
| 12 |
110B620 |
UNAVAILABLE IN PRICE BOOK Price: Call Us |
| 13 |
112BA0630 |
BOLT-UPSET This part replaces 112G0630. Price: $1.38 |
| 14 |
92022-237 |
WASHER,6.5X22X1.6 Price: $3.92 |
| 15 |
92027-120 |
COLLAR,6.8X10X10.5 Price: $5.00 |
| 16 |
92075-209 |
DAMPER Price: $4.69 |
| 17 |
92200-0283 |
WASHER,6.5X20X1.6 This part replaces 92022-125. Price: $1.40 |
| 18 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 19 |
311AA0600 |
NUT-HEX,6MM This part replaces 311B0600. Price: $0.96 |
| 20 |
112BA0620 |
BOLT-UPSET This part replaces 112G0620. Price: $2.28 |
| 21 |
410AA0600 |
WASHER-PLAIN-SMALL This part replaces 410B0600. Price: $1.31 |
| 22 |
11034-1117 |
BRACKET,LICENSE PLATE Price: $16.60 |
| 23 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 24 |
311AA0600 |
NUT-HEX,6MM This part replaces 311B0600. Price: $0.96 |
| 25 |
23003-021 |
LAMP UNIT,HEAD Price: $142.21 |
| 26 |
23006-042 |
RIM,HEAD LAMP Price: $62.05 |
| 27 |
23072-002 |
RETAINER,SEALED BEAM Price: $39.06 |
| 28 |
23007-055 |
SEALED BEAM UNIT Price: $71.24 |
| 29 |
23013-5001 |
SCREW ASSY,FOCUS AJST Price: $15.85 |
| 30 |
23013-007 |
SCREW SET,LENS UNIT Price: $6.35 |
| 31 |
23009-015 |
CLAMP,HEAD LAMP LENS Price: $5.44 |
| 32 |
23081-001 |
COVER,HD LAMP SOCKET Price: $8.08 |
| 33 |
220AA0512 |
SCREW-PAN-CROS,5X12 This part replaces 23019-025. Price: $0.47 |
| 35 |
314AA1000 |
NUT-HEX-FINE This part replaces 314B1000. Price: $0.68 |
| 36 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 37 |
23066-011 |
DAMPER RUBBER Price: $4.95 |
| 38 |
23052-005 |
COLLAR Price: $15.16 |
| 39 |
92200-1313 |
WASHER This part replaces 411D1000. Price: $4.78 |
| 40 |
92007-041 |
BOLT,HEX HEAD,10X30 Price: $12.16 |
