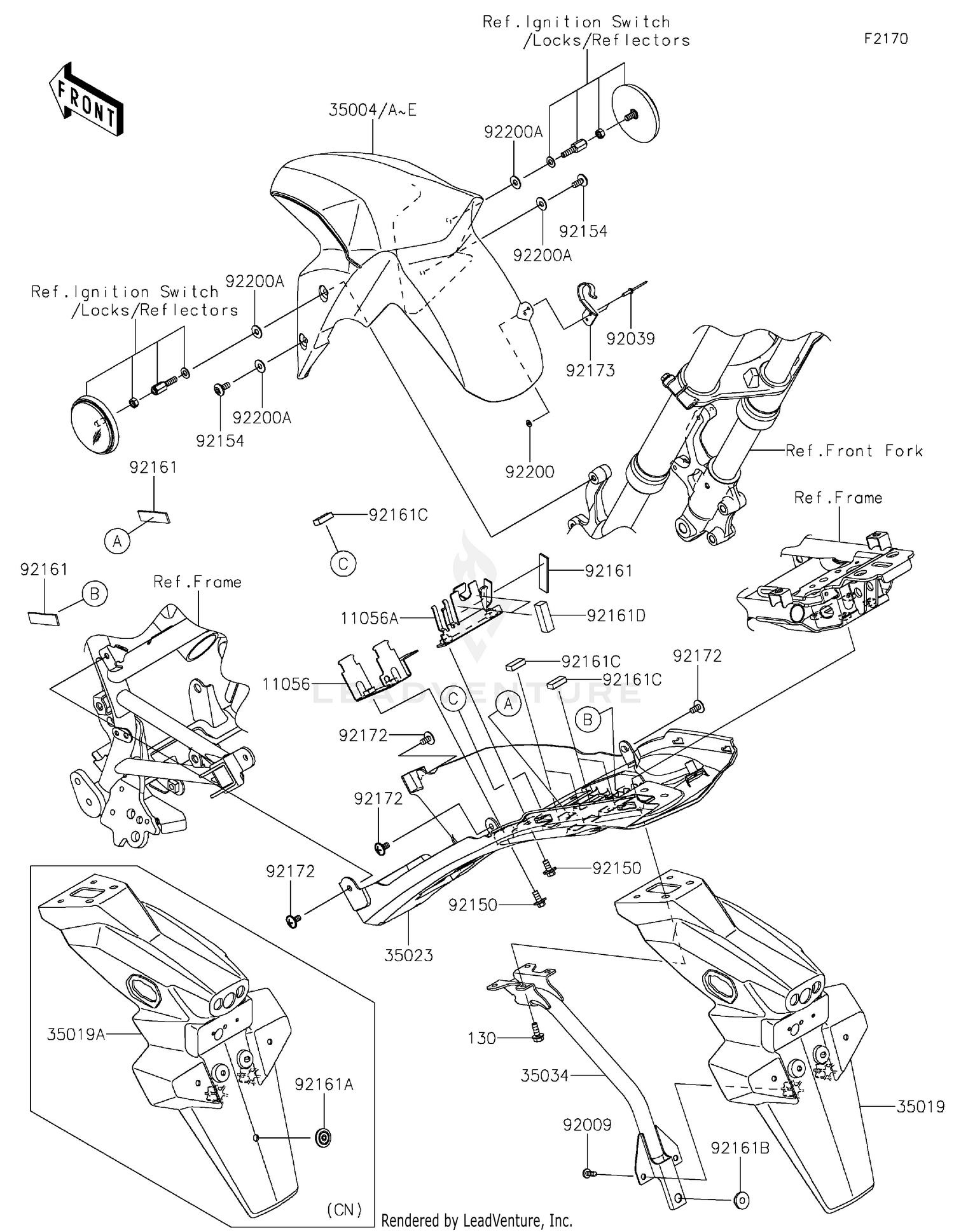

Fenders
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 130 | 130BA0616 | BOLT-FLANGED,6X16 Price: $1.20 |
| 11056 | 11056-7604 | BRACKET Price: $7.59 |
| 11056A | 11056-7605 | BRACKET Price: $24.54 |
| 35004 | 35004-0352-36P | FENDER-FRONT,P.M.GRAY Price: $93.91 |
| 35023 | 35023-0410 | FENDER-REAR Price: $48.48 |
| 35034 | 35034-0597 | REINFORCE Price: $56.15 |
| 92009 | 92009-3845 | SCREW,6X14 Price: $1.06 |
| 92039 | 92039-1231 | RIVET Price: $1.81 |
| 92150 | 92150-1340 | BOLT,6X14 Price: $5.07 |
| 92154 | 92154-2161 | BOLT,SOCKET,6X14 Price: $1.19 |
| 92161 | 92161-1359 | DAMPER Price: $1.19 |
| 92161B | 92161-1810 | DAMPER Price: $1.19 |
| 92161C | 92161-1842 | DAMPER Price: $0.95 |
| 92161D | 92161-1924 | DAMPER,10X35X11 Price: $2.32 |
| 92172 | 92172-0394 | SCREW,6X12 Price: $1.15 |
| 92173 | 92173-1485 | CLAMP Price: $3.29 |
| 92200 | 92200-1251 | WASHER,3.5X8X1 Price: $1.00 |
