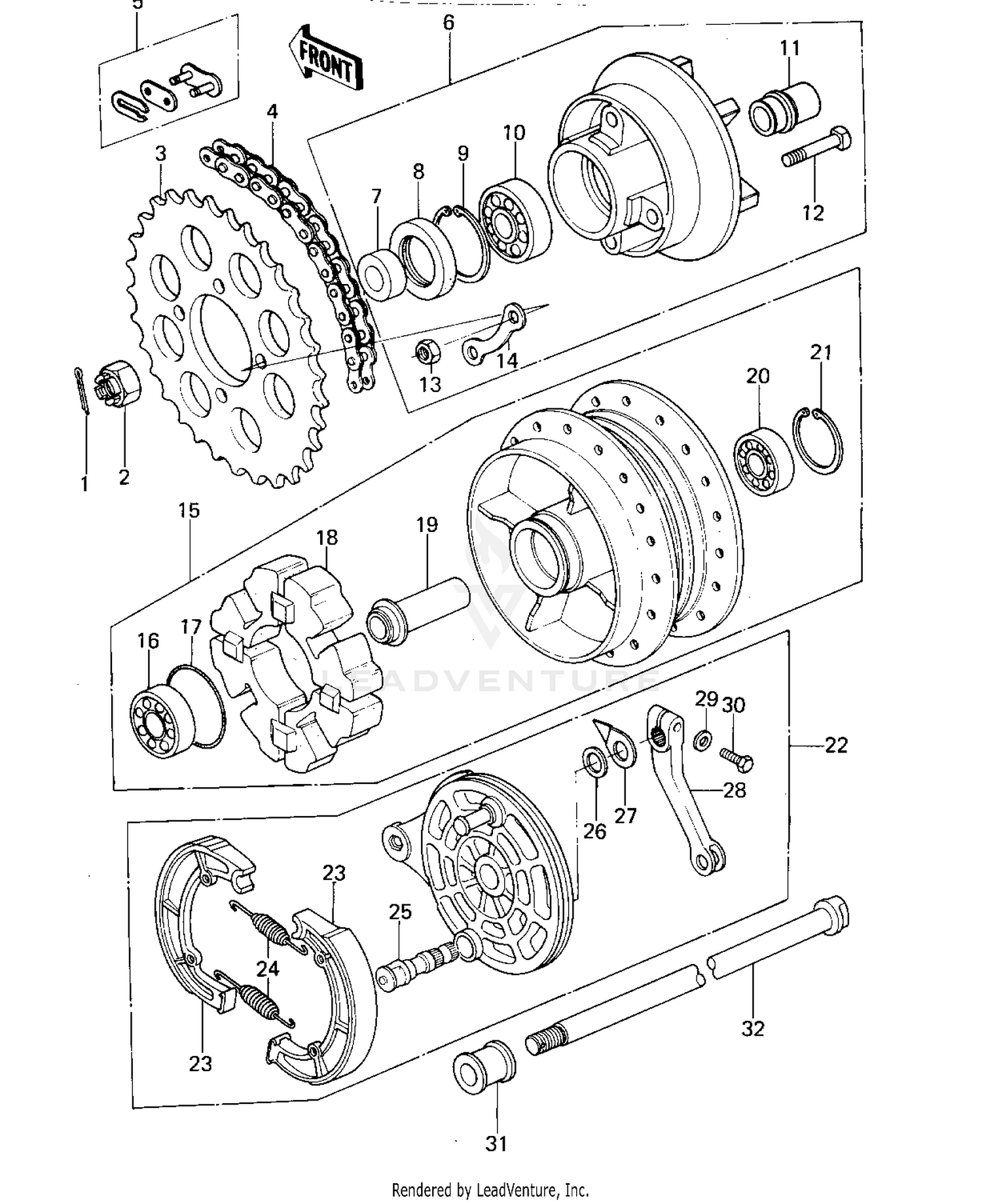

| Ref | Part Number | Description |
|---|
| 1 |
550AA4035 |
PIN-COTTER,4.0X35 This part replaces 550D4035. Price: $2.17 |
| 2 |
92015-1951 |
NUT,CASTLE,16MM This part replaces 92015-055. Price: $11.50 |
| 3 |
42041-145 |
REAR SPROCKET,45T Price: $171.45 |
| 4 |
92057-092 |
DR CHAIN 530X100 Price: $162.09 |
| 5 |
92058-008 |
CHAIN JOINT 530 Price: $8.31 |
| 6 |
42033-1002 |
COUPLING ASSY,REAR Price: $191.57 |
| 7 |
92027-1014 |
COLLAR,COUPLING,L.H. Price: $26.20 |
| 8 |
92049-1287 |
SEAL-OIL This part replaces 92052-006. Price: $13.08 |
| 9 |
92033-1043 |
RING-SNAP,52MM Price: $8.05 |
| 10 |
601B6205 |
BEARING BALL #6205 Price: $19.57 |
| 11 |
42036-1002 |
SLEEVE,COUPLING Price: $37.52 |
| 12 |
92003-156 |
BOLT, RR SPROCKET FIT Price: $10.98 |
| 13 |
314AA1000 |
NUT-HEX-FINE This part replaces 314B1000. Price: $0.68 |
| 14 |
92088-005 |
WASHER SPROCKET LOCK Price: $6.24 |
| 15 |
41034-1005 |
DRUM-ASSY,RR BRK Price: $287.90 |
| 16 |
601B6303 |
BEARING-BALL,#6303C3 Price: $8.29 |
| 17 |
671B2560 |
O RING,60MM Price: $6.91 |
| 18 |
92075-1008 |
DAMPER,REAR HUB SHOCK Price: $71.48 |
| 19 |
92027-1013 |
COLLAR,REAR HUB BRG. Price: $15.77 |
| 20 |
601B6303U |
BEARING-BALL Price: $26.36 |
| 21 |
92033-1042 |
RING-SNAP,47MM Price: $4.22 |
| 22 |
41035-1453 |
PANEL-ASSY.-BRAKE, RR This part replaces 41035-1089. Price: $361.26 |
| 23 |
41048-1069 |
SHOE-BRAKE Price: $27.31 |
| 24 |
42020-004 |
SPRING-BRAKE SHOE Price: $8.51 |
| 25 |
41050-1001 |
CAM,BRAKE Price: $35.31 |
| 26 |
41051-003 |
DUST SHIELD-BRAKE CAM Price: $4.26 |
| 27 |
41085-004 |
INDICATOR,BRAKE SHOE Price: $14.51 |
| 28 |
41053-1001 |
LEVER,BRAKE CAM Price: $35.97 |
| 29 |
410AA0800 |
WASHER-PLAIN-SMALL,8MM This part replaces 410B0800. Price: $0.96 |
| 30 |
114G0828 |
BOLT HEX HEAD 8X28 Price: $5.21 |
| 31 |
92027-1015 |
COLLAR,REAR AXLE,R.H. Price: $11.93 |
