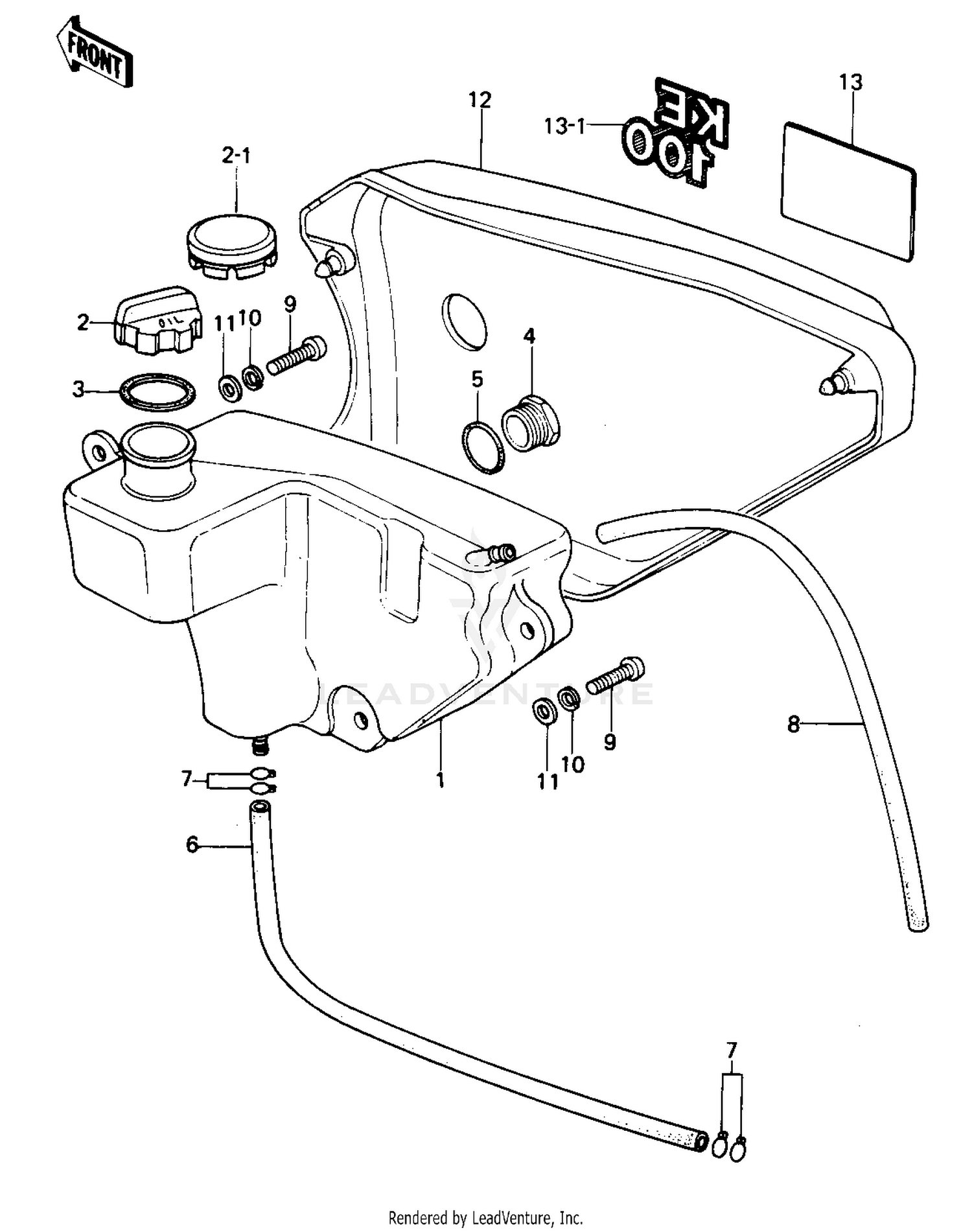

SIDE COVER/OIL TANK
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 4 | 52015-002 | GUAGE-OIL LEVEL Price: $6.00 |
| 5 | 92055-051 | O RING,20MM Price: $5.59 |
| 6 | 92059-072 | PIPE-OIL This part replaces 92059-073. Price: $38.33 |
| 7 | 92037-010 | CLAMP,TUBE Price: $3.92 |
| 8 | 700Q051000 | TUBE-PVC This part replaces 700Q05280. Price: $1.24 |
| 9 | 220AA0616 | SCREW-PAN-CROS,6X16 This part replaces 220B0616. Price: $3.04 |
| 10 | 461DA0600 | WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 11 | 92200-0283 | WASHER,6.5X20X1.6 This part replaces 92022-125. Price: $1.40 |
