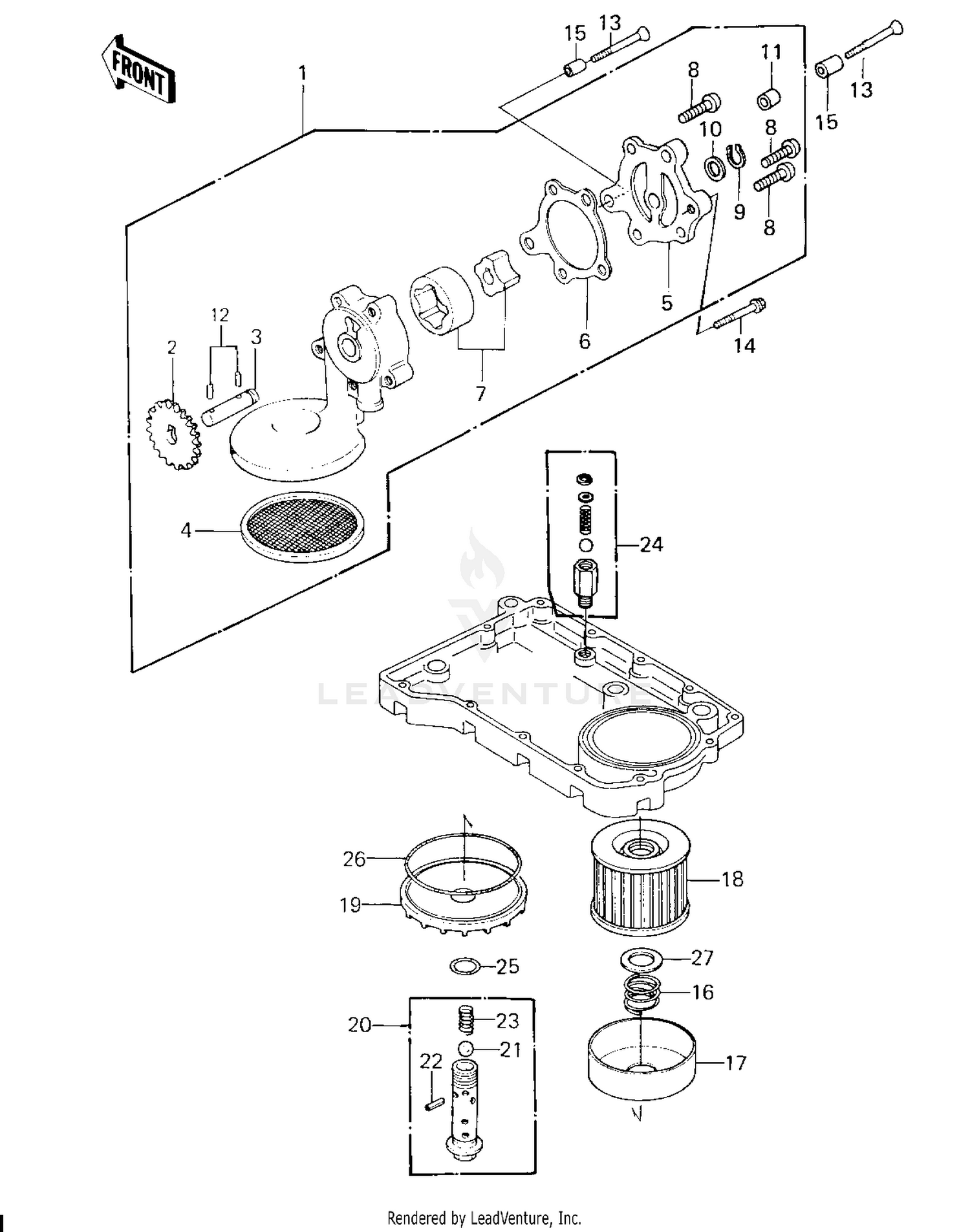

| Ref | Part Number | Description |
|---|
| 1 |
16082-064 |
OIL PUMP ASSY Price: $246.32 |
| 2 |
16085-025 |
GEAR,OIL PUMP,57T Price: $51.19 |
| 3 |
16086-004 |
SHAFT,OIL PUMP Price: $23.85 |
| 4 |
16111-004 |
STRAINER,OIL PUMP Price: $44.36 |
| 5 |
16142-005 |
COVER,OIL PUMP Price: $38.50 |
| 6 |
16145-004 |
GASKET,OIL PUMP COVER Price: $3.32 |
| 7 |
16154-003 |
ROTOR ASSY,OIL PUMP Price: $88.29 |
| 8 |
220AA0622 |
SCREW-PAN HEAD,6X22 This part replaces 220B0622. Price: $3.97 |
| 9 |
480J1100 |
CIRCLIP-TYPE-C,11MM Price: $1.24 |
| 10 |
92022-311 |
WASHER,11.2X15X1 Price: $3.92 |
| 11 |
92043-1302 |
PIN,DOWEL,8X10 Price: $1.03 |
| 12 |
92042-041 |
PIN,DOWEL,4X12.8 Price: $6.57 |
| 13 |
221AA0650 |
SCREW-CSK-CROS,6X50 This part replaces 221B0650. Price: $4.12 |
| 14 |
92001-165 |
BOLT,HEX HEAD,6X45 Price: $5.24 |
| 15 |
92042-050 |
PIN,DOWEL,8X28 Price: $4.31 |
| 16 |
92081-1018 |
SPRING,OIL FILTER Price: $4.65 |
| 17 |
13169-1110 |
PLATE,OIL FILTER Price: $7.62 |
| 18 |
16099-003 |
ELEMENT-OIL FILTER Price: $12.20 |
| 19 |
16101-004 |
COVER,OIL FILTER Price: $25.50 |
| 20 |
16126-1108 |
VALVE,OIL FILTER Price: $41.98 |
| 22 |
92043-111 |
PIN,SPRING,2X20 Price: $6.27 |
| 23 |
92081-109 |
SPRING Price: $11.29 |
| 24 |
16130-1001 |
VALVE-ASSY-RELIEF Price: $41.16 |
| 25 |
670B2016 |
O RING,16MM Price: $1.36 |
| 26 |
671B2590 |
O RING,90MM Price: $9.91 |
