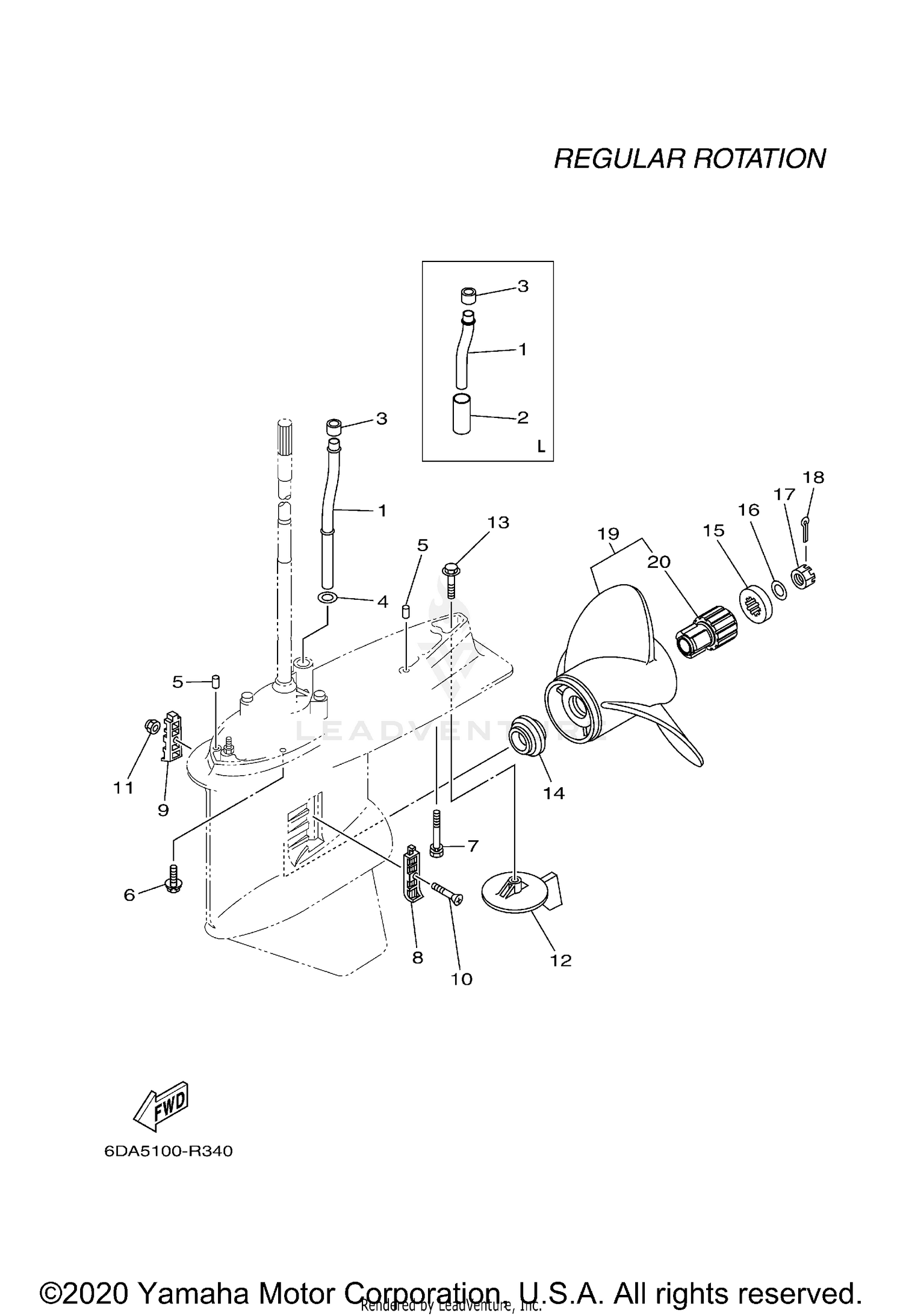

| Ref | Part Number | Description |
|---|
| 5 |
93608-16M16-00 |
PIN, DOWEL Price: $2.85 |
| 6 |
97E95-10645-00 |
BOLT, HEXAGON W/W Price: $3.75 |
| 7 |
90119-10071-00 |
BOLT, WITH WASHER This part replaces 90119-10MA2-00. Price: $5.35 |
| 8 |
6J9-45214-00-00 |
COVER, WATER INLET 1 Price: $14.75 |
| 9 |
6J9-45215-00-00 |
COVER, WATER INLET 2 Price: $14.75 |
| 10 |
90152-05M08-00 |
SCREW, COUNTERSUNK Price: $4.75 |
| 11 |
90185-05904-00 |
NUT, SELF-LOCKING This part replaces 90185-05002-00. Price: $2.25 |
| 12 |
6J9-45371-01-00 |
TAB, TRIM Price: $30.85 |
| 13 |
90105-10M00-00 |
BOLT, WASHER BASED Price: $5.20 |
| 14 |
63P-45987-00-00 |
SPACER 1 Price: $56.35 |
| 15 |
688-45997-01-00 |
SPACER 2 Price: $47.75 |
| 16 |
92990-18200-00 |
WASHER 1 Price: $2.55 |
| 17 |
90171-18M04-00 |
NUT, CASTLE Price: $20.20 |
| 18 |
91490-40030-00 |
PIN. COTTER Price: $4.50 |
