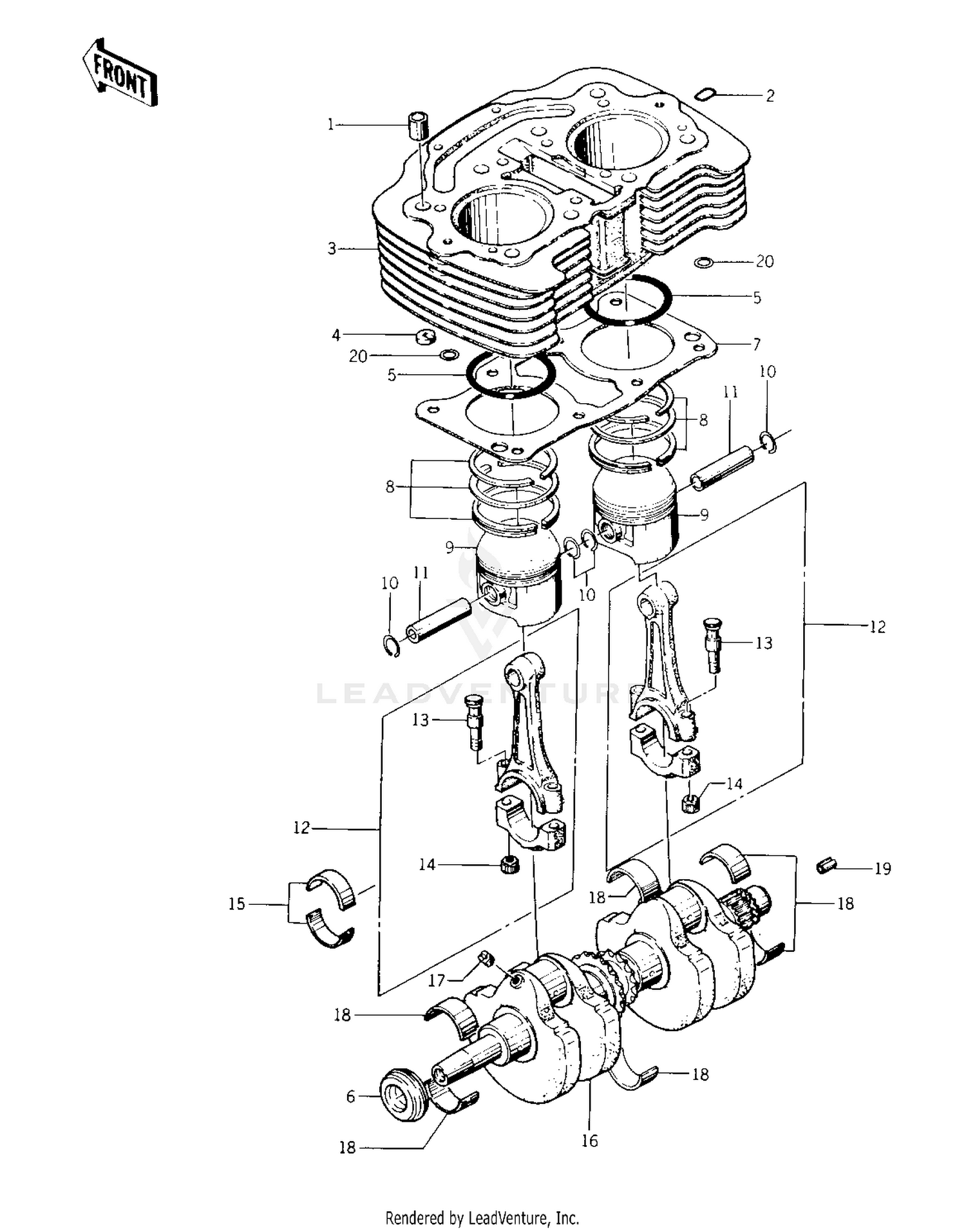

| Ref | Part Number | Description |
|---|
| 1 |
92042-032 |
PIN,DOWEL,14MM Price: $3.15 |
| 2 |
11009-1012 |
O RING,CYLINDER Price: $17.18 |
| 3 |
11005-146 |
CYLINDER, Price: $523.73 |
| 4 |
92075-256 |
DAMPER RUBBER,CYLNDR Price: $2.59 |
| 5 |
92055-056 |
O RING Price: $27.55 |
| 6 |
92050-064 |
OIL SEAL,L.H CRNKSFT Price: $17.27 |
| 7 |
11060-1403 |
GASKET This part replaces 11009-040. Price: $16.93 |
| 8 |
13008-5028 |
RING SET,PISTON,STD Price: $95.05 |
| 8 |
13024-5012 |
RING SET,0.040",O/S Price: $45.29 |
| 8 |
13025-5013 |
RING SET,0.020",O/S Price: $57.40 |
| 9 |
13001-078 |
PISTON,STD Price: $70.53 |
| 9 |
13027-066 |
PISTON,0.040'0.S Price: $70.95 |
| 9 |
13029-073 |
PISTON,0.020'0.S Price: $65.48 |
| 10 |
92036-005 |
RING-SNAP Price: $4.07 |
| 11 |
13002-029 |
PIN-PISTON Price: $14.46 |
| 12 |
13032-046-HH |
CONNECTING ROD ASSY,H Price: $121.25 |
| 12 |
13032-046-II |
CONNECTING ROD ASSY,I Price: $201.97 |
| 12 |
13032-046-JJ |
CONNECTING ROD ASSY,J Price: $201.97 |
| 13 |
92001-169 |
BOLT Price: $5.26 |
| 14 |
92015-1311 |
NUT,FLANGED,8MM Price: $7.34 |
| 15 |
13034-037 |
METAL,CONROD BEARING Price: $29.87 |
| 15 |
13034-047 |
METAL,CON ROD Price: $15.20 |
| 15 |
13034-048 |
METAL,CON ROD Price: $18.70 |
| 16 |
13037-061 |
CRANKSHAFT ASSY Price: $1,036.11 |
| 17 |
291H0608 |
SCREW,SLOTTED,6X8 Price: $2.74 |
| 18 |
92028-1919 |
BUSHING,CRANKSHAFT,BR This part replaces 92028-1102. Price: $16.90 |
| 19 |
555A0408 |
PIN-SPRING,4X8 Price: $3.92 |
