| Ref | Part Number | Description |
|---|
| 1 |
207761644 |
Carriage Bolt M6 X 1.0 X 16 Price: $2.19 |
| 2 |
719000049 |
Clamps This part replaces 219800081. Price: $14.83 |
| 3 |
232561434 |
Elastic Stop Nut M6 Price: $1.99 |
| 4 |
250000764 |
Hex. Button Head Screw M8 X 1.25 X 35 This part replaces 250000301. Price: $2.09 |
| 5 |
250000717 |
Torx Head Screw M6 X 16 Price: $2.19 |
| 6 |
250000447 |
Hex. Flange Screw M6 X 25 Price: $2.19 |
| 8 |
293300134 |
O-Ring Price: $2.39 |
| 11 |
507032492 |
Black Disk Protector Price: $48.99 |
| 12 |
507032487 |
Disc Price: $185.49 |
| 14 |
507032497 |
Threaded Tube Price: $15.72 |
| 15a |
507032473 |
Brake Pads Kit Price: $52.99 |
| 15b |
507032722 |
Brake Spring Kit This part replaces 507032474. Price: $38.99 |
| 15c |
507032475 |
Bleeder Price: $19.99 |
| 15d |
414989700 |
BOOT-QTS 20 - Call your local BRP dealership Price: $22.49 |
| 16 |
507032596 |
Master Cylinder Ass. This part replaces 507032529. Price: $224.99 |
| 17 |
507032476 |
Lever With Parking Lock Price: $104.99 |
| 19 |
415030000 |
Pin Ass'y Price: $19.99 |
| 20 |
507032478 |
Master Cylinder Reservoir Ass'y Price: $109.99 |
| 21 |
415129356 |
Screw M4 X 20 Price: $2.29 |
| 22 |
507032479 |
Microswitch Price: $104.99 |
| 36 |
507032540 |
Hose Price: $46.49 |
| 44 |
507032551 |
Banjo Bolt Price: $5.61 |
| 45 |
516005525 |
Warning Decal Price: $0.01 |
| 46 |
518321570 |
Open Clamp Price: $7.89 |
| 47 |
705601628 |
Copper Washer This part replaces 705600310. Price: $4.59 |
| 48 |
293650256 |
Clamp This part replaces 705600459. Price: $5.59 |

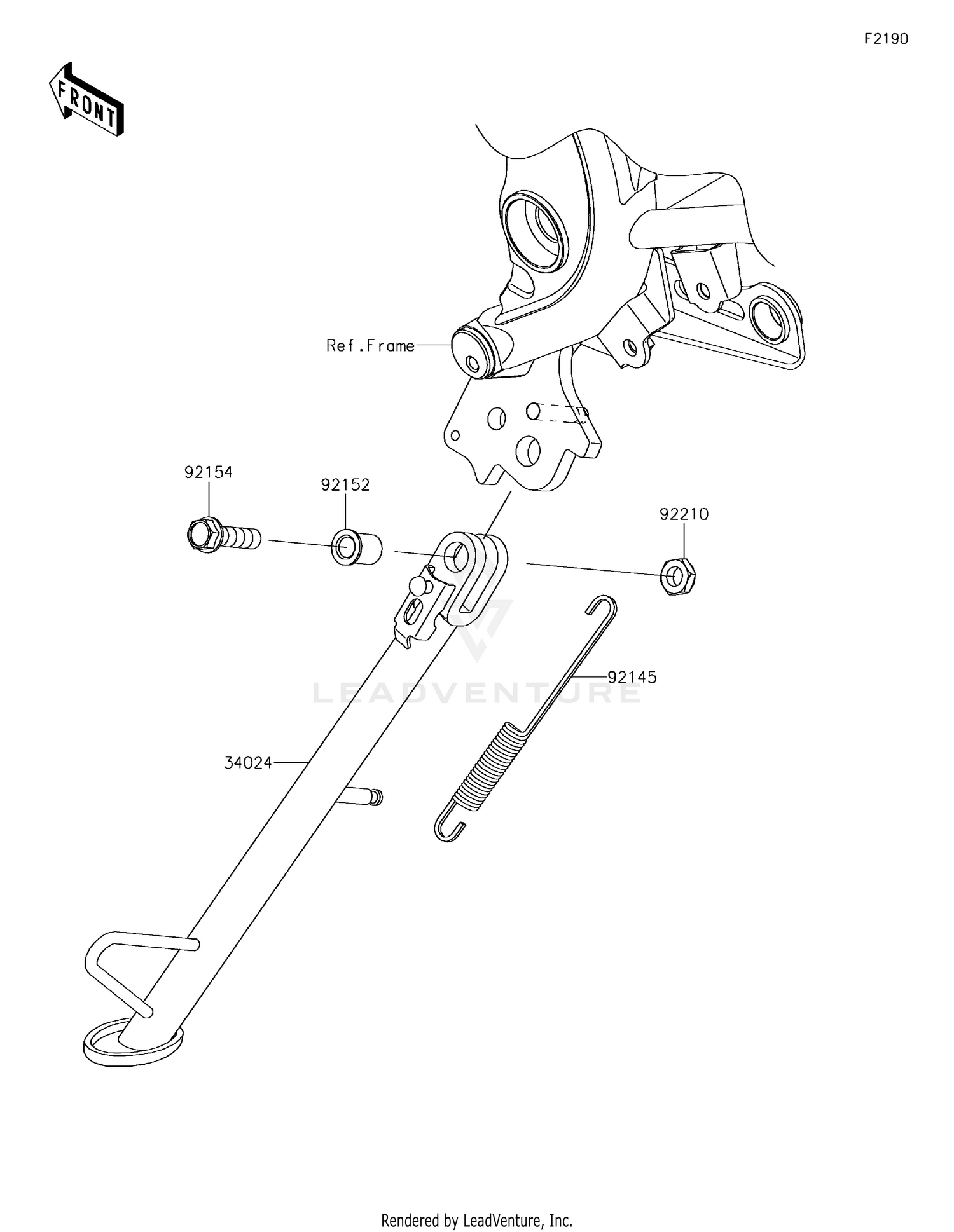

| 34024 |
34024-0126 |
STAND-SIDE Price: $92.57 |
| 92145 |
92145-0813 |
SPRING,SIDE STAND Price: $14.76 |
| 92152 |
92152-1914 |
COLLAR,10.2X15X20.1 Price: $14.39 |
| 92154 |
92154-1352 |
BOLT,FLANGED,10X37 Price: $8.08 |
