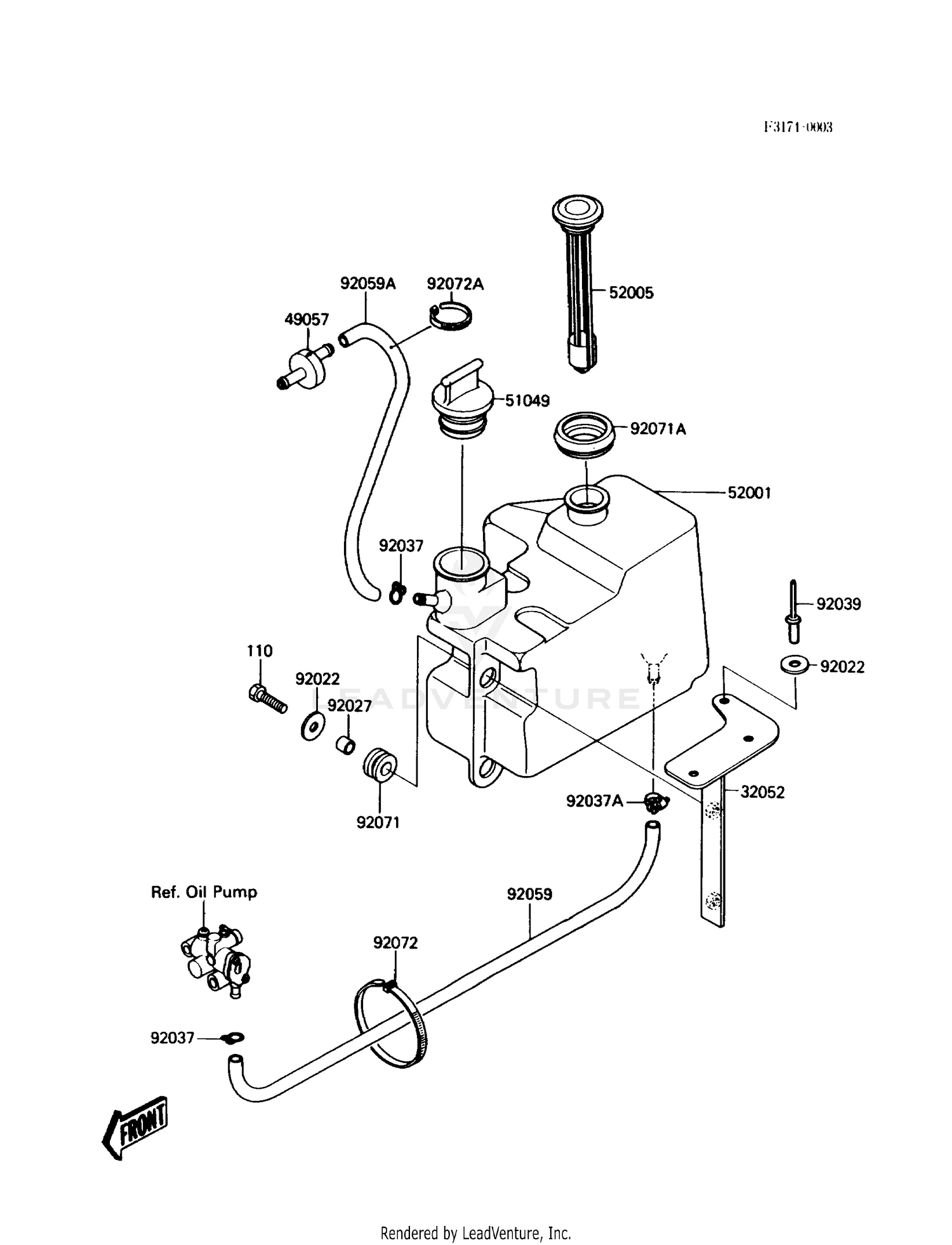

OIL TANK
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 32052 | 32052-3702 | BRACKET-TANK,OIL Price: $54.19 |
| 49057 | 49057-0002 | VALVE-RELIEF This part replaces 49057-3001. Price: $64.85 |
| 51049 | 51049-3707 | CAP-TANK,OIL Price: $6.93 |
| 52001 | 52001-3702 | TANK OIL Price: $16.24 |
| 52005 | 52005-3702 | GAUGE Price: $48.98 |
| 92022 | 92022-3714 | WASHER,6.2X20X2 Price: $4.18 |
| 92027 | 92027-3705 | COLLAR,6.2X10X10 Price: $8.86 |
| 92037 | 92037-1173 | CLAMP This part replaces 92037-3723. Price: $3.49 |
| 92037A | 92037-3726 | CLAMP Price: $3.98 |
| 92039 | 92039-3719 | RIVET,4.8MM Price: $6.22 |
| 92059 | 92059-3764 | TUBE Price: $18.44 |
| 92059A | 92059-3756 | TUBE,5.8X500 This part replaces 92059-3819. Price: $13.72 |
| 92071 | 92071-3716 | GROMMET Price: $4.96 |
| 92071A | 92071-3750 | GROMMET Price: $7.55 |
| 92072 | 92072-030 | BAND,L=123 Price: $5.00 |
| 92072A | 92072-031 | BAND,L=149 Price: $5.00 |
