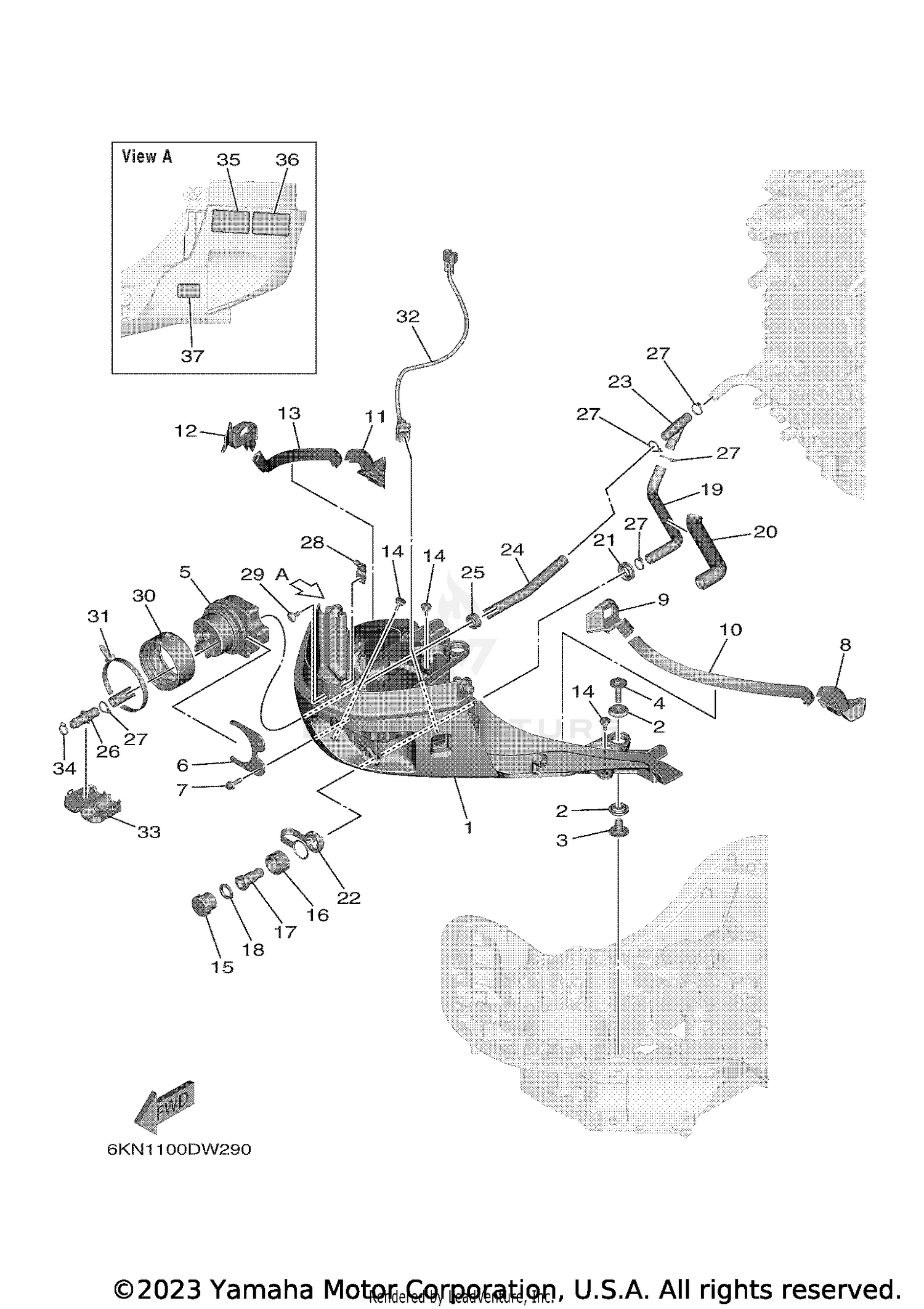

| Ref | Part Number | Description |
|---|
| 2 |
90480-22M81-00 |
GROMMET Price: $4.80 |
| 3 |
90387-08M37-00 |
COLLAR Price: $11.40 |
| 4 |
90119-08187-00 |
BOLT, WITH WASHER Price: $3.49 |
| 5 |
6GR-42725-02-00 |
GROMMET Price: $35.05 |
| 6 |
6GR-42761-00-00 |
STOPPER Price: $13.70 |
| 7 |
95D95-06020-00 |
BOLT, FLANGE DEEP Price: $5.35 |
| 8 |
6KN-42717-00-00 |
RUBBER, SEAL 2 Price: $36.40 |
| 9 |
6KN-42726-00-00 |
GROMMET Price: $50.30 |
| 10 |
6KN-42617-00-00 |
DAMPER, FORM Price: $29.80 |
| 11 |
6KN-42718-00-00 |
RUBBER, SEAL 3 Price: $31.95 |
| 12 |
6KN-42727-00-00 |
GROMMET Price: $49.10 |
| 13 |
6KN-42617-00-00 |
DAMPER, FORM Price: $29.80 |
| 14 |
6H4-42748-01-00 |
GROMMET Price: $1.55 |
| 15 |
6KN-11313-00-00 |
PLUG, BLIND Price: $58.55 |
| 16 |
6R3-12581-00-00 |
JOINT, HOSE 1 Price: $6.40 |
| 17 |
6KN-12582-00-00 |
JOINT, HOSE 2 Price: $4.05 |
| 18 |
6R3-12583-10-00 |
GASKET, HOSE JOINT This part replaces 6R3-12583-00-00. Price: $3.55 |
| 19 |
6KN-12577-00-00 |
HOSE 2 Price: $7.25 |
| 20 |
6KN-12578-00-00 |
HOSE 3 Price: $13.35 |
| 21 |
6KN-82535-00-00 |
GROMMET Price: $7.20 |
| 22 |
6KN-26393-00-00 |
HOLDER Price: $33.45 |
| 23 |
6KN-W2437-10-00 |
PIPE, JOINT KIT This part replaces 6GR-24378-00-00. Price: $4.70 |
| 24 |
90445-16025-00 |
HOSE Price: $4.60 |
| 25 |
90480-20M05-00 |
GROMMET Price: $4.40 |
| 26 |
6GR-83558-00-00 |
END, NIPPLE Price: $4.60 |
| 27 |
90465-10098-00 |
CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 28 |
6GR-44554-00-00 |
PLATE Price: $8.95 |
| 29 |
90111-06144-00 |
BOLT,HEX. SOCKET BUTTON Price: $4.15 |
| 32 |
6GR-82563-00-00 |
TRIM & TILT SWITCH A Price: $72.55 |
| 35 |
6EE-42794-41-00 |
LABEL, WARNING (GENERAL) This part replaces 6EE-42794-40-00. Price: $17.80 |
| 36 |
6EE-42794-51-00 |
LABEL, WARNING (GENERAL) This part replaces 6EE-42794-50-00. Price: $21.55 |
