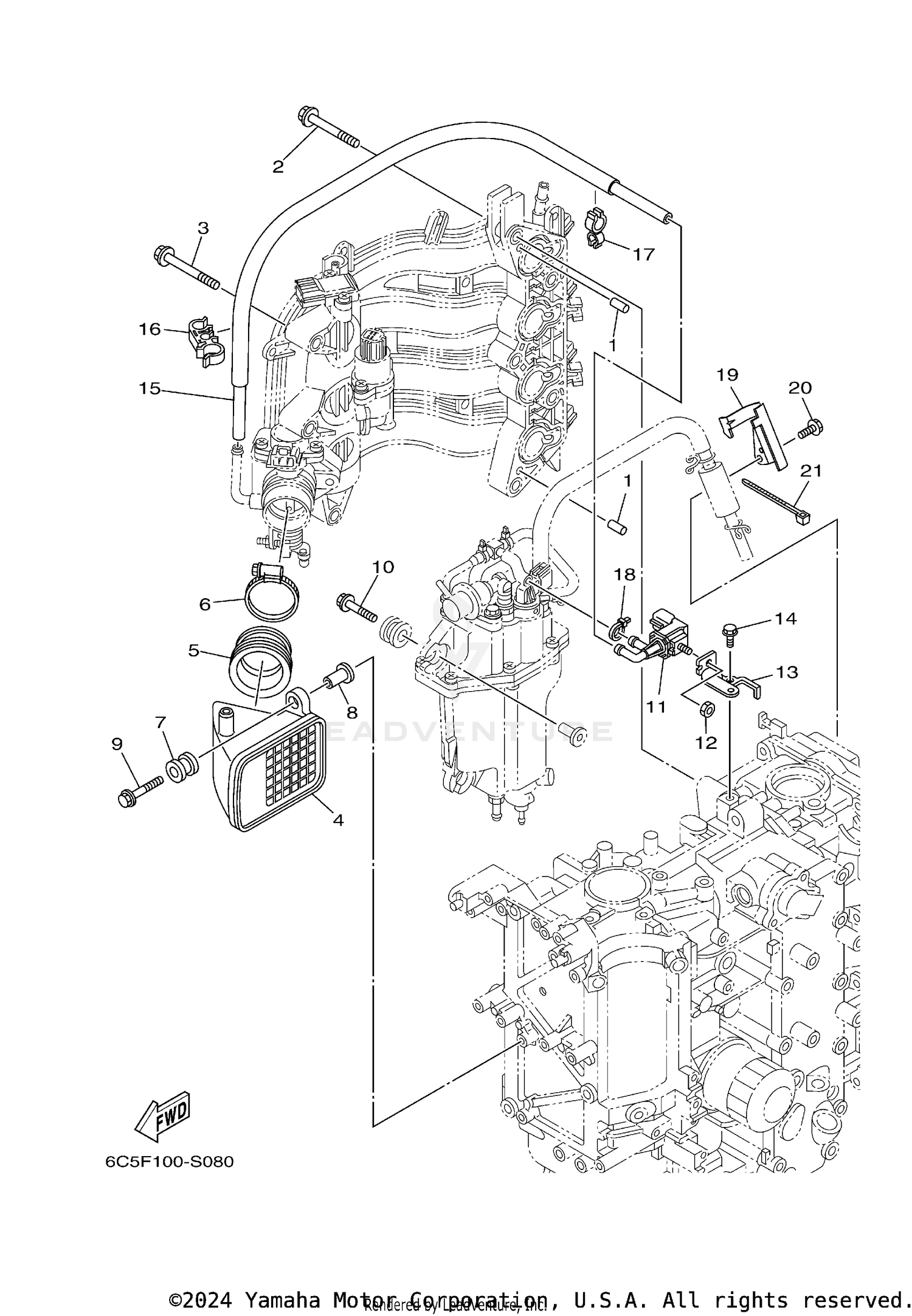

| Ref | Part Number | Description |
|---|
| 1 |
93608-12M05-00 |
PIN, DOWEL Price: $10.40 |
| 2 |
90119-08190-00 |
BOLT, WITH WASHER Price: $2.85 |
| 3 |
90119-06304-00 |
BOLT, WITH WASHER Price: $4.75 |
| 4 |
6C5-14440-10-00 |
SILENCER ASSY, INTAKE Price: $43.00 |
| 5 |
6C5-14453-02-00 |
JOINT, AIR CLEANER 1 Price: $6.95 |
| 6 |
90450-50001-00 |
HOSE CLAMP ASSY Price: $20.50 |
| 7 |
6A0-82317-01-00 |
DAMPER, IGNITION C Price: $7.10 |
| 8 |
90387-06119-00 |
COLLAR Price: $4.80 |
| 9 |
90119-06297-00 |
BOLT, WITH WASHER Price: $1.90 |
| 10 |
90119-06291-00 |
BOLT, WITH WASHER Price: $4.20 |
| 11 |
6C5-86120-00-00 |
SOLENOID VALVE ASSY Price: $157.80 |
| 12 |
95380-06600-00 |
NUT, HEXAGON Price: $4.80 |
| 13 |
6BG-86112-10-00 |
STAY, SOLENOID Price: $13.50 |
| 14 |
97E95-06516-00 |
BOLT, HEXAGON W/W Price: $4.20 |
| 15 |
6C5-12576-00-00 |
HOSE 1 Price: $21.80 |
| 16 |
90464-15008-00 |
CLAMP Price: $4.40 |
| 17 |
90464-12006-00 |
CLAMP Price: $4.65 |
| 18 |
90465-10098-00 |
CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 19 |
6C5-13428-01-00 |
BRACKET, STRAINER 1 Price: $22.10 |
| 20 |
97E95-06516-00 |
BOLT, HEXAGON W/W Price: $4.20 |
