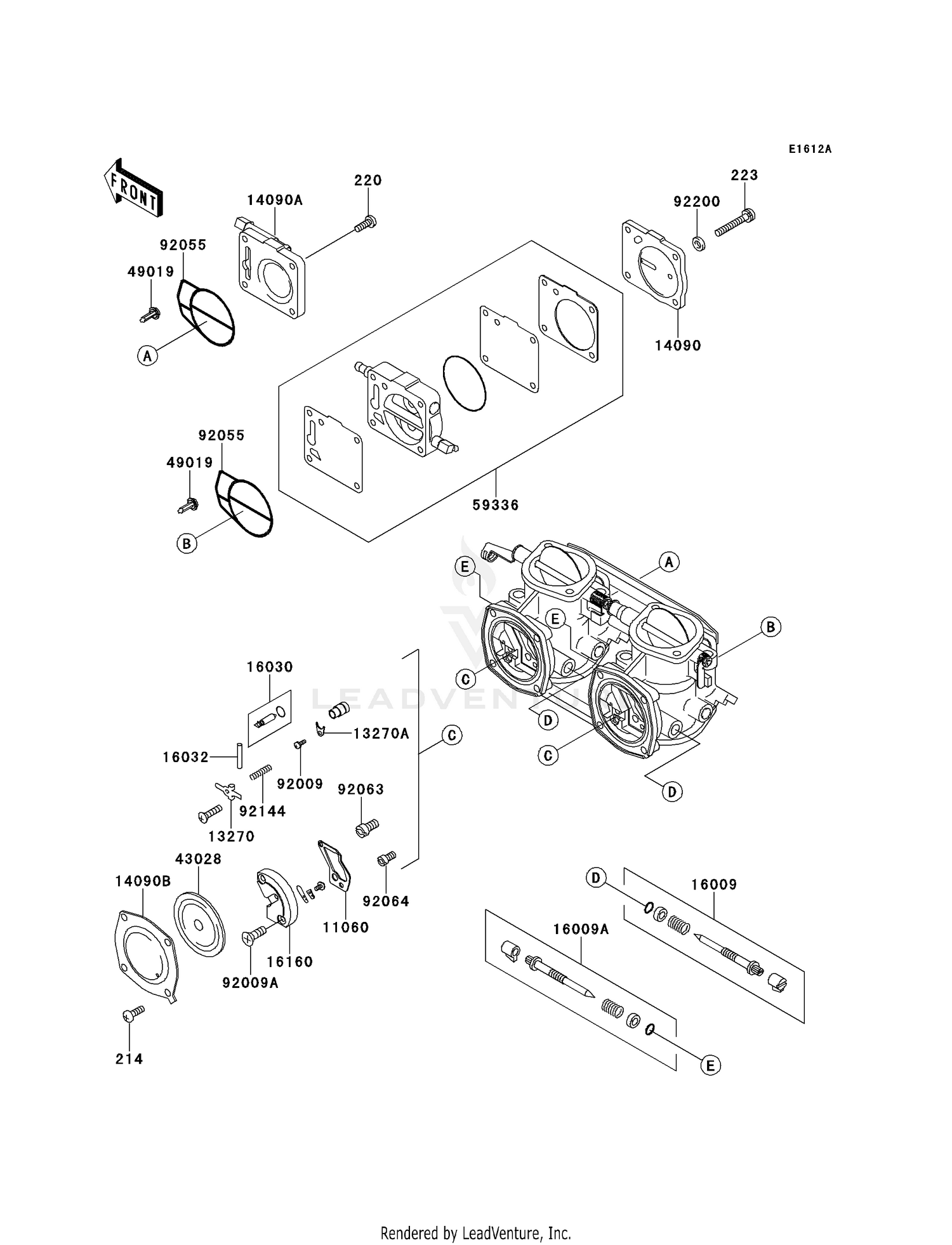

CARBURETOR PARTS (JS750-B2/B3)
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 214 | 214R0510 | SCREW-PAN+- Price: $4.39 |
| 220 | 220R0516 | SCREW-PAN-CROS Price: $5.00 |
| 223 | 223R0535 | SCREW-PAN-WS-CROS Price: $5.88 |
| 11060 | 11060-3774 | GASKET Price: $12.14 |
| 13270 | 13270-3828 | PLATE Price: $64.96 |
| 13270A | 13270-3829 | PLATE Price: $59.77 |
| 14090 | 14090-3783 | COVER Price: $29.41 |
| 14090A | 14090-3784 | COVER Price: $43.96 |
| 14090B | 14090-3785 | COVER Price: $34.20 |
| 16009 | 16009-3717 | NEEDLE-JET,SLOW Price: $49.90 |
| 16009A | 16009-3718 | NEEDLE-JET,MAIN Price: $49.90 |
| 16030 | 16030-3703 | VALVE-FLOAT Price: $48.22 |
| 16032 | 16032-006 | FLOAT PIN Price: $7.29 |
| 16160 | 16160-3737 | BODY Price: $24.05 |
| 43028 | 43028-3709 | DIAPHRAGM Price: $29.32 |
| 49019 | 49019-3713 | FILTER-FUEL Price: $7.78 |
| 59336 | 59336-3712 | CASE-PUMP,DIAPHRAGM Price: $164.61 |
| 92009 | 92009-3821 | SCREW,3X7 Price: $2.97 |
| 92009A | 92009-3822 | SCREW,4X14 Price: $7.29 |
| 92055 | 92055-3745 | RING-O Price: $17.14 |
| 92063 | 92063-3715 | JET-MAIN,#147.5 Price: $12.95 |
| 92064 | 92064-3701 | JET-PILOT,#67.5 Price: $9.43 |
| 92144 | 92144-3756 | SPRING Price: $11.38 |
