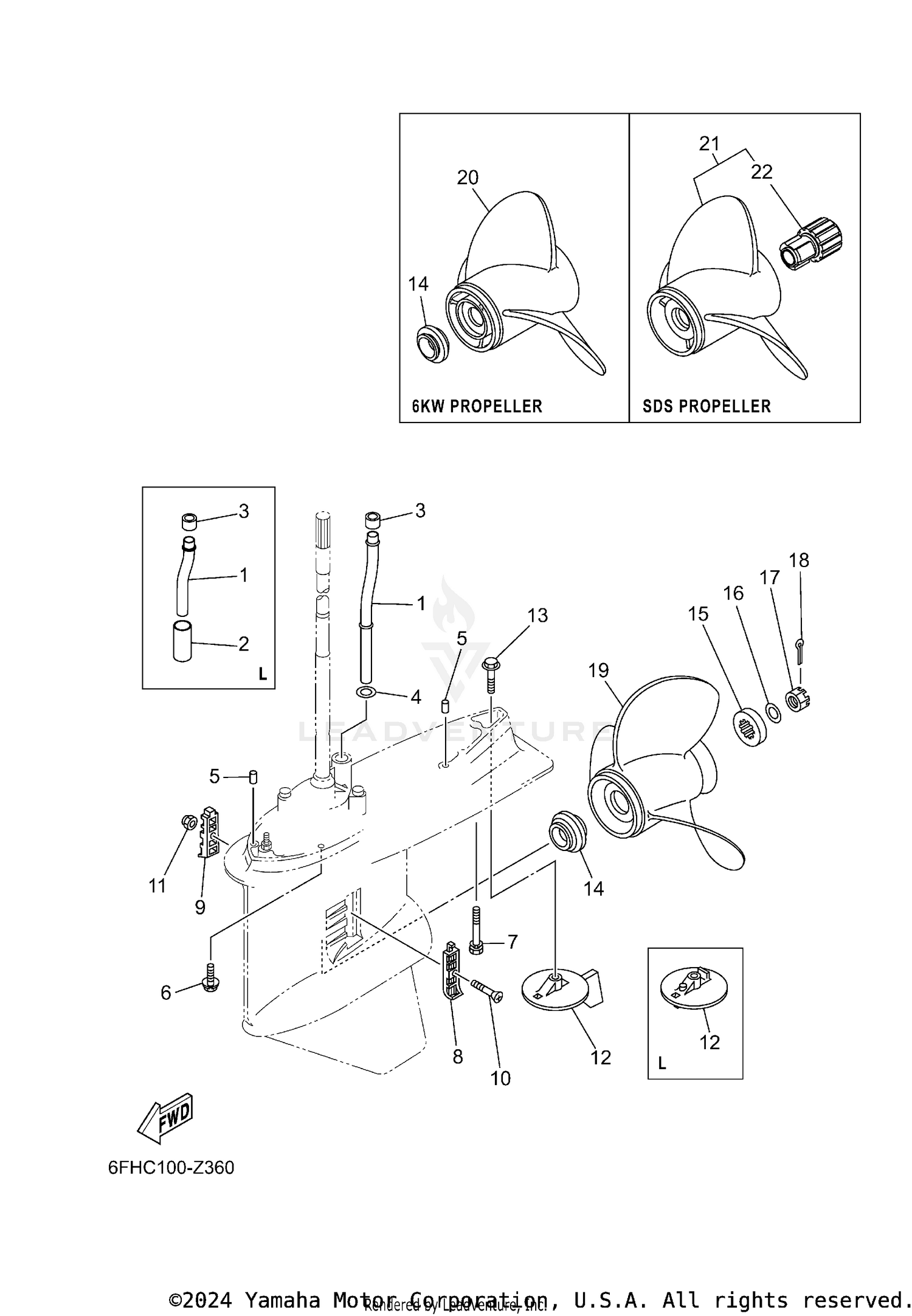

LOWER CASING DRIVE 2
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 5 | 93608-16M16-00 | PIN, DOWEL Price: $2.85 |
| 6 | 97E95-10645-00 | BOLT, HEXAGON W/W Price: $3.75 |
| 7 | 90119-10072-00 | BOLT, WITH WASHER Price: $5.75 |
| 8 | 6J9-45214-00-00 | COVER, WATER INLET 1 Price: $14.75 |
| 9 | 6J9-45215-00-00 | COVER, WATER INLET 2 Price: $14.75 |
| 10 | 90152-05M08-00 | SCREW, COUNTERSUNK Price: $4.75 |
| 11 | 90185-05904-00 | NUT, SELF-LOCKING This part replaces 90185-05002-00. Price: $2.25 |
| 13 | 90105-10M00-00 | BOLT, WASHER BASED Price: $5.20 |
| 14 | 6KW-45987-00-00 | VMAX T3 SPACER1 Price: $126.10 |
| 15 | 688-45997-01-00 | SPACER 2 Price: $47.75 |
| 16 | 92990-18200-00 | WASHER 1 Price: $2.55 |
| 17 | 90171-18M04-00 | NUT, CASTLE Price: $20.20 |
| 18 | 91490-40030-00 | PIN. COTTER Price: $4.50 |
