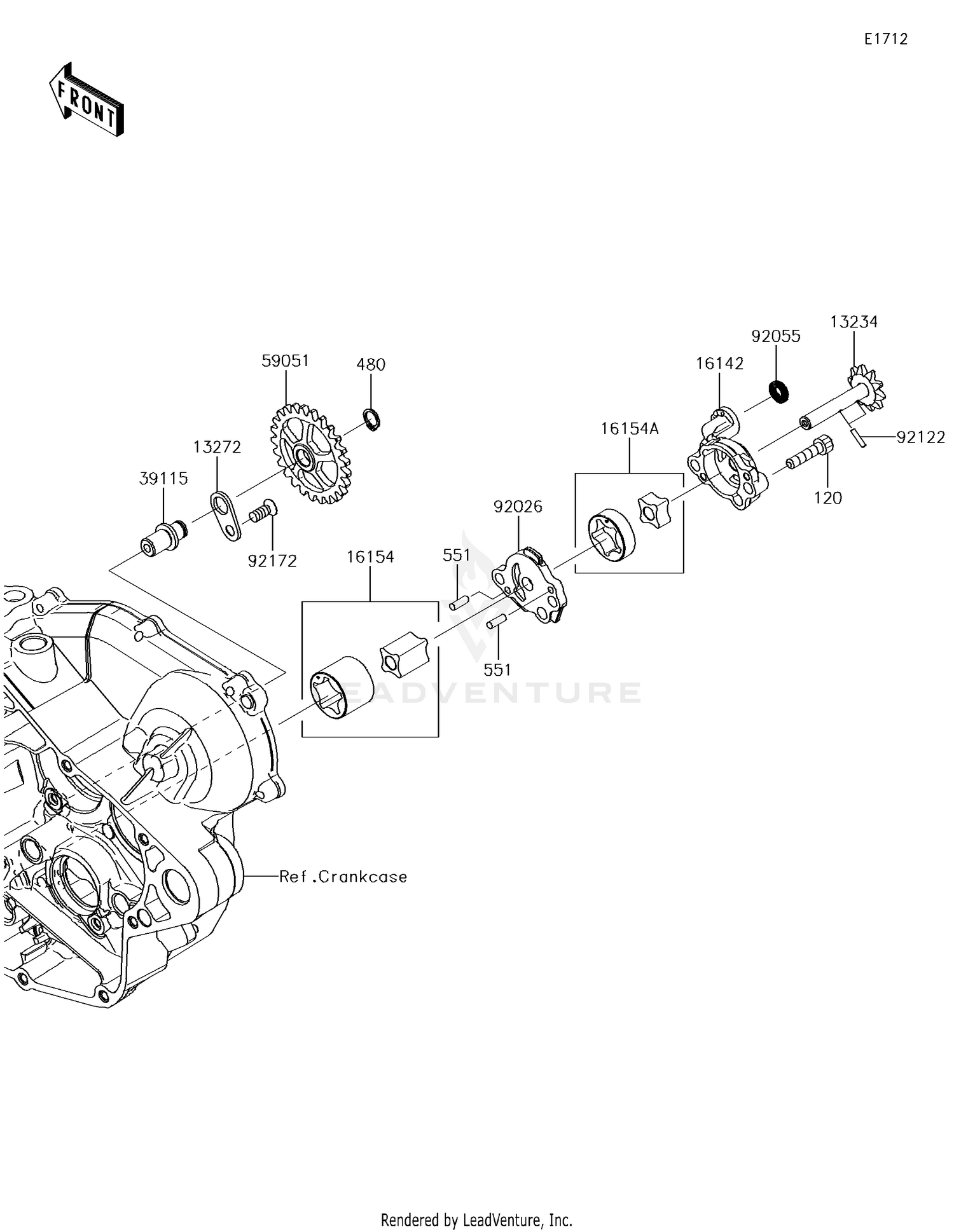

Oil Pump
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 120 | 120CA0625 | BOLT-SOCKET,6X25 Price: $2.06 |
| 480 | 480J1000 | CIRCLIP-TYPE-C,10MM Price: $0.65 |
| 551 | 551A0412 | PIN-DOWEL Price: $1.59 |
| 13234 | 13234-0594 | SHAFT-COMP,PUMP GEAR Price: $110.47 |
| 13272 | 13272-1944 | PLATE Price: $5.69 |
| 16142 | 16142-0725 | COVER-PUMP Price: $69.52 |
| 16154 | 16154-0726 | ROTOR-PUMP,SCAVENGE Price: $39.84 |
| 16154A | 16154-0729 | ROTOR-PUMP,FEED Price: $39.84 |
| 39115 | 39115-0024 | SHAFT-IDLER Price: $30.27 |
| 59051 | 59051-0770 | GEAR-SPUR,OIL PUMP DRIVE,25T Price: $78.75 |
| 92026 | 92026-0804 | SPACER Price: $52.47 |
| 92055 | 92055-074 | RING-O,OD=13 Price: $8.58 |
| 92122 | 92122-0021 | ROLLER,2.5X11.8 Price: $2.61 |
