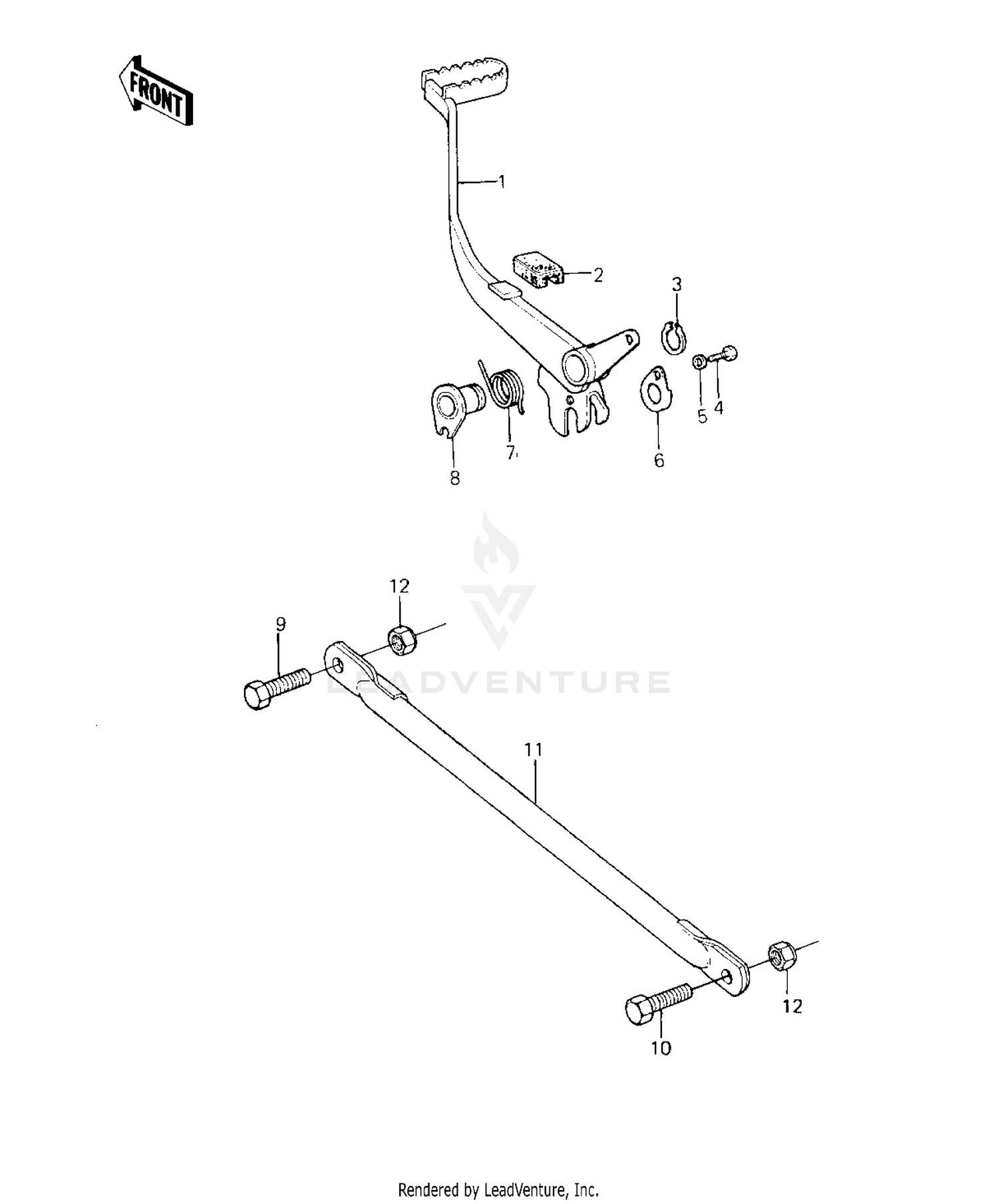

| Ref | Part Number | Description |
|---|
| 1 |
43001-058 |
PEDAL,BRAKE Price: $107.83 |
| 2 |
92075-220 |
DAMPER RUBBER,BK PDL Price: $5.45 |
| 3 |
480J2200 |
CIRCLIP-TYPE-C,22MM Price: $5.00 |
| 4 |
220AA0508 |
SCREW-PAN-CROS,5X8 This part replaces 220B0508. Price: $0.47 |
| 5 |
461DA0500 |
WASHER-SPRING,5MM This part replaces 461F0500. Price: $0.71 |
| 6 |
43081-002 |
PLATE Price: $5.45 |
| 7 |
43005-032 |
SPRING BRAKE PEDAL Price: $8.44 |
| 8 |
92027-210 |
COLLAR,BRAKE PEDAL Price: $37.52 |
| 9 |
113G1022 |
BOLT,HEX HEAD,10X22 Price: $4.75 |
| 10 |
113G1028 |
BOLT,10X28 Price: $9.34 |
| 11 |
43007-048 |
TORQUE LINK,REAR BRAK Price: $26.40 |
