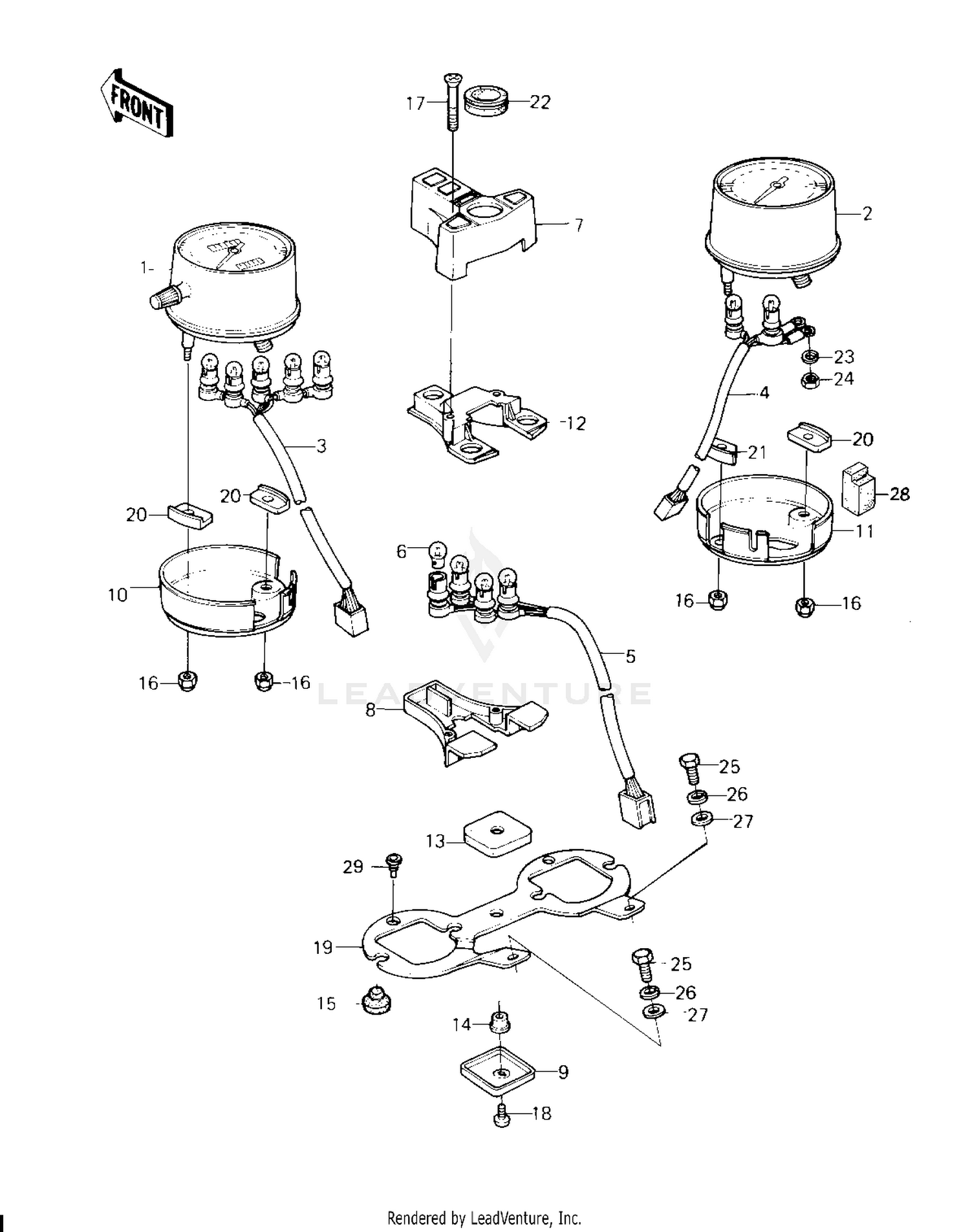

| Ref | Part Number | Description |
|---|
| 2 |
25015-1062 |
TACHOMETER,X1000RPM Price: $460.38 |
| 3 |
23008-1060 |
SOCKET,SPEEDOMETER Price: $80.77 |
| 4 |
23008-1062 |
SOCKET,TACHOMETER Price: $30.57 |
| 5 |
23008-1061 |
SOCKET,PILOT BOX Price: $69.57 |
| 6 |
92069-018 |
BULB 12V 3W Price: $4.87 |
| 7 |
25023-1021 |
COVER,PILOT BOX UPPER Price: $104.42 |
| 8 |
14025-1226 |
COVER,PILOT BOX LOWER Price: $77.48 |
| 9 |
14025-1227 |
COVER,METER BRACKET Price: $12.39 |
| 10 |
14025-1224 |
COVER,SPEEDOMETER Price: $141.07 |
| 11 |
14025-1225 |
COVER,TACHOMETER Price: $104.51 |
| 12 |
13169-1268 |
PLATE,SOCKET Price: $40.35 |
| 13 |
92075-1255 |
DAMPER RUBBER Price: $11.13 |
| 14 |
25019-023 |
DAMPER RUBBER,MET FIT Price: $4.29 |
| 15 |
92075-1150 |
DAMPER,METER FITTING Price: $9.38 |
| 16 |
322N0500 |
NUT-CAP,5MM Price: $4.06 |
| 17 |
92009-1093 |
SCREW,CUNTERSNK,4X35 Price: $4.05 |
| 18 |
92009-1040 |
SCREW,TAPPING,4X10 Price: $3.69 |
| 19 |
25008-1030 |
BRACKET,METER Price: $76.23 |
| 20 |
92075-1192 |
DAMPER,METER Price: $23.82 |
| 21 |
92075-1265 |
DAMPER RUBBER,METER Price: $14.43 |
| 22 |
92075-1256 |
DAMPER RUBBER Price: $14.43 |
| 23 |
461F0400 |
WASHER SPRING 4MM Price: $0.47 |
| 24 |
311AA0400 |
NUT-HEX,4MM This part replaces 312B0400. Price: $0.53 |
| 25 |
112AA0614 |
BOLT-UPSET This part replaces 112B0614. Price: $0.49 |
| 26 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 27 |
411AA0600 |
WASHER-PLAIN,6MM This part replaces 411B0600. Price: $2.92 |
| 28 |
92075-1266 |
DAMPER RUBBER,METER Price: $11.76 |
