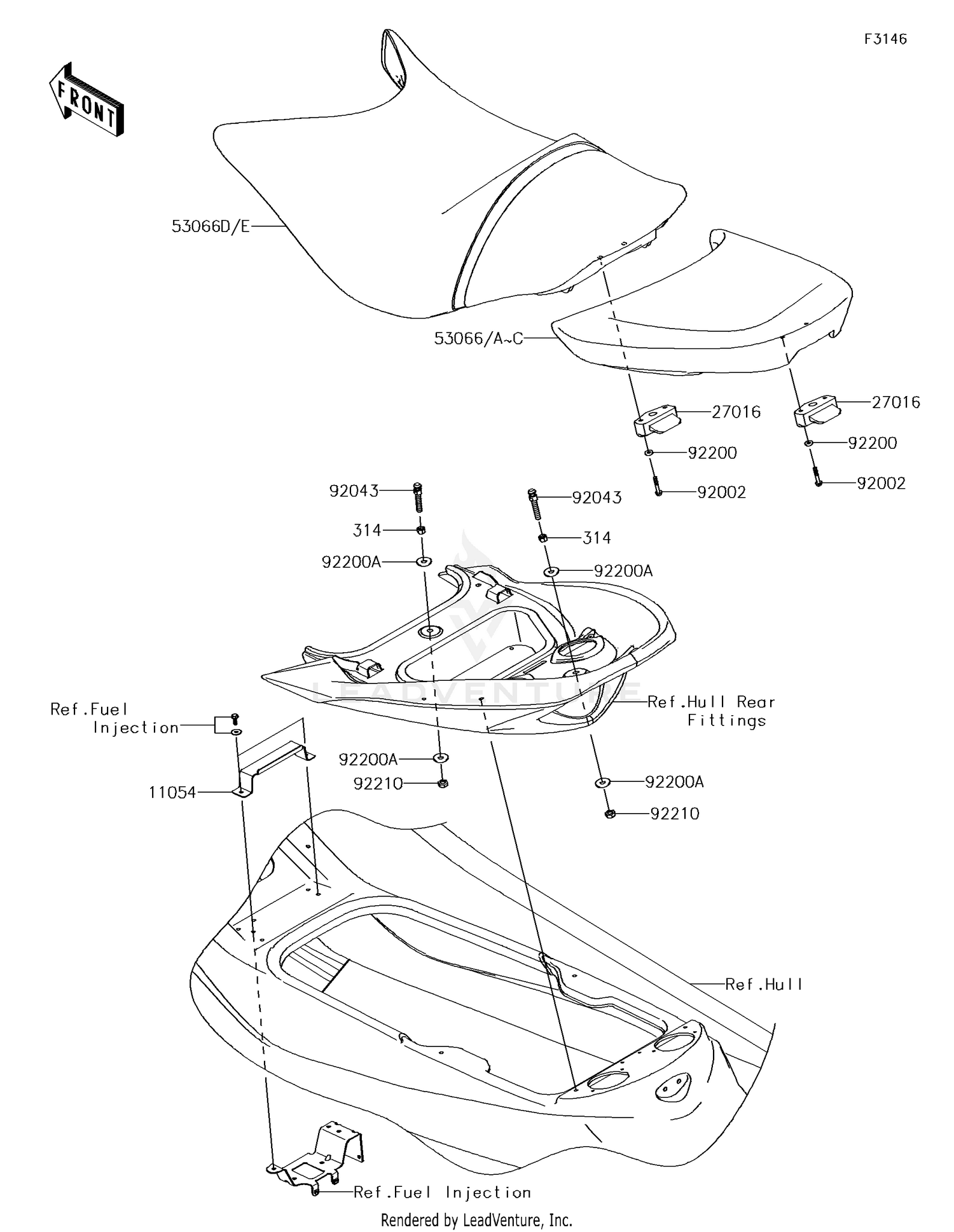

Seat
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 314 | 314R1000 | NUT-HEX-FINE,10MM Price: $2.02 |
| 11054 | 11054-3702 | BRACKET,FRONT SEAT Price: $40.84 |
| 27016 | 27016-3758 | LOCK-ASSY,SEAT,FR&RR Price: $98.34 |
| 53066E | 53066-0793-49G | SEAT-ASSY,FR,ORG/BLK+ This part replaces 53066-0424-49G. Price: $1,398.35 |
| 92002 | 92002-3716 | BOLT,6X40 Price: $5.52 |
| 92043 | 92043-3763 | PIN Price: $46.79 |
| 92200 | 92200-1543 | WASHER,6.5X16X2.0 Price: $2.34 |
| 92200A | 92200-3762 | WASHER Price: $2.61 |
