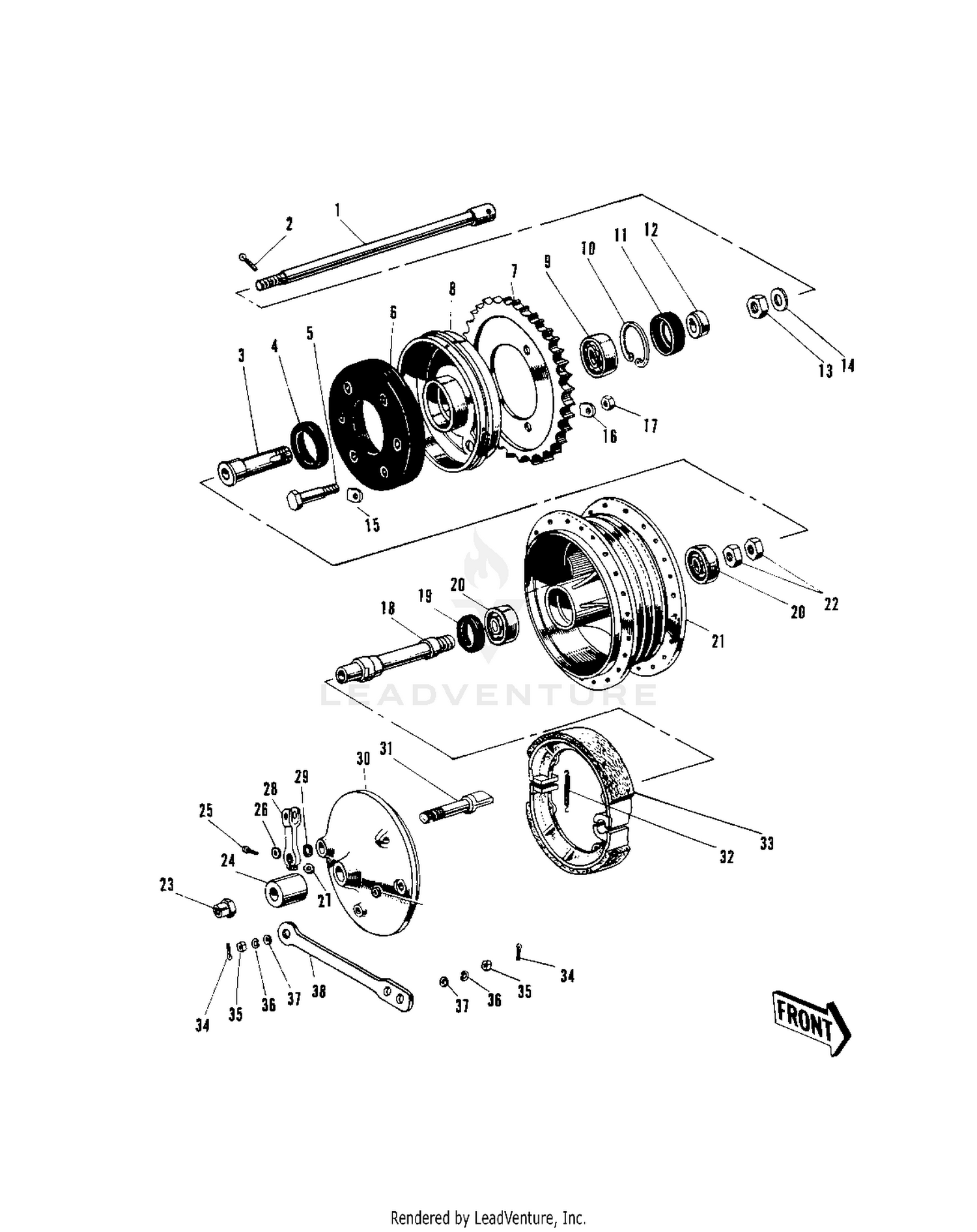

| Ref | Part Number | Description |
|---|
| 1 |
42031-018 |
AXLE REAR Price: $28.25 |
| 2 |
550AA4030 |
PIN-COTTER,4.0X30 This part replaces 550D4030. Price: $2.51 |
| 3 |
42036-004 |
SLEEVE L.H REAR AXLE Price: $28.15 |
| 4 |
92053-008 |
OIL SEAL COUPLING Price: $3.66 |
| 5 |
92003-032 |
BOLT SHOCK DAMPER FIT Price: $3.85 |
| 6 |
42014-011 |
DAMPER REAR HUB SHOCK Price: $41.02 |
| 9 |
601B6205 |
BEARING BALL #6205 Price: $19.57 |
| 10 |
92033-1043 |
RING-SNAP,52MM Price: $8.05 |
| 11 |
92049-1287 |
SEAL-OIL This part replaces 92052-006. Price: $13.08 |
| 12 |
42037-019 |
COLLAR L.H REAR AXLE Price: $2.24 |
| 13 |
42045-007 |
NUT L.H SLEEVE Price: $8.60 |
| 14 |
42046-010 |
WASHER L.H SLEEVE Price: $7.21 |
| 15 |
92088-009 |
WASHER COUPLING LOCK Price: $5.55 |
| 16 |
92088-015 |
WASHER-SPROCKET LOCK Price: $21.71 |
| 17 |
315AA1200 |
NUT-HEX-FINE This part replaces 315B1200. Price: $0.95 |
| 18 |
42011-001 |
SLEEVE R.H.REAR AXLE Price: $59.58 |
| 19 |
652A355508 |
OIL SEAL RR AXLE R.H Price: $9.61 |
| 20 |
92116-001 |
BEARING CONE ROLLER Price: $35.61 |
| 22 |
42045-008 |
NUT BEARING ADJUST Price: $11.93 |
| 23 |
92015-1947 |
NUT,CASTLE,16MM This part replaces 42045-014. Price: $9.91 |
| 24 |
42032-007 |
COLLAR REAR HUB R.H Price: $10.22 |
| 25 |
112G0640 |
BOLT-UPSET,6X40 Price: $3.42 |
| 26 |
410AA0600 |
WASHER-PLAIN-SMALL This part replaces 410B0600. Price: $1.31 |
| 27 |
311AA0600 |
NUT-HEX,6MM This part replaces 311B0600. Price: $0.96 |
| 28 |
42029-008 |
LEVER REAR BRAKE CAM Price: $14.01 |
| 29 |
41051-001 |
SEAL,BRAKE CAM Price: $4.26 |
| 31 |
42026-017 |
CAM SHAFT,REAR BRAKE Price: $42.94 |
| 32 |
42020-003 |
SPRING BRAKE SHOE Price: $8.55 |
| 33 |
42019-007 |
SHOE,BRAKE Price: $152.09 |
| 34 |
550AA2020 |
PIN-COTTER,2.0X20 This part replaces 550D2020. Price: $1.04 |
| 35 |
314AA1000 |
NUT-HEX-FINE This part replaces 314B1000. Price: $0.68 |
| 36 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 37 |
411AA1000 |
WASHER-PLAIN,10MM This part replaces 411B1000. Price: $0.96 |
