| Ref | Part Number | Description |
|---|
| 1 |
207561244 |
Hex. Flange Screw M6 X 12, Scotch Grip Price: $1.99 |
| 2 |
207584034 |
Hex. Flange Screw, Scotch Grip Price: $2.19 |
| 3 |
207661644 |
Hex. Flange Screw M6 X 16 Price: $0.76 |
| 4 |
207662044 |
Hex. Flange Screw M6 X 20 Price: $2.09 |
| 5 |
207662544 |
Hex. Flange Screw M6 X 25 Price: $0.66 |
| 6 |
224061201 |
Flat Washer Price: $1.39 |
| 7 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 Price: $1.49 |
| 8 |
233261416 |
Elastic Flange Nut M6 X 1.0 Price: $2.19 |
| 9 |
233281414 |
Hex. Flange Elastic Nut M8 Price: $1.49 |
| 10 |
234281474 |
Conical Spring Washer M8 Price: $1.49 |
| 11 |
250000351 |
Hex. Flange Screw M8 X 25, Nylon Price: $2.19 |
| 12 |
250300027 |
Clinch Stud M6 X 20 Price: $2.09 |
| 13 |
250300031 |
Clinch Stud M6 X 30 Price: $2.09 |
| 14 |
250300038 |
Clinch Stud Price: $4.39 |
| 15 |
293150104 |
Pop Rivet 3/16" Price: $1.09 |
| 16 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. Price: $1.19 |
| 18 |
293150119 |
Hemlock Rivet, 6.5 mm Price: $4.39 |
| 19 |
293150120 |
Hemlock Rivet 6.5 mm Price: $7.59 |
| 20 |
293150144 |
Stavex Rivet Price: $0.84 |
| 28 |
293150146 |
Henrob Rivet Price: $2.09 |
| 30 |
293150174 |
Hemlock Rivet, 6.4 mm Price: $7.99 |
| 32 |
293150182 |
Monobolt Rivet 6.4 Price: $3.19 |
| 33 |
293150191 |
Monobolt Rivet, 4.8 mm Price: $0.99 |
| 35 |
293450268 |
Insert M5 X 0.8 Price: $2.09 |
| 38 |
293730042 |
Full Moon Dart 5 mm Price: $2.29 |
| 40 |
293730059 |
Full Moon Dart 10 mm Price: $4.69 |
| 42 |
390909100 |
Avex Rivet Price: $0.30 |
| 43 |
390909200 |
Avex Rivet Price: $0.30 |
| 44 |
293450275 |
Insert Price: $12.99 |
| 48 |
505073317 |
Leg Cushion Price: $8.66 |
| 49 |
512061516 |
Vibration Damper This part replaces 512060295. Price: $62.99 |
| 50 |
517124300 |
Washer Price: $0.19 |
| 55 |
518325560 |
Adhesive Patch Price: $4.69 |
| 58 |
518325782 |
RH Deflector, Black Polypropylene Price: $13.99 |
| 58 |
518325783 |
LH Deflector, Black Polypropylene Price: $13.99 |
| 60 |
518325973 |
RH Rear Base Price: $21.99 |
| 60 |
518325974 |
LH Rear Base Price: $21.99 |
| 62 |
860200802 |
TUNNEL PROT. - Call your local BRP dealership This part replaces 860200267. Price: $69.99 |
| 64 |
518326178 |
Engine Support Price: $65.99 |
| 65 |
518326198 |
Front Member Price: $64.99 |
| 66 |
518326328 |
RH Side Member Price: $284.99 |
| 67 |
518326330 |
LH Side Member Price: $284.99 |
| 68 |
518326355 |
Center Column Support Price: $22.49 |
| 69 |
518326559 |
Rear Member Price: $264.99 |
| 70 |
518326641 |
Rear Radiator Ass'y, 137" Price: $739.99 |
| 73 |
518326656 |
Seal Price: $9.19 |
| 76 |
518326848 |
Upper Column Support Price: $15.99 |
| 78 |
518326937 |
RH Reinforcement, Running Board Price: $27.99 |
| 78 |
518326938 |
LH Reinforcement, Running Board Price: $27.99 |
| 83 |
518326973 |
Front Tunnel Protector Price: $18.49 |
| 86 |
518327105 |
Rear Cap Price: $22.49 |
| 87 |
518327145 |
Sub A Support Price: $79.99 |
| 88 |
518328078 |
E Module Price: $519.99 |
| 89 |
518327565 |
Front Member Price: $349.99 |
| 92 |
518327487 |
Front Suspension Support Price: $289.99 |
| 93 |
415130014 |
ASS'Y BRACE KIT - Call your local BRP dealership This part replaces 518327535. Price: $284.99 |
| 99 |
518327907 |
Front Radiator Ass'y Price: $539.99 |
| 102 |
518328320 |
Cross Member S Module Price: $499.99 |
| 111 |
518328528 |
LH Stirup Price: $169.49 |
| 122 |
518328942 |
RH Stirup Price: $169.49 |
| 126 |
250000767 |
Torx Truss Screw M6 X 12 Price: $2.09 |
| 127 |
210261650 |
Hex. Flange Screw M6 X 16 Price: $1.69 |
| 128 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. Price: $4.29 |
| 129 |
250000779 |
Torx Screw M6 X 1.0 X 18, Scotch Grip Price: $2.19 |

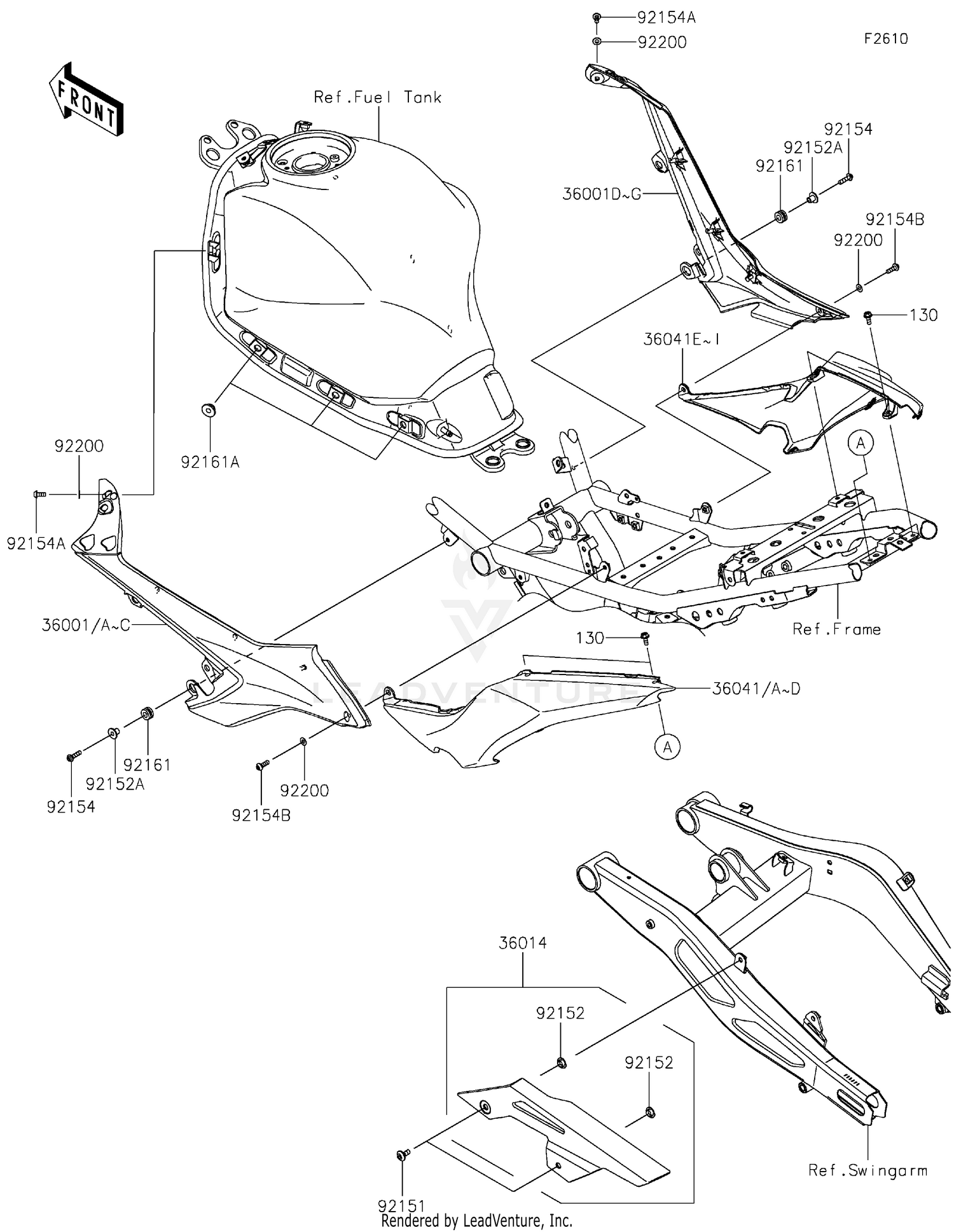

| 36001 |
36001-0650-17L |
COVER-SIDE,LH,C.B.ORANGE Price: $28.92 |
| 36001A |
36001-0650-660 |
COVER-SIDE,LH,M.S.BLACK Price: $28.66 |
| 36001B |
36001-0650-739 |
COVER-SIDE,LH,M.F.S.BLACK Price: $28.66 |
| 36001C |
36001-0650-H8 |
COVER-SIDE,LH,EBONY Price: $28.66 |
| 36001D |
36001-0651-17L |
COVER-SIDE,RH,C.B.ORANGE Price: $28.92 |
| 36001E |
36001-0651-660 |
COVER-SIDE,RH,M.S.BLACK Price: $28.66 |
| 36001F |
36001-0651-739 |
COVER-SIDE,RH,M.F.S.BLACK Price: $28.66 |
| 36001G |
36001-0651-H8 |
COVER-SIDE,RH,EBONY Price: $28.66 |
| 36014 |
36014-0044 |
CASE-CHAIN Price: $17.48 |
| 36041 |
36041-0033-17L |
COVER-TAIL,LH,C.B.ORANGE Price: $76.24 |
| 36041A |
36041-0033-36S |
COVER-TAIL,LH,P.S.GRAY Price: $76.24 |
| 36041B |
36041-0033-54X |
COVER-TAIL,LH,P.B.WHITE Price: $76.24 |
| 36041C |
36041-0033-660 |
COVER-TAIL,LH,M.S.BLACK Price: $75.55 |
| 36041D |
36041-0033-723 |
COVER-TAIL,LH,C.P.BLUE Price: $76.24 |
| 36041E |
36041-0034-17L |
COVER-TAIL,RH,C.B.ORANGE Price: $76.24 |
| 36041F |
36041-0034-36S |
COVER-TAIL,RH,P.S.GRAY Price: $76.24 |
| 36041G |
36041-0034-54X |
COVER-TAIL,RH,P.B.WHITE Price: $76.24 |
| 36041H |
36041-0034-660 |
COVER-TAIL,RH,M.S.BLACK Price: $75.55 |
| 36041I |
36041-0034-723 |
COVER-TAIL,RH,C.P.BLUE Price: $76.24 |
| 92151 |
92151-1654 |
BOLT,SOCKET,6X14 Price: $1.83 |
| 92152 |
92152-0909 |
COLLAR,8.8X11.2X4 Price: $5.65 |
| 92152A |
92152-1592 |
COLLAR Price: $3.02 |
| 92154 |
92154-0210 |
BOLT,SOCKET,5X20 Price: $2.12 |
| 92154A |
92154-1421 |
BOLT,SOCKET,5X12 Price: $0.95 |
| 92154B |
92154-1701 |
BOLT,SOCKET,5X16 Price: $1.19 |
| 92161 |
92161-0685 |
DAMPER,8X16X8.6 Price: $6.61 |
| 92161A |
92161-1937 |
DAMPER,6X20X7.5 Price: $1.94 |
| 92200 |
92200-0006 |
WASHER,NYLONE,5.3X11.5X0.5 Price: $1.86 |
