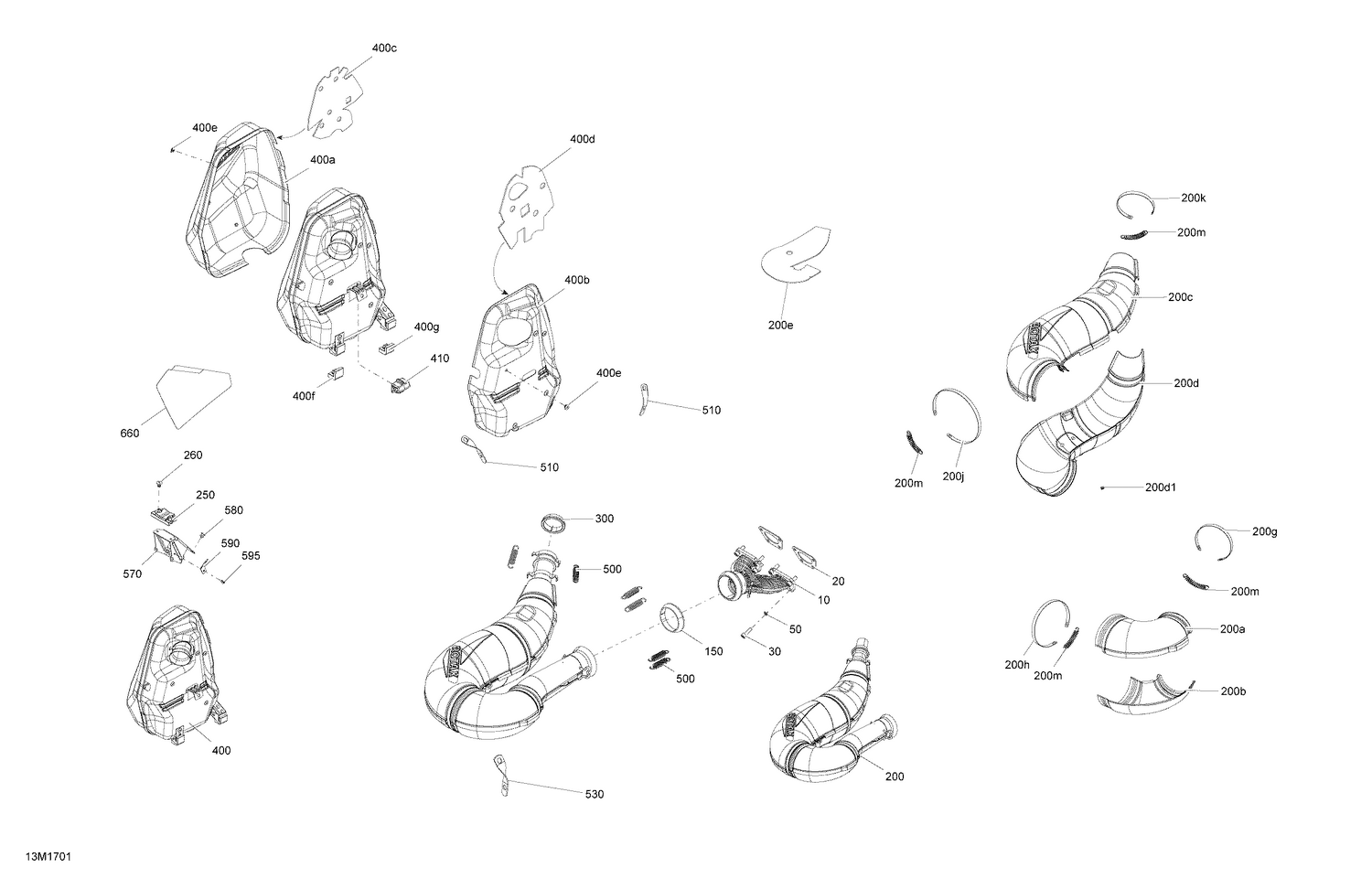

01- Exhaust System
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 420673421 | Exhaust Manifold This part replaces 420673420. |
| 20 | 420850552 | Gasket |
| 30 | 250001077 | Socket Head Screw Scotch Grip M6 X 20 This part replaces 514054626. |
| 50 | 514053953 | Washer |
| 150 | 514053487 | Exhaust Gasket |
| 200a | 514054992 | Front Upper Half Enveloppe |
| 200b | 514054993 | Front Lower Half Enveloppe |
| 200d1 | 293150091 | Henrob Rivet |
| 200e | 514054487 | Insulating Wool |
| 200g | 514054408 | Retaining Strap |
| 200h | 514054409 | Retaining Strap |
| 200j | 514054410 | Retaining Strap |
| 200k | 514053499 | Retaining Strap |
| 200m | 514053643 | Spring |
| 300 | 514054174 | Exhaust Gasket |
| 400a | 514054985 | RH Deflector |
| 400b | 514054967 | LH Deflector |
| 400c | 514054711 | RH Insulating Wool |
| 400d | 514054299 | LH Insulating Wool |
| 400e | 390910000 | Pop Rivet 3/16” |
| 400f | 514054274 | Lower Stopper |
| 400g | 514054496 | Lower Stopper |
| 410 | 514054606 | Upper Stopper |
| 500 | 415107100 | Spring |
| 510 | 514054974 | Spring Bracket, 5mm hole |
| 520 | 293150144 | Stavex Rivet |
| 530 | 514054975 | Spring Bracket, 8.0mm hole |
| 540 | 390909200 | Avex Rivet |
| 660 | 514054987 | Heat Shield (Rectangle) |
| 700 | 514054870 | Temperature Sensor |
| 720 | 219704425 | Tubing 6 Mm 3000Mm Long |
| 730 | 293750001 | Tie Wrap 94 mm |
