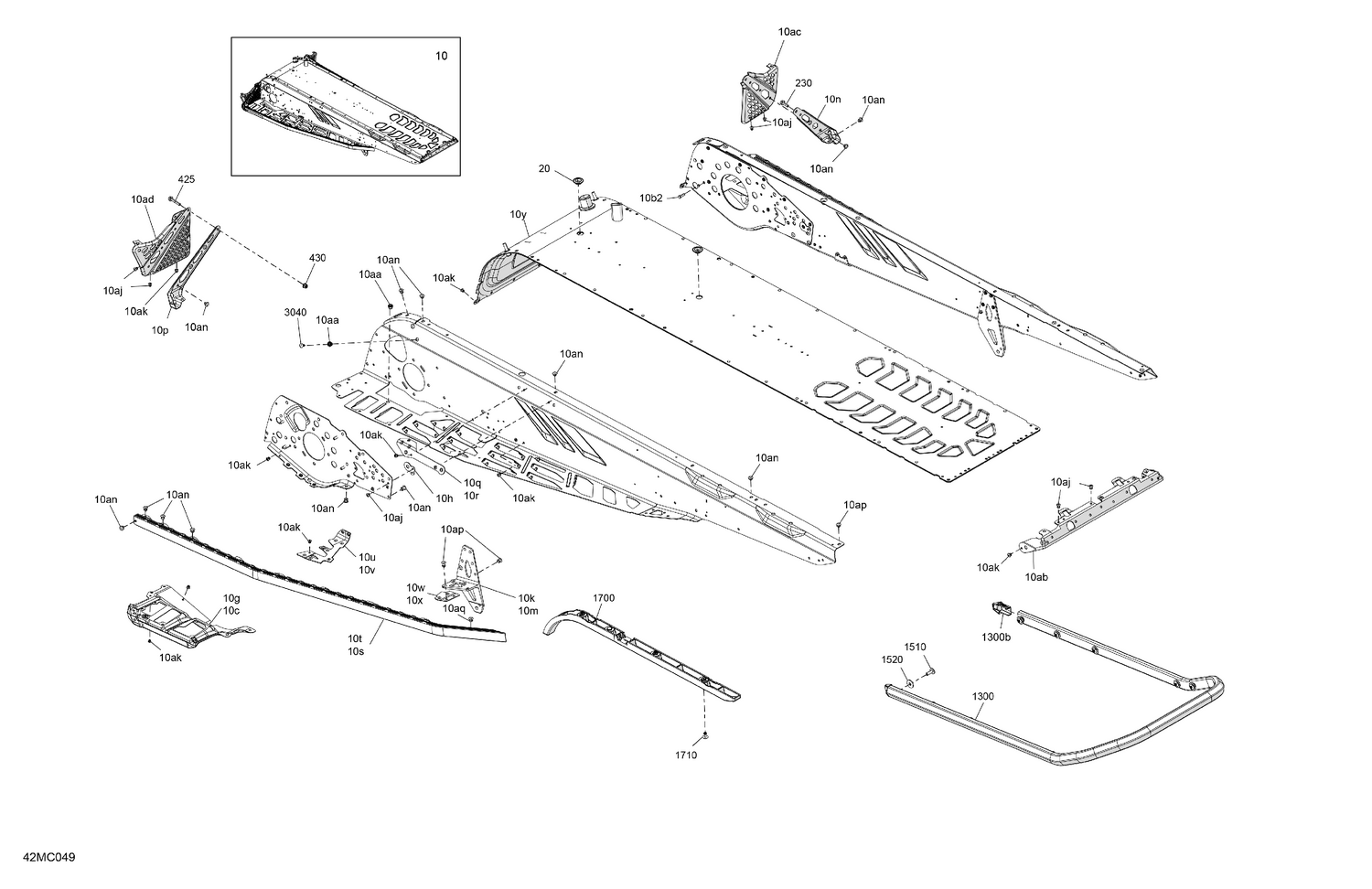

06- Frame - System - Rear Section
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 10aa | 605636003 | Clinch Nut M6 Hexsert |
| 10ab | 518328990 | Rear Cap |
| 10ac | 518333006 | RH Footrest |
| 10ad | 518333007 | LH Footrest |
| 10aj | 390909100 | Avex Rivet |
| 10ak | 390909200 | Avex Rivet |
| 10an | 293150265 | Rivet Ornit 6,5 X 12.5 |
| 10ap | 293150266 | Ornit Rivet 6,5 X 14.5 |
| 10aq | 293150267 | Rivet Ornit 6,5 X 16.5 |
| 10b2 | 250300027 | Clinch Stud M6 X 20 |
| 10c | 518331523 | Deep Black, LH Footrest Reinforcement |
| 10g | 518330738 | Deep Black, RH Footrest Reinforcement |
| 10h | 518335959 | Front Suspension Arm Reinforcement This part replaces 518329659. |
| 10k | 518329632 | LH Bracket |
| 10m | 518329633 | RH Bracket This part replaces 518329633. |
| 10n | 518334507 | Stirrup Reinforcement |
| 10p | 518332924 | Deep Black, LH Chassis Reinforcement |
| 10q | 518331744 | LH Under Chassis Reinforcement |
| 10r | 518331745 | RH Under Chassis Reinforcement |
| 10s | 518328451 | RH Roller |
| 10t | 518328452 | LH Roller |
| 10u | 518332296 | LH Footrest Reinforcement |
| 10v | 518332297 | RH Footrest Reinforcement |
| 10w | 518329088 | LH Reinforcement Plate |
| 10x | 518329089 | RH Reinforcement Plate |
| 10y | 518334489 | Radiator Tunnel 146 |
| 20 | 293730052 | Black, Plug |
| 230 | 207562056 | Hex. Flange Screw M6 X 20 |
| 425 | 207562056 | Hex. Flange Screw M6 X 20 |
| 430 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 1300b | 520001612 | Cap |
| 1510 | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 1520 | 224061201 | Flat Washer |
| 1700 | 518329982 | Front Protector |
| 1710 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
